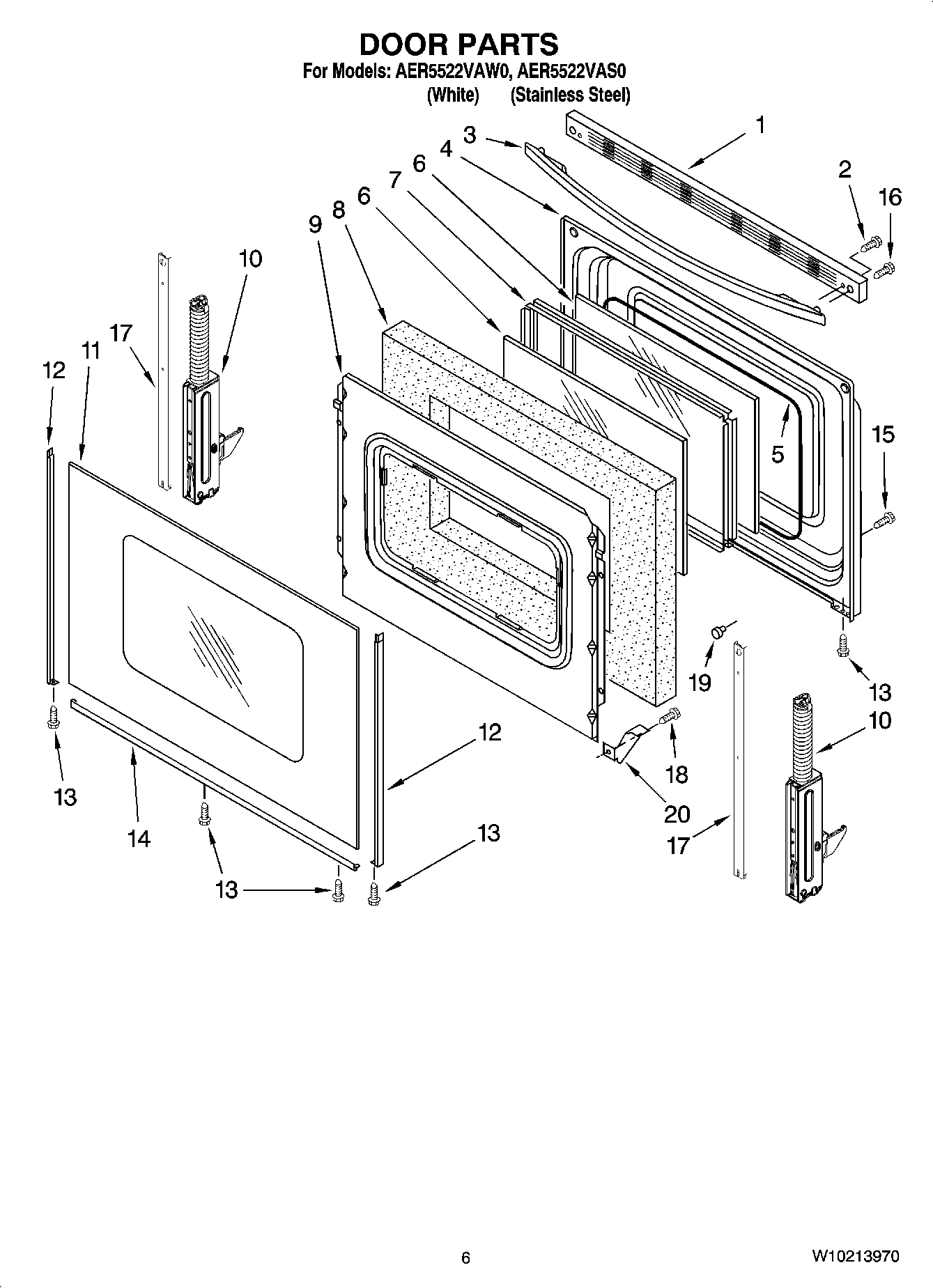

AER5522VAS0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	SCREW
NI	ACCESSORY PARTS, CLEANER, GLASS
NI	Wire, Brown 14 Ga. 200 c
NI	Wire, Yellow 14 Ga. 150 c
NI	WIRING HARNESS PARTS, CLIP, WIRE GROUND
NI	Wire, Orange 14 Ga. 150 c
NI	Wire, Green 14 Ga. 150 c
NI	MAY W10084660
NI	Wire, Brown 14 Ga. 150 c
NI	Wire, Blue 14 Ga. 150 c
NI	REFINISHING MATERIAL (GREASE)
NI	Wire, Black 12 Ga. 150 c
NI	WIRE, 25â€™ ROLL (RED 14 GA.)
NI	REFINISHING MATERIAL (KIT, PORCELAIN REPAIR (WHITE))
NI	MAY 311227
NI	Wire, Red 14 Ga. 200 c
NI	MAY W10114335
NI	MAY W10017440
NI	SCREW
NI	PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE))
NI	INSULATION (2-1/2" X 22" X 120")
NI	ACCESSORY PARTS, ALUMINUM FOIL
NI	REFINISHING MATERIAL, OVEN LINER TOUCH UP PAINT
NI	INSULATION (1-1/2" X 24" X 120")
NI	PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	ACCESSORY PARTS, GRID, BROILER PAN AND
NI	PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
NI	Harness, Wire (Surface Unit)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
1	Trim, Top (Black)
1	MAY W10144869
2	SCREW
3	MAY W10144889
3	MAY W10144888
4	LINER, DOOR
5	MAY 8522414
6	GLASS, INNER
7	MAY 3186289
8	MAY 8272618
9	RETAINER, INSULATION
10	Hinge, Door
11	Glass, Outer (Black)
11	Glass, Outer (White)
12	TRIM, SIDE (WHITE (LEFT))
12	TRIM, SIDE (WHITE (RIGHT))
12	TRIM, SIDE (BLACK, RIGHT HAND)
12	TRIM, SIDE (BLACK, LEFT HAND)
13	MAY 3196160
14	TRIM, LOWER (BLACK)
14	TRIM, LOWER (WHITE)
15	SCREW
16	MAY W10031780
17	STRAP, DOOR
18	SCREW
19	BUMPER, SIDE
20	CLIP, PANEL
