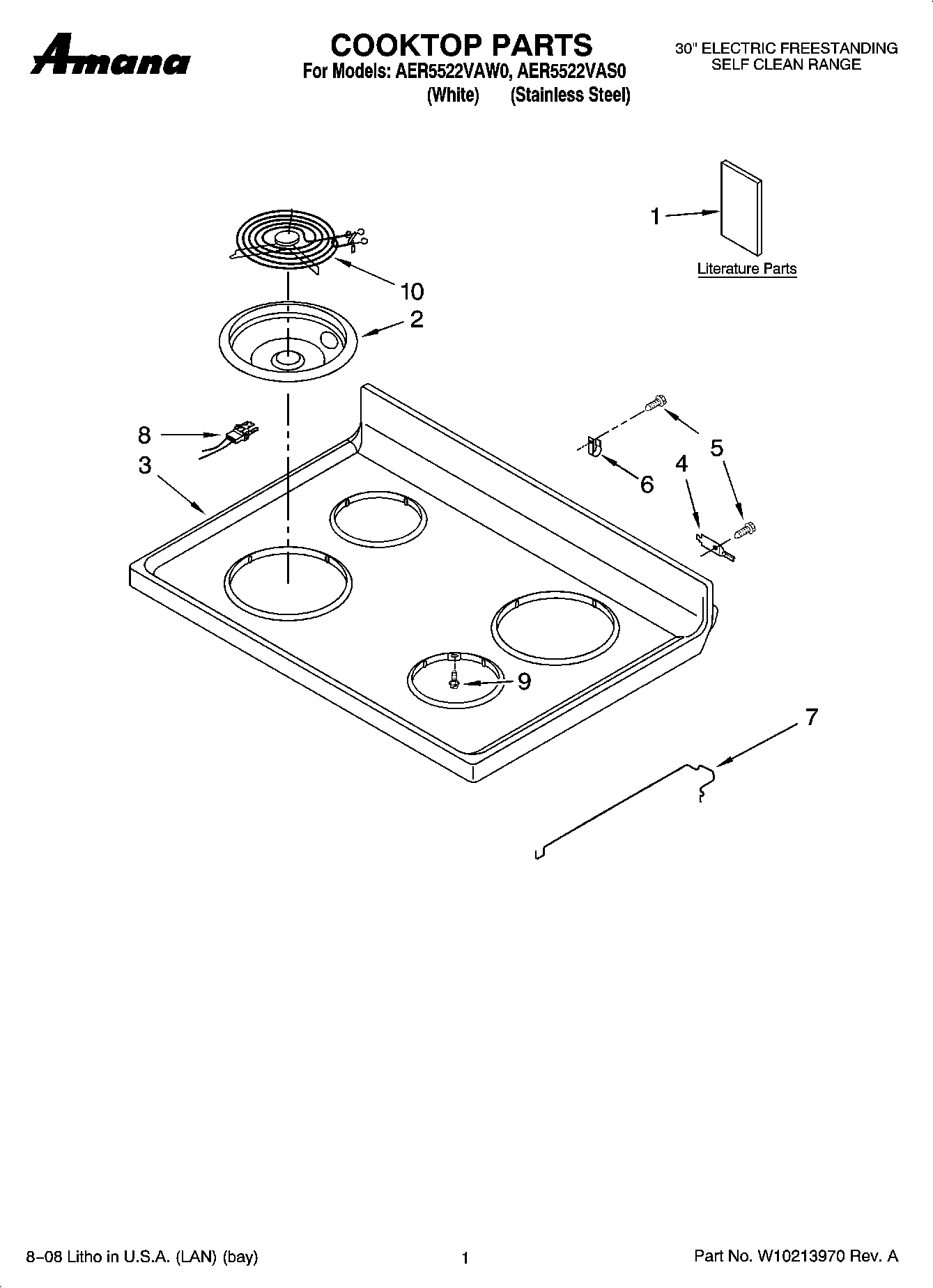

AER5522VAW0 01 – COOKTOP PARTS

Products

PositionProduct
1MAY W10196163
1Template, Anti-Tip (English/French)
1MAY W10198623
1Installation Instructions
1TEMPLATE, ANTI-TIP (ENGLISH/FRENCH)
1TIPS, SAFE COOKING (ENGLISH)
2BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
3COOKTOP (WHITE)
3COOKTOP (BLACK)
4HINGE, COOKTOP
5SCREW
6Strain Relief
7ROD, SUPPORT
8RECEPTACLE, ELEMENT
9SCREW
10ELEMENT, SURFACE (6“ ELEMENT)
10ELEMENT, SURFACE (8“ ELEMENT)
