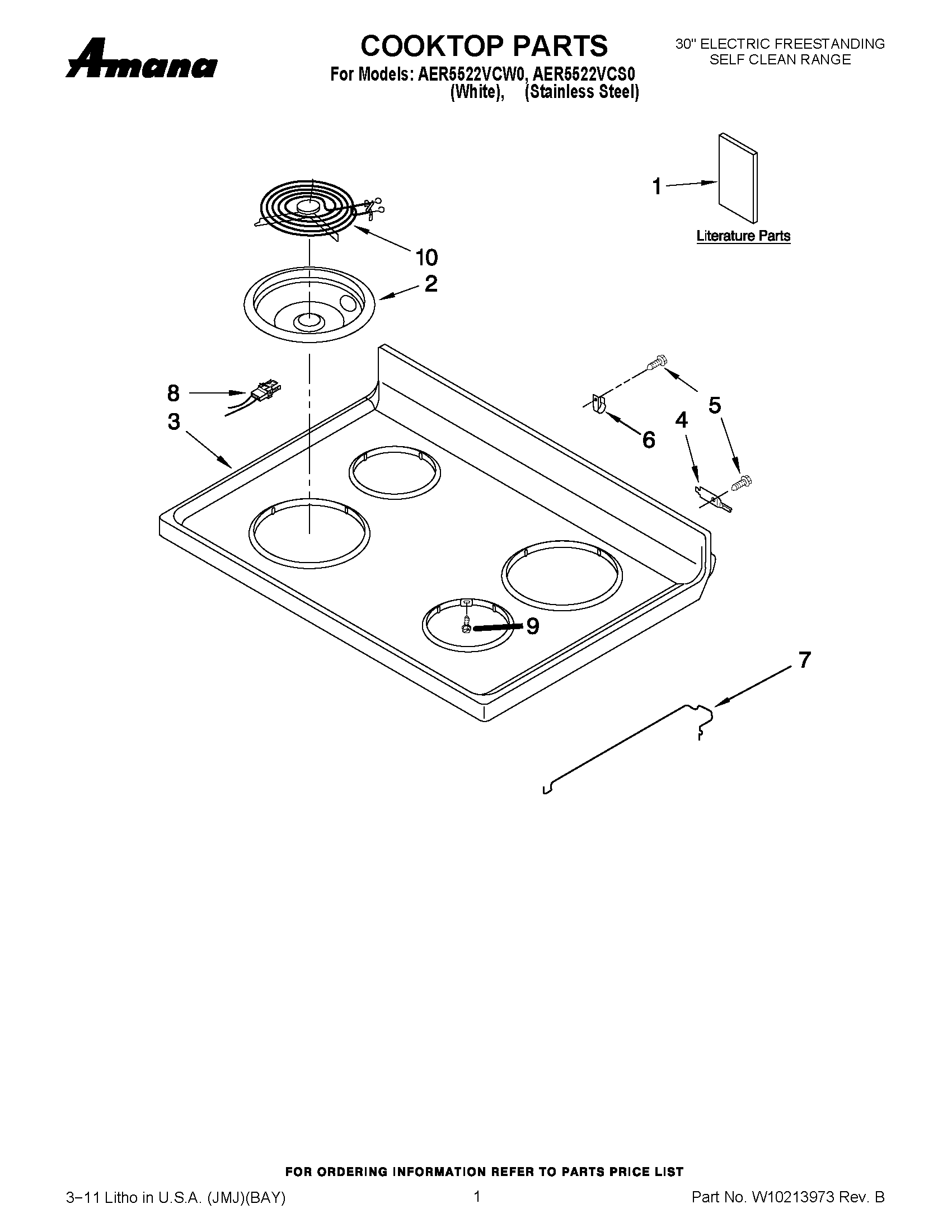

AER5522VCS0 01 – COOKTOP PARTS

Products

Position	Product
1	MAY W10198629
1	INSTRUCTIONS, INSTALLATION
1	Template, Anti-Tip (English/French)
1	Owners Manual
1	TECH SHEET
1	TEMPLATE, ANTI-TIP (ENGLISH/FRENCH)
1	TIPS, SAFE COOKING (FRENCH)
1	TIPS, SAFE COOKING (ENGLISH)
2	BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
2	BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
3	COOKTOP (WHITE)
3	COOKTOP (BLACK)
4	HINGE, COOKTOP
5	SCREW
6	Strain Relief
7	ROD, SUPPORT
8	RECEPTACLE, ELEMENT
9	SCREW
10	ELEMENT, SURFACE (6“ ELEMENT)
10	ELEMENT, SURFACE (8“ ELEMENT)
