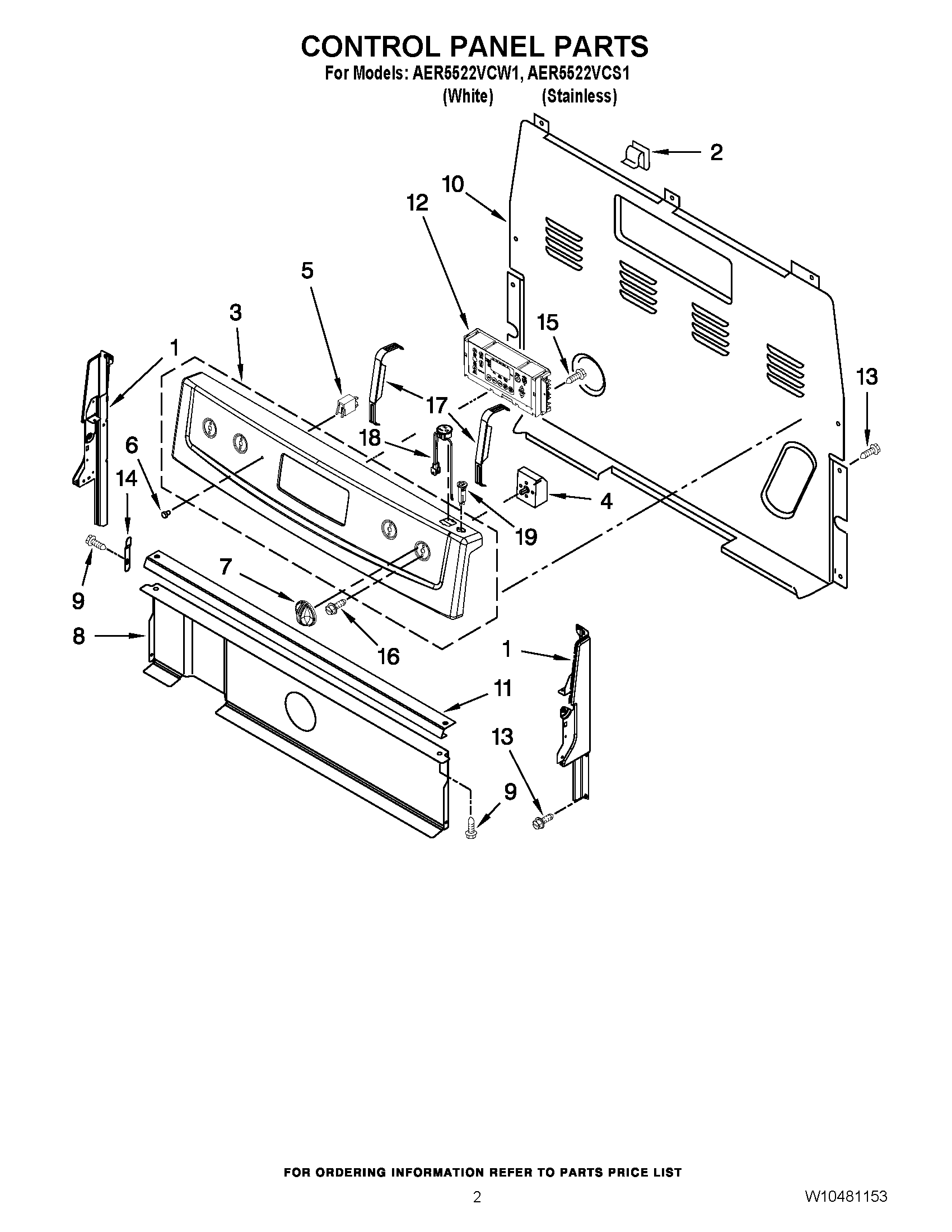

AER5522VCS1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
1ENDCAP (WHITE (RIGHT))
2MAY 8273564
3MAY W10182890
3MAY W10170029
4SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
5MAY 8523265
6MAY 3196068
7KNOB, INFINITE (WHITE)
7KNOB, INFINITE (BLACK)
8SHIELD, HEAT
9SCREW
10COVER, UPPER REAR
11Bracket, Console
12CONTROL, RANGE (WHITE)
12CONTROL, RANGE (BLACK)
13SCREW
14CLIP, SPRING
15SCREW
16SCREW
17BRACKET, MOUNTING, EOC
18RECEPTACLE (BLACK)
18RECEPTACLE (WHITE)
19BREAKER, CIRCUIT (BLACK)
19BREAKER, CIRCUIT (WHITE)
