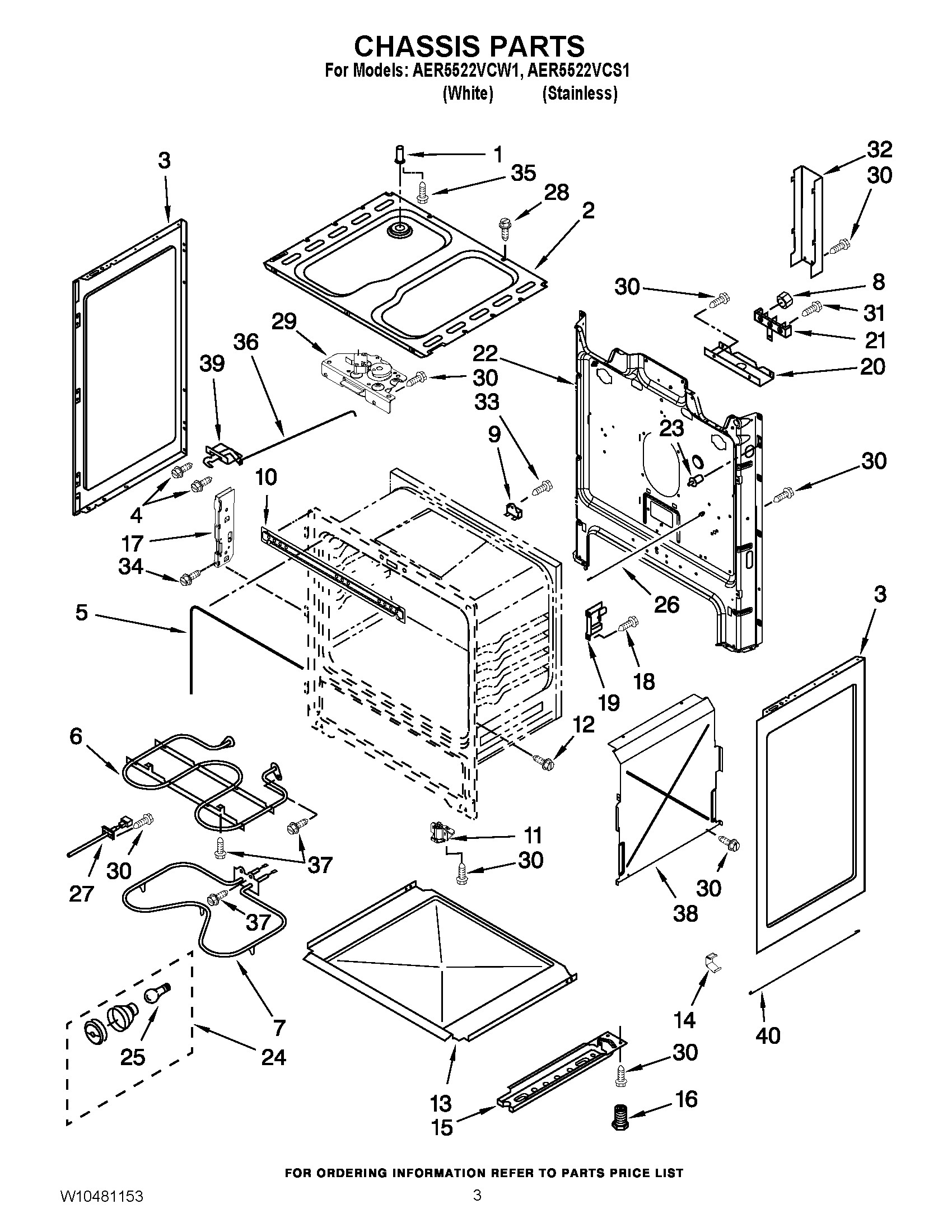

AER5522VCS1 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	MAY W10208653
1	VENT TUBE
2	BOX, BURNER
3	MAY W10322769
3	MAY W10322770
4	SCREW
5	MAY 8522416
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	WP7103P027-60 Whirlpool Nut
9	FUSE, THERMAL
10	Guard, Wire
11	ASSEMBLY, FRONT FOOT
12	SCREW
13	RETAINER, INSULATION
14	CLIP, PANEL
15	ASSEMBLY, BASE RAIL (LEFT)
15	ASSEMBLY, BASE RAIL (RIGHT)
16	FOOT, LEVELING
17	RECEIVER, HINGE
18	SCREW
19	BRACKET, OVEN SUPPORT
20	BRACKET, SERVICE
21	BLOCK, TERMINAL
22	BACK, MAIN
23	MAY 9757262
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
26	ROD, DOOR SWITCH
27	SENSOR, OVEN
28	SCREW
29	ASSEMBLY, DOOR LATCH (REAR)
30	SCREW
31	SCREW
32	COVER, TERMINAL BLOCK
33	SCREW
34	MAY W10031780
35	SCREW
36	ROD, LATCH
37	SCREW
38	RETAINER, INSULATION
39	ASSEMBLY, DOOR LATCH (FRONT)
40	ROD, INSULATION RETAINER
