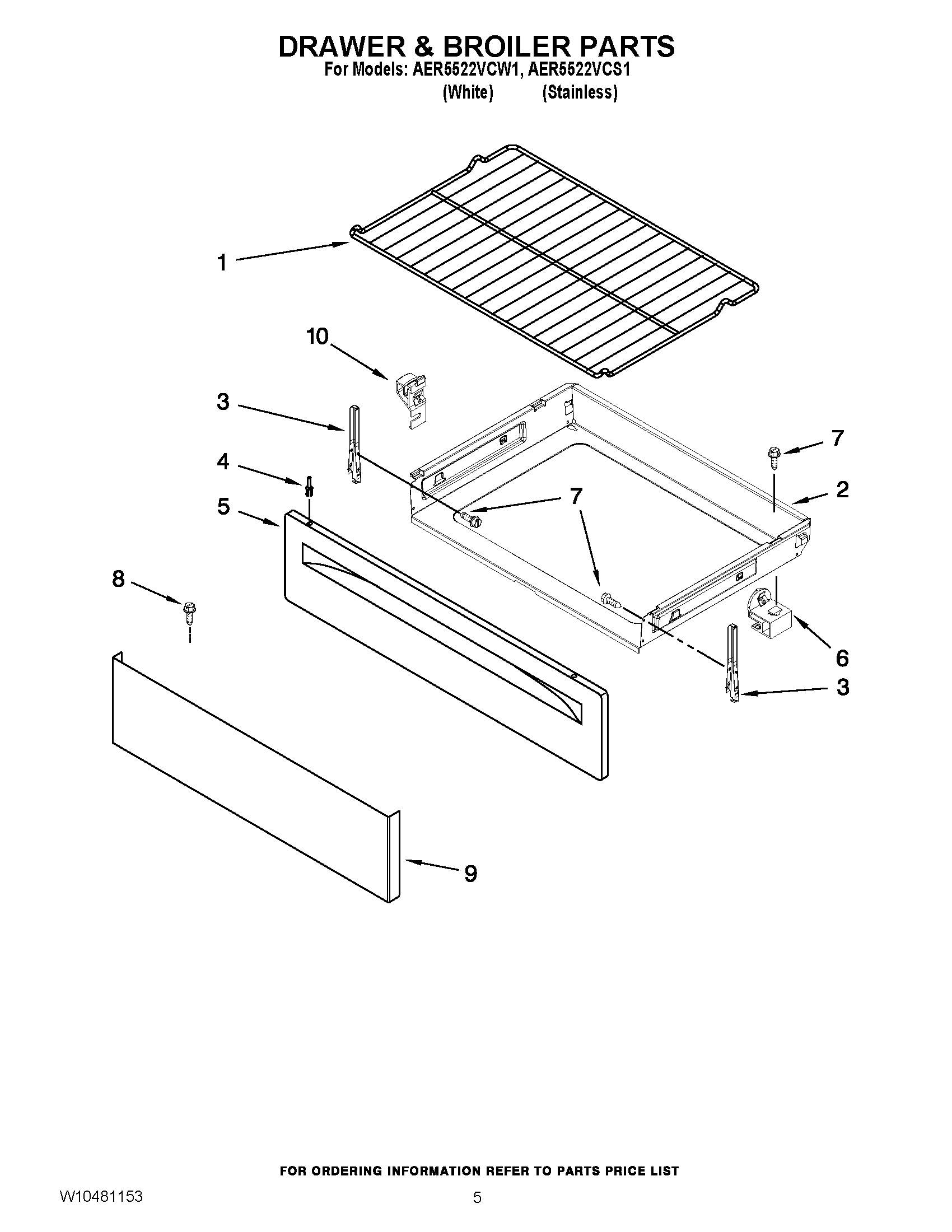

AER5522VCS1 04 – DRAWER & BROILER PARTS

AER5522VCS1 04 – DRAWER & BROILER PARTS

Written by

in

AER5522VCS1 04 – DRAWER & BROILER PARTS

Products

Position	Product
1	RACK, OVEN
2	MAY W10300032
3	BRACKET, MOUNTING DRAWER
4	RIVET, PUSH (WHITE)
5	PANEL, DRAWER FRONT (WHITE)
6	GLIDE, REAR DRAWER
7	SCREW
8	SCREW
9	PANEL, DRAWER (SS MODEL)
10	GLIDE, DRAWER
