AER5522VCS1 05 – DOOR PARTS
Written by
in

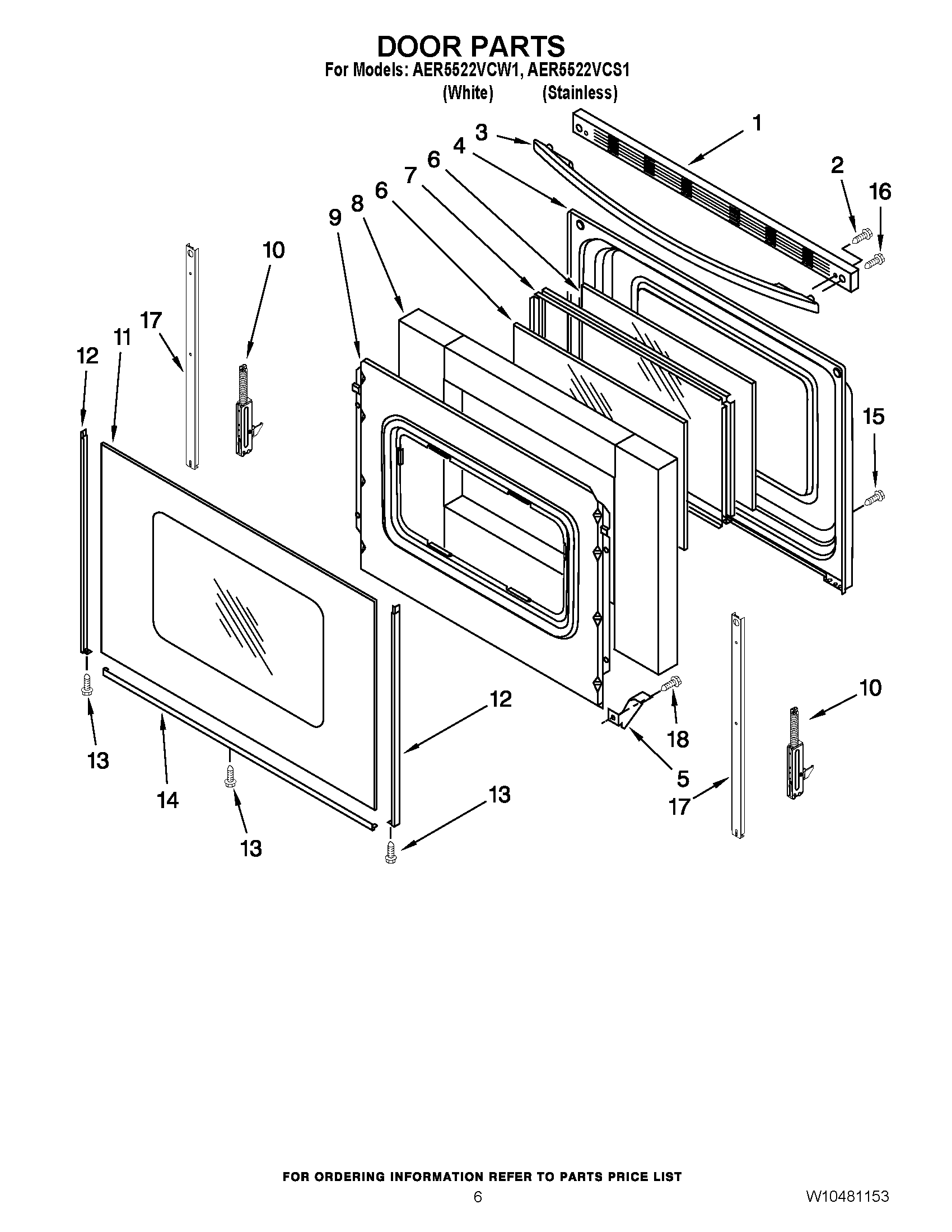

AER5522VCS1 05 – DOOR PARTS
Products
Position
Product
1
TRIM, TOP (BLACK)
1
TRIM, TOP (WHITE)
2
MAY W10178143
3
MAY W10144888
3
MAY W10144890
4
LINER, DOOR
5
CLIP, PANEL
6
GLASS, INNER
7
FRAME, GLASS
8
INSULATION, DOOR STRIP
9
RETAINER, INSULATION
10
HINGE, ACTIVE (WITH SPRING)
10
HINGE, DOOR (PASSIVE)
11
GLASS, OUTER (STAINLESS)
11
Glass, Outer (White)
12
TRIM, SIDE (BLACK, LEFT HAND)
12
TRIM, SIDE (WHITE (LEFT))
12
TRIM, SIDE (WHITE (RIGHT))
12
TRIM, SIDE (BLACK, RIGHT HAND)
13
MAY 3196160
14
TRIM, LOWER (WHITE)
15
SCREW
16
MAY W10031780
17
STRAP, DOOR
18
SCREW
←
