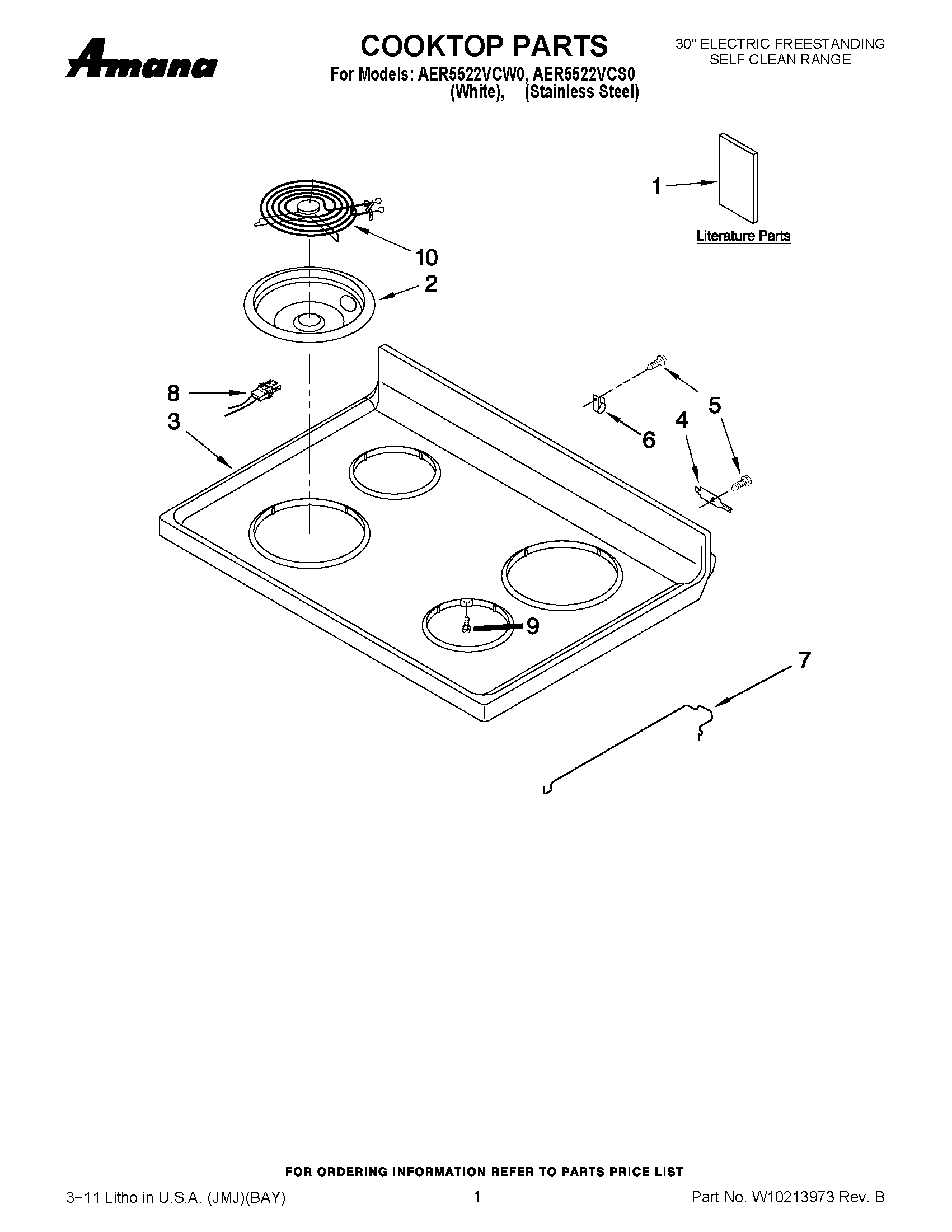

AER5522VCW0 01 – COOKTOP PARTS

AER5522VCW0 01 – COOKTOP PARTS

Written by

in

AER5522VCW0 01 – COOKTOP PARTS

Products

PositionProduct
1MAY W10198629
1INSTRUCTIONS, INSTALLATION
1Template, Anti-Tip (English/French)
1Owners Manual
1TECH SHEET
1TEMPLATE, ANTI-TIP (ENGLISH/FRENCH)
1TIPS, SAFE COOKING (FRENCH)
1TIPS, SAFE COOKING (ENGLISH)
2BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
3COOKTOP (WHITE)
3COOKTOP (BLACK)
4HINGE, COOKTOP
5SCREW
6Strain Relief
7ROD, SUPPORT
8RECEPTACLE, ELEMENT
9SCREW
10ELEMENT, SURFACE (6“ ELEMENT)
10ELEMENT, SURFACE (8“ ELEMENT)
