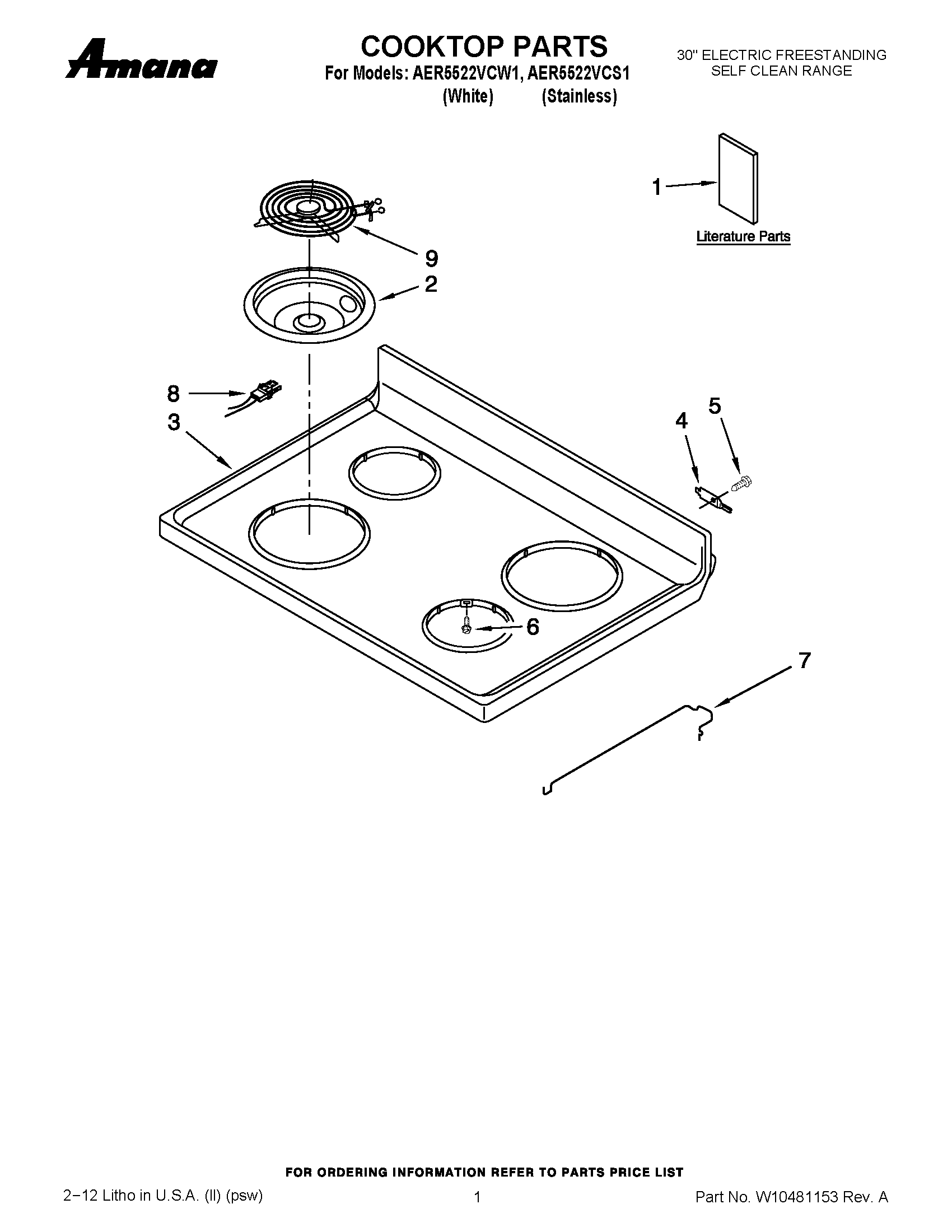

AER5522VCW1 01 – COOKTOP PARTS

AER5522VCW1 01 – COOKTOP PARTS

Written by

in

AER5522VCW1 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1SHEET, TECH (FRENCH)
1SHEET, TECH (ENGLISH)
1MAY W10403812
1MAY W10419380
1TIPS, SAFE COOKING (FRENCH)
2BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
3COOKTOP (BLACK)
3COOKTOP (WHITE)
4HINGE, COOKTOP
5SCREW
6SCREW
7ROD, SUPPORT
8RECEPTACLE, ELMNT
9ELEMENT (8“)
9ELEMENT (6“)
