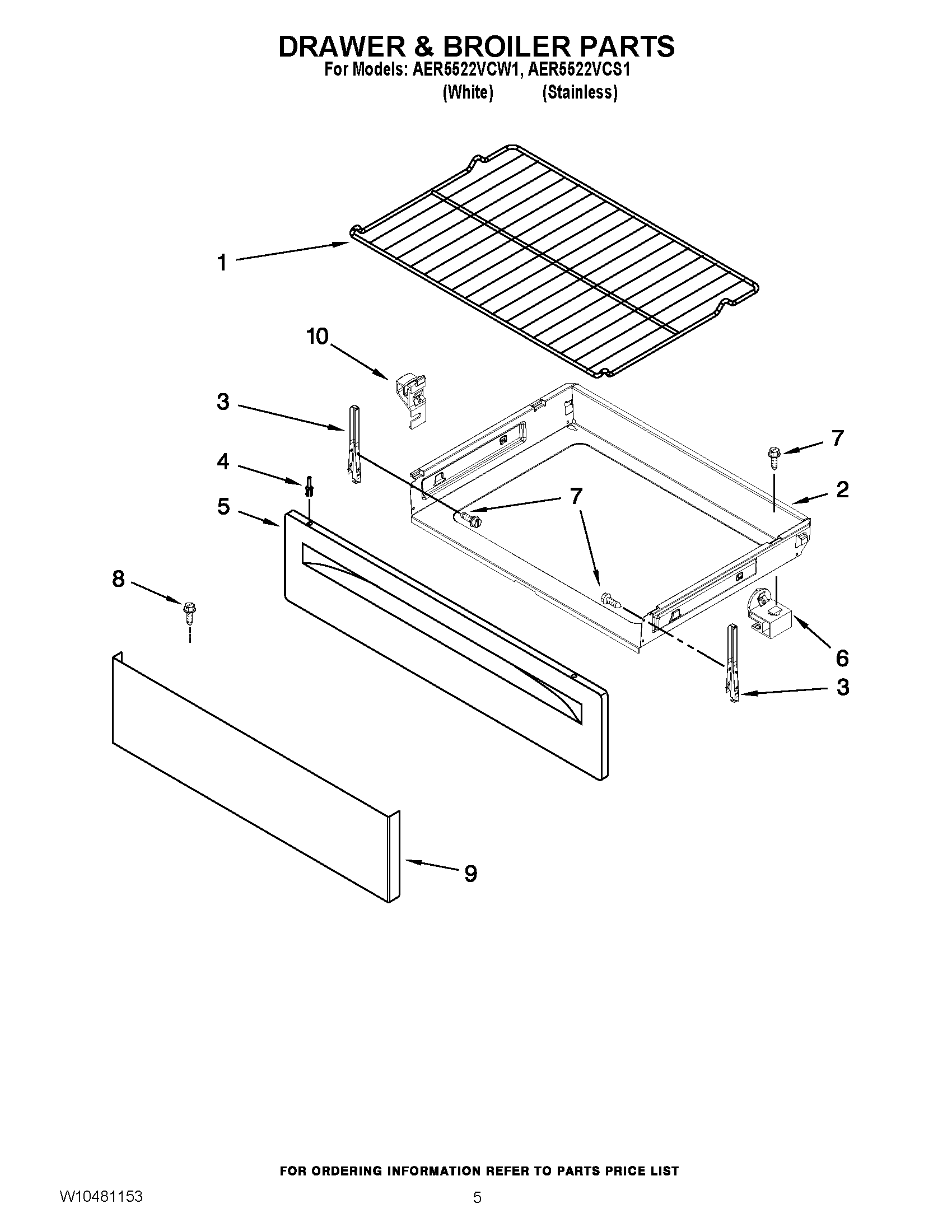

AER5522VCW1 04 – DRAWER & BROILER PARTS

AER5522VCW1 04 – DRAWER & BROILER PARTS

Written by

in

AER5522VCW1 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1RACK, OVEN
2MAY W10300032
3BRACKET, MOUNTING DRAWER
4RIVET, PUSH (WHITE)
5PANEL, DRAWER FRONT (WHITE)
6GLIDE, REAR DRAWER
7SCREW
8SCREW
9PANEL, DRAWER (SS MODEL)
10GLIDE, DRAWER
