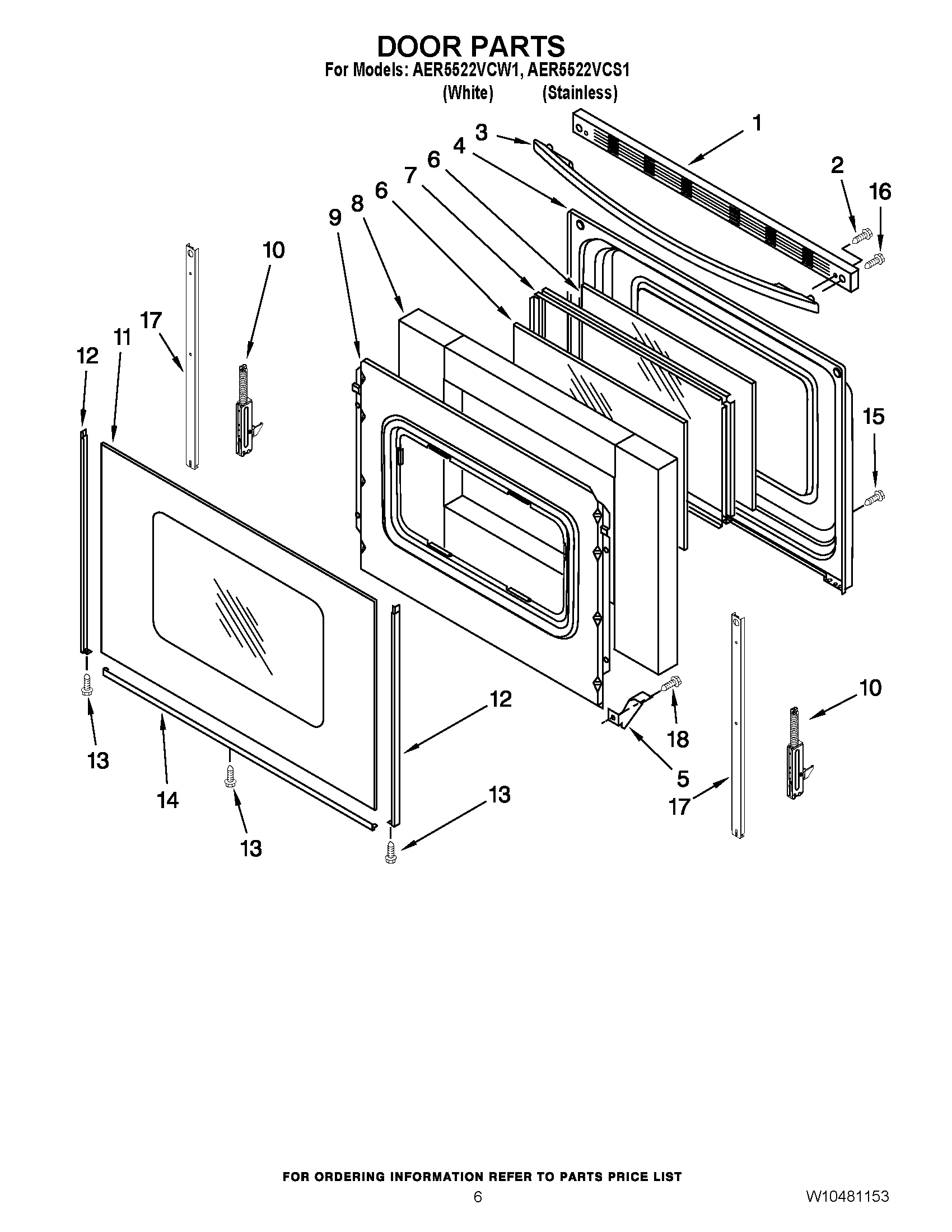

AER5522VCW1 05 – DOOR PARTS

AER5522VCW1 05 – DOOR PARTS

Written by

in

AER5522VCW1 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1TRIM, TOP (WHITE)
2MAY W10178143
3MAY W10144888
3MAY W10144890
4LINER, DOOR
5CLIP, PANEL
6GLASS, INNER
7FRAME, GLASS
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10HINGE, ACTIVE (WITH SPRING)
10HINGE, DOOR (PASSIVE)
11GLASS, OUTER (STAINLESS)
11Glass, Outer (White)
12TRIM, SIDE (BLACK, LEFT HAND)
12TRIM, SIDE (WHITE (LEFT))
12TRIM, SIDE (WHITE (RIGHT))
12TRIM, SIDE (BLACK, RIGHT HAND)
13MAY 3196160
14TRIM, LOWER (WHITE)
15SCREW
16MAY W10031780
17STRAP, DOOR
18SCREW
