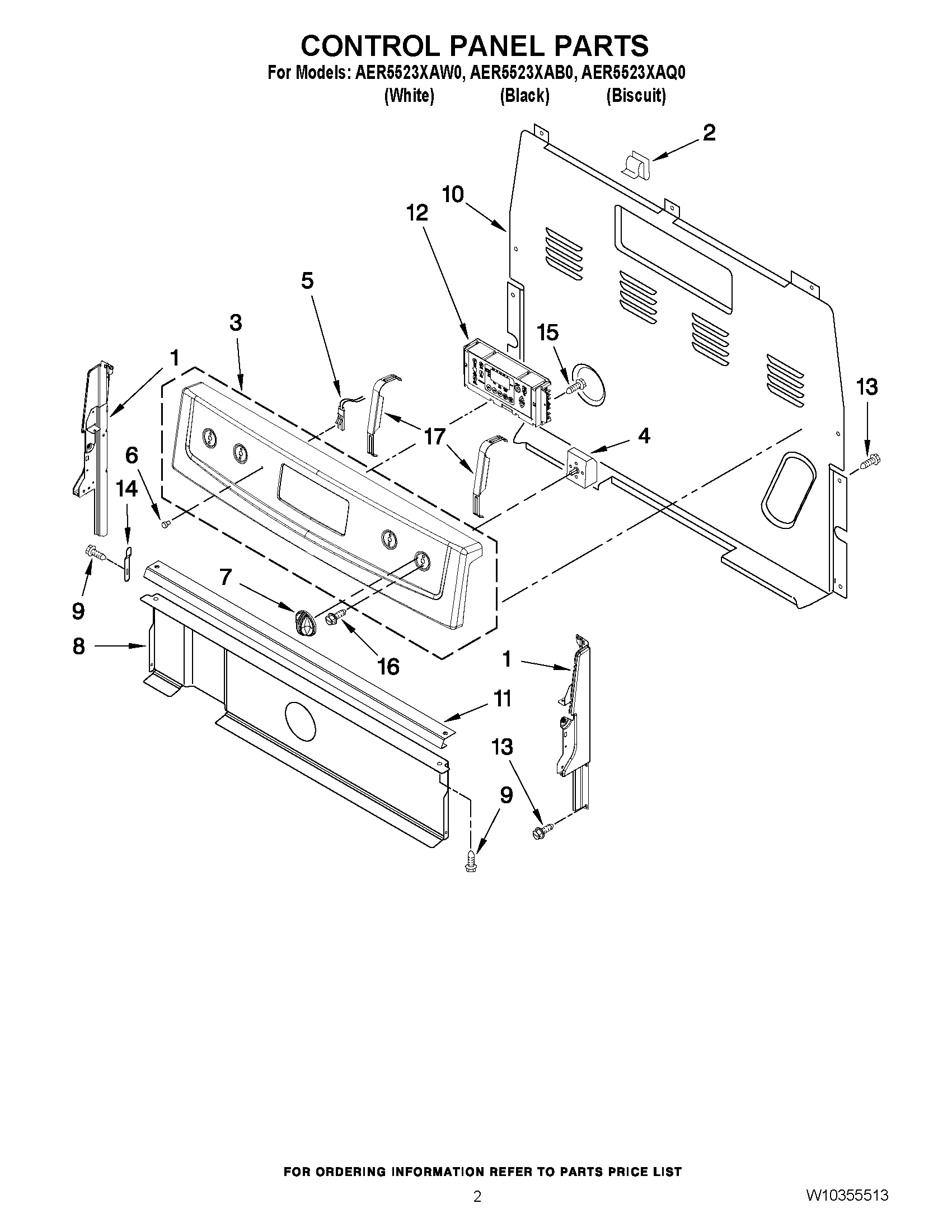

AER5523XAB0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10184435
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	MAY W10184436
1	ENDCAP (BLACK (RIGHT))
1	ENDCAP (WHITE (RIGHT))
2	MAY 8273564
3	MAY W10170009
3	MAY W10320991
3	MAY W10320994
4	SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
4	SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
5	MAY 8523265
6	MAY 3196068
7	KNOB, INFINITE (WHITE)
7	KNOB, INFINITE (BLACK)
7	MAY W10119707
8	MAY 8053912
9	Screw (White)
10	COVER, UPPER REAR
11	Bracket, Console
12	CONTROL, RANGE (WHITE)
12	CONTROL, RANGE (BLACK)
12	MAY W10320992
13	SCREW
14	CLIP, SPRING
15	SCREW
16	SCREW
17	BRACKET, MOUNTING, EOC
