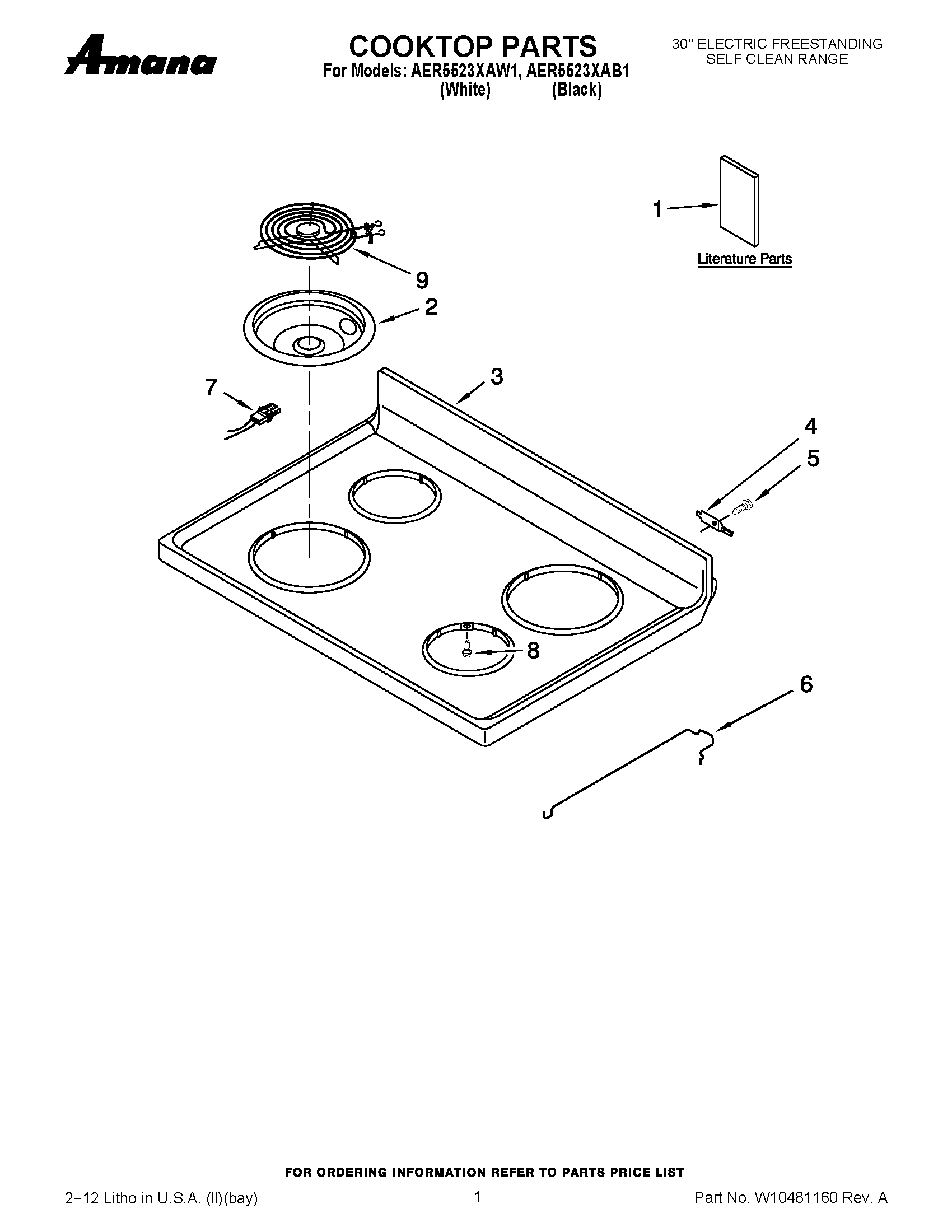

AER5523XAB1 01 – COOKTOP PARTS

Written by

Products

Position	Product
1	MAY W10403811
1	TIPS, SAFE COOKING (ENGLISH)
1	SHEET, TECH (ENGLISH)
1	MAY W10419394
2	BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
2	BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
3	COOKTOP (WHITE)
3	COOKTOP (BLACK)
4	HINGE, COOKTOP
5	SCREW
6	ROD, SUPPORT
7	RECEPTACLE, ELMNT
8	SCREW
9	ELEMENT (6“)
9	ELEMENT (8“)
