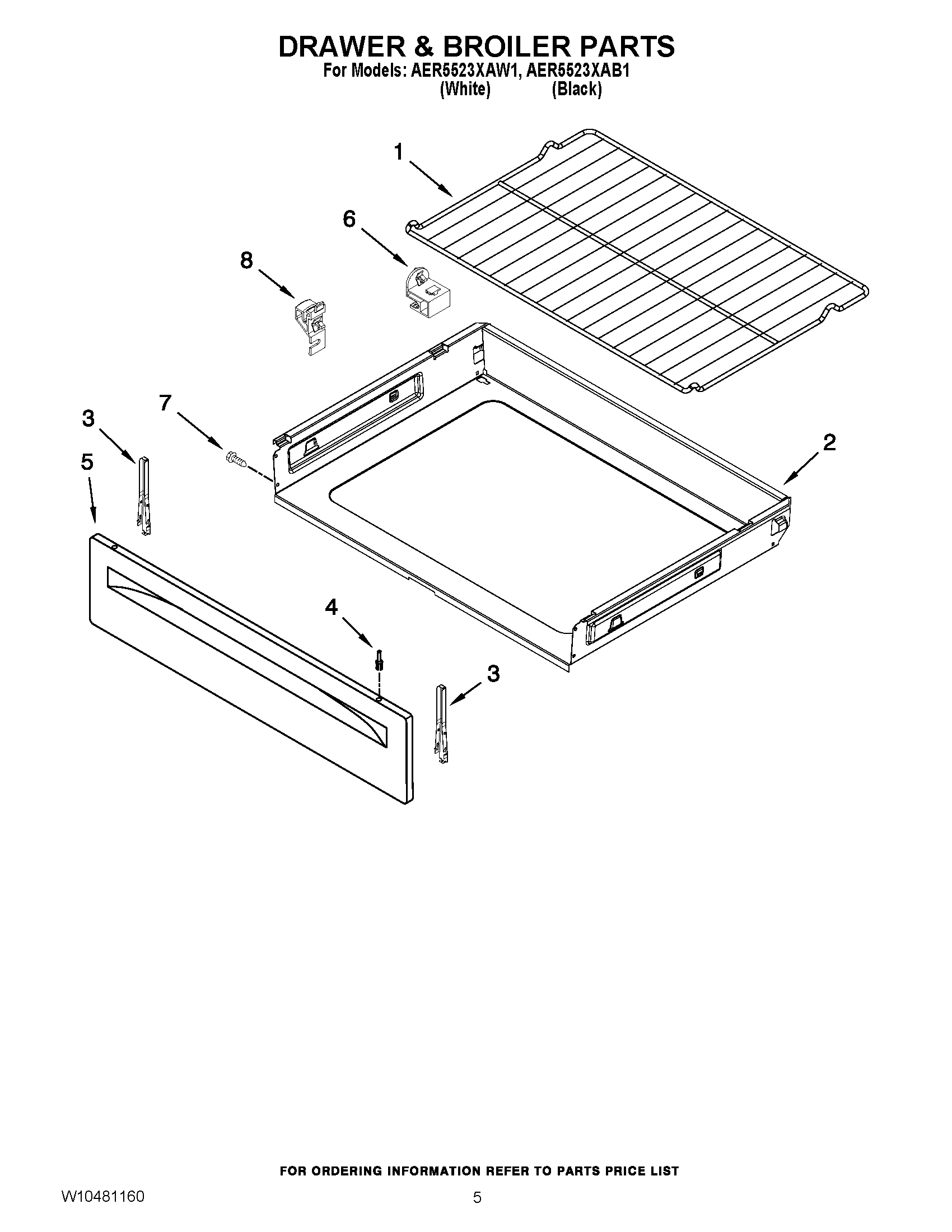

AER5523XAB1 04 – DRAWER & BROILER PARTS

AER5523XAB1 04 – DRAWER & BROILER PARTS

Written by

in

AER5523XAB1 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1RACK, OVEN
2MAY W10300032
3BRACKET, MOUNTING DRAWER
4RIVET, PUSH (BLACK)
4RIVET, PUSH (WHITE)
5PANEL, DRAWER FRONT (WHITE)
5PANEL, DRAWER FRONT (BLACK)
6GLIDE, REAR DRAWER
7SCREW
8GLIDE, DRAWER
