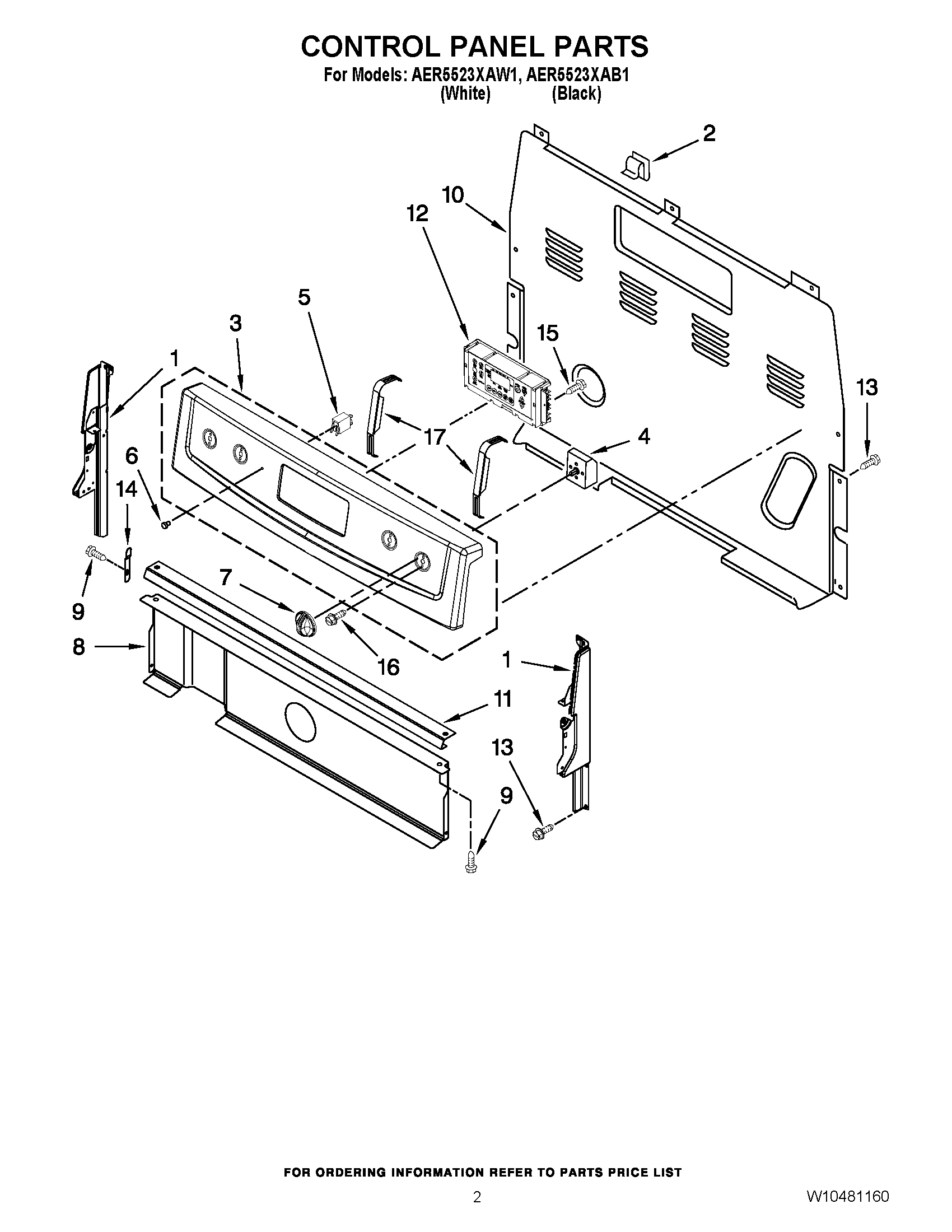

AER5523XAW1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (WHITE (RIGHT))
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	ENDCAP (BLACK (RIGHT))
2	MAY 8273564
3	MAY W10320994
3	MAY W10170009
4	SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
4	SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
5	MAY 8523265
6	MAY 3196068
7	KNOB, INFINITE (BLACK)
7	KNOB, INFINITE (WHITE)
8	SHIELD, HEAT
9	SCREW
10	COVER, UPPER REAR
11	Bracket, Console
12	MAY W10363663
12	MAY W10363664
13	SCREW
14	CLIP, SPRING
15	SCREW
16	SCREW
17	BRACKET, MOUNTING, EOC
