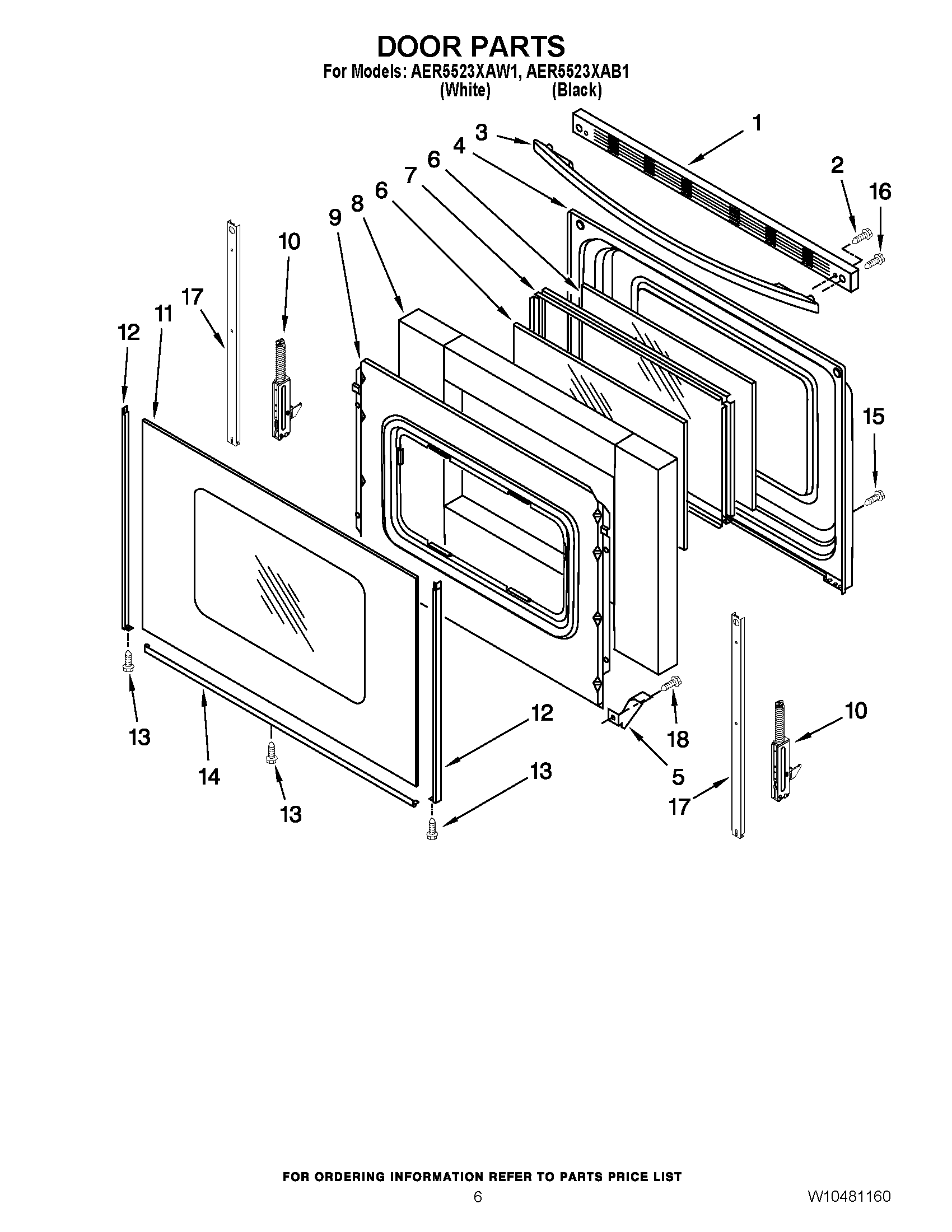

AER5523XAW1 05 – DOOR PARTSadmin2025-04-26T08:55:56+00:00AER5523XAW1 05 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | TRIM, TOP (BLACK) |
| 1 | MAY W10016370 |
| 2 | SCREW |
| 3 | MAY W10202217 |
| 3 | HANDLE, DOOR (WHITE) |
| 4 | LINER-DOOR |
| 5 | CLIP, PANEL |
| 6 | GLASS, INNER |
| 7 | FRAME, GLASS |
| 8 | INSULATION, DOOR STRIP |
| 9 | MAY 9761499 |
| 10 | HINGE, ACTIVE (WITH SPRING) |
| 10 | HINGE, DOOR (PASSIVE) |
| 11 | GLASS, OUTER (BLACK) |
| 11 | GLASS, OUTER |
| 12 | TRIM, SIDE (BLACK, LEFT HAND) |
| 12 | TRIM, SIDE (BLACK, RIGHT HAND) |
| 12 | TRIM, SIDE (WHITE (LEFT)) |
| 12 | TRIM, SIDE (WHITE (RIGHT)) |
| 13 | MAY 3196160 |
| 14 | TRIM, LOWER (BLACK) |
| 14 | TRIM, LOWER (WHITE) |
| 15 | SCREW |
| 16 | SCREW |
| 17 | STRAP, DOOR |
| 18 | SCREW |
