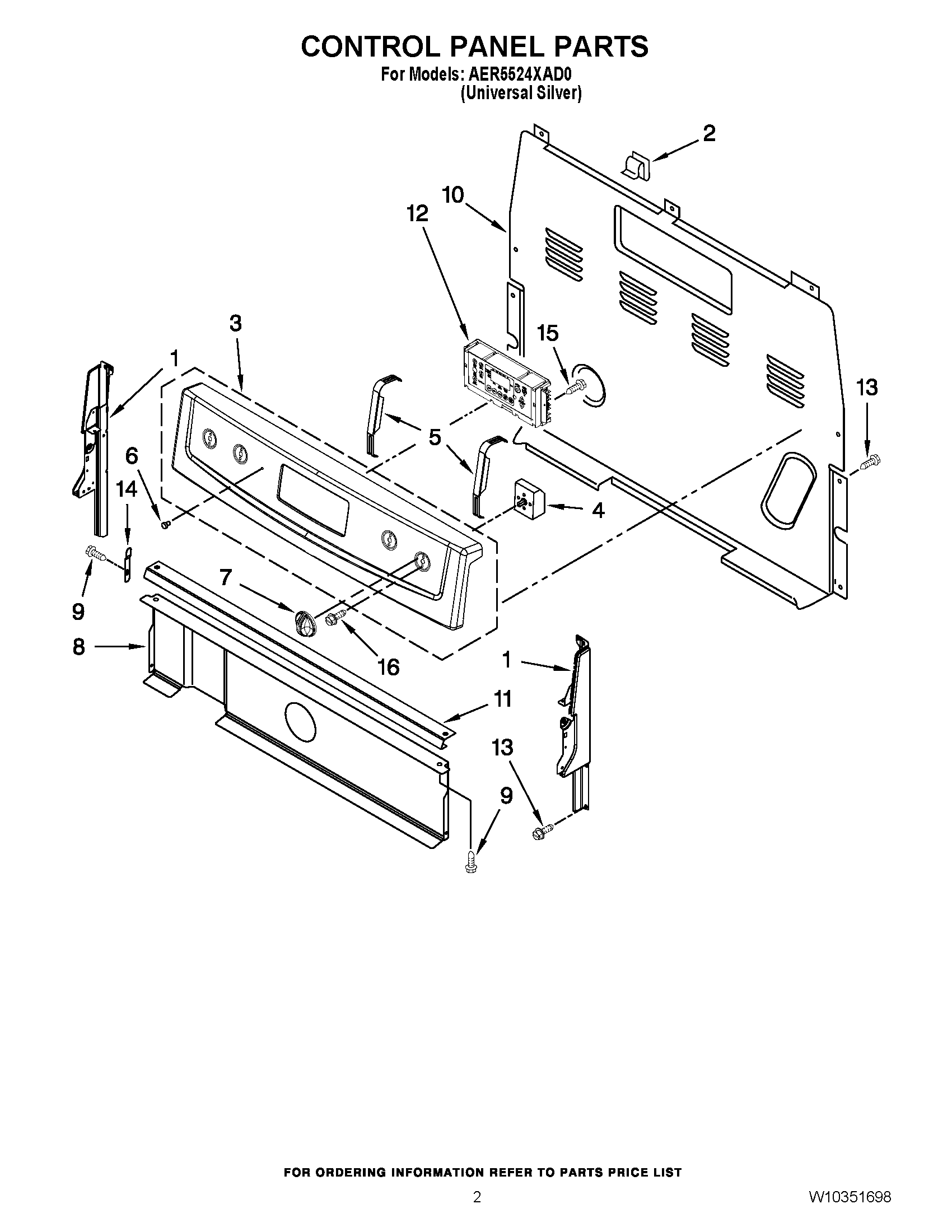

AER5524XAD0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (BLACK (RIGHT))
2MAY 8273564
3MAY W10320998
4SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
5BRACKET, MOUNTING, EOC
6MAY 3196068
7KNOB, INFINITE (BLACK)
8MAY 8053912
10COVER, UPPER REAR
11Bracket, Console
12CONTROL, RANGE (BLACK)
13SCREW
14CLIP, SPRING
15SCREW
16SCREW
