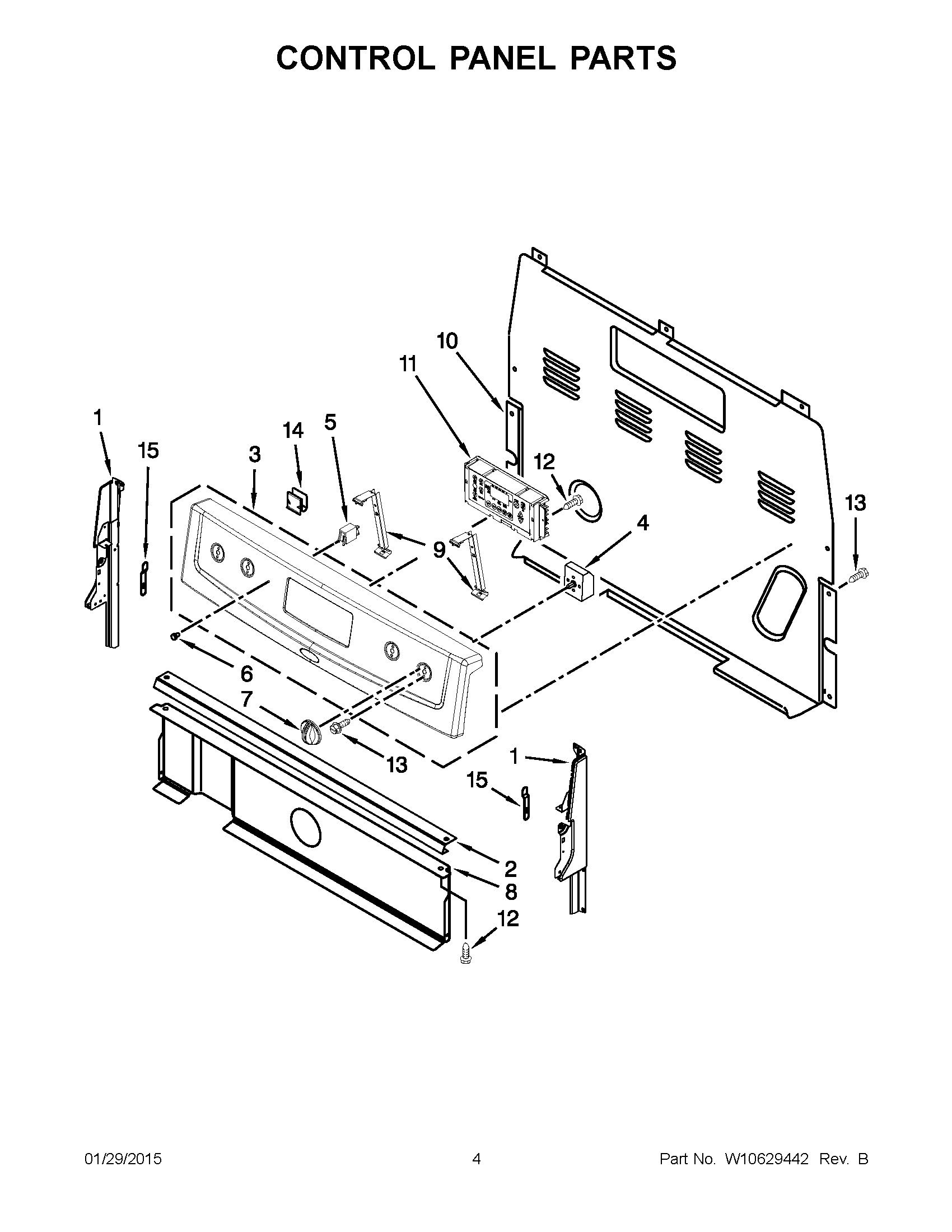

AER5630BAB0 03 – CONTROL PANEL PARTSadmin2025-04-26T08:56:29+00:00AER5630BAB0 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1A | ENDCAP (WHITE (RIGHT)) |
| 1B | ENDCAP (BLACK (LEFT)) |
| 1 | ENDCAP (WHITE (LEFT)) |
| 1C | ENDCAP (BLACK (RIGHT)) |
| 2 | BRACKET, CONSOLE MOUNTING |
| 3B | MAY W10572577 |
| 3A | MAY W10572574 |
| 3 | MAY W10572572 |
| 4B | SWITCH, INFINITE (DUAL) (LEFT FRONT) |
| 4 | SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR) |
| 4A | SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR) |
| 5 | MAY 8523265 |
| 6 | MAY 3196068 |
| 7 | KNOB, INFINITE (WHITE) |
| 7A | KNOB, INFINITE (BLACK) |
| 8 | SHIELD, HEAT |
| 9 | BRACKET, CONTROL |
| 10 | COVER, UPPER REAR |
| 11A | CONTROL (LCC95) (BLACK) |
| 11 | MAY W10626965 |
| 12 | SCREW |
| 13 | SCREW |
| 14 | MAY 8273564 |
| 15 | CLIP, SPRING |
