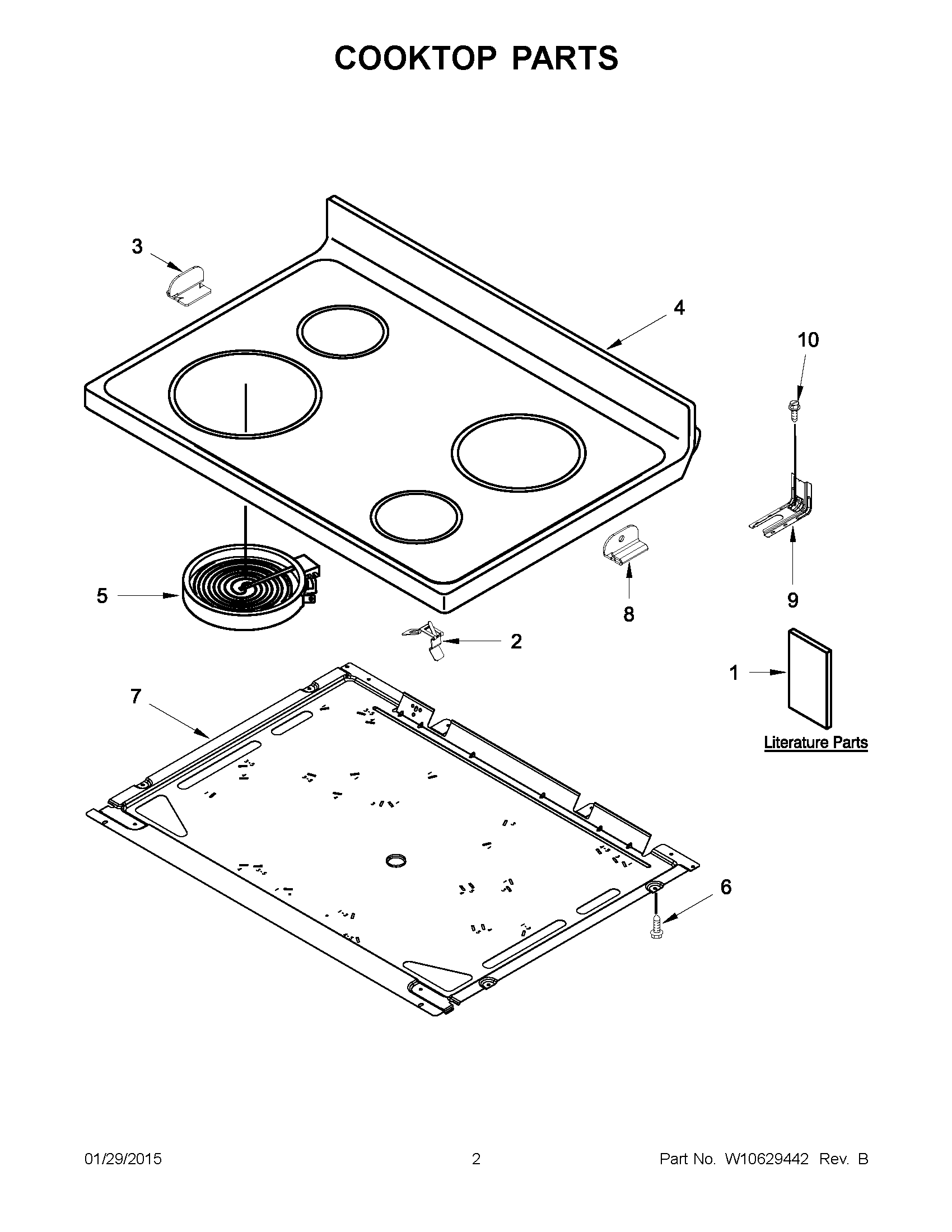

AER5630BAS0 02 – COOKTOP PARTS

Products

Position	Product
NI	KIT, BARE WIRE ADAPTER BLOCK
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10349708
NI	HARNESS, WIRE (COOKTOP RIGHT)
NI	MAY W10084660
NI	MAY W10349709
1A	WIRING DIAGRAM
1	MAY W10572534
1B	MAY W10403811
1C	TIPS, SAFE COOKING (ENGLISH)
2	SPRING, ELEMENT
3	BRACKET, COOKTOP (LEFT)
4	COOKTOP (WHITE)
4A	MAY W10572575
5	ELEMENT (3000/1400W) (LEFT FRONT)
5A	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
5B	ELEMENT (1800W) (RIGHT REAR)
6	SCREW
7	PAN, RADIANT ELEMENT
8	BRACKET, COOKTOP (RIGHT)
9	BRACKET, ANTI-TIP
10	SCREW, ANTI-TIP KIT
