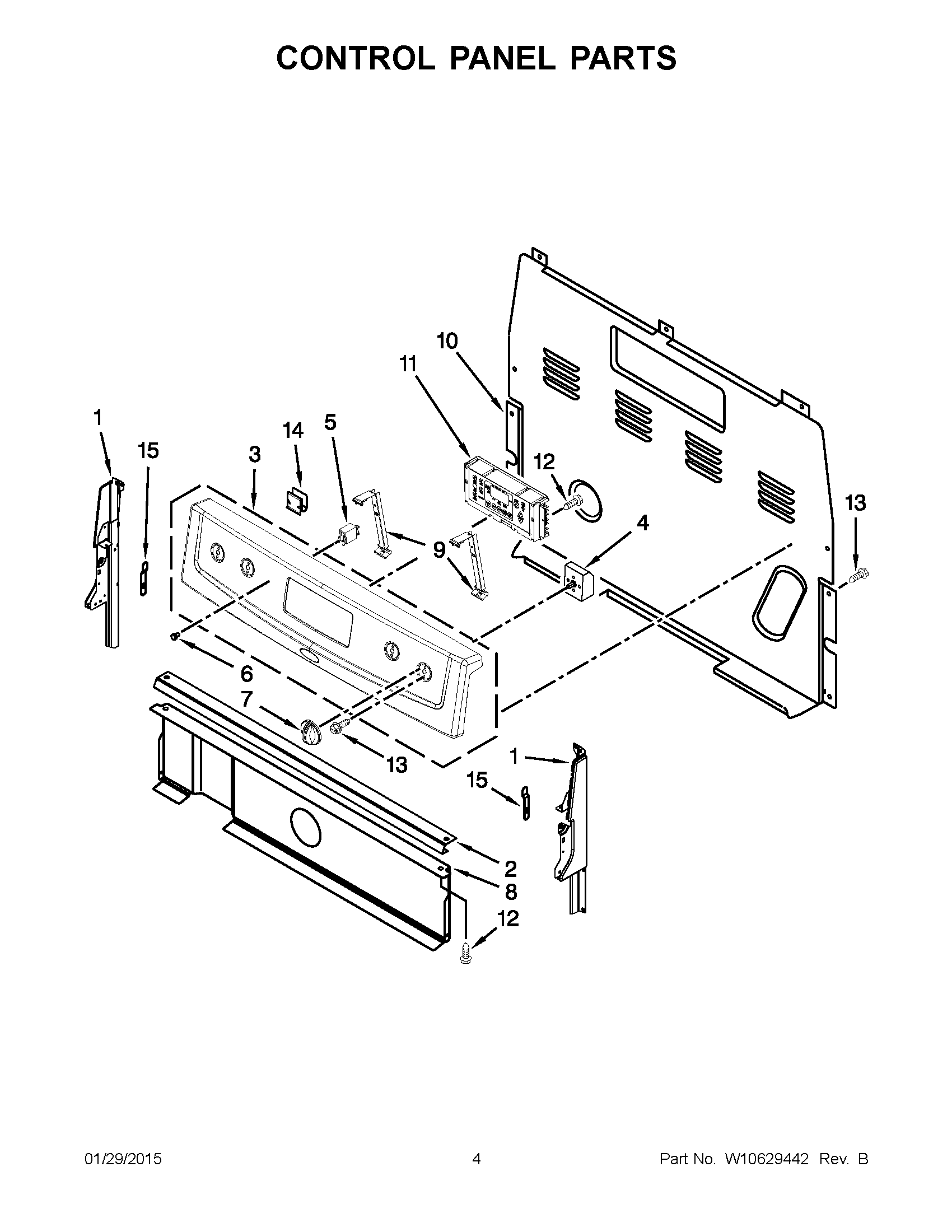

AER5630BAS0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AENDCAP (WHITE (RIGHT))
1BENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1CENDCAP (BLACK (RIGHT))
2BRACKET, CONSOLE MOUNTING
3BMAY W10572577
3AMAY W10572574
3MAY W10572572
4BSWITCH, INFINITE (DUAL) (LEFT FRONT)
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4ASWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5MAY 8523265
6MAY 3196068
7KNOB, INFINITE (WHITE)
7AKNOB, INFINITE (BLACK)
8SHIELD, HEAT
9BRACKET, CONTROL
10COVER, UPPER REAR
11ACONTROL (LCC95) (BLACK)
11MAY W10626965
12SCREW
13SCREW
14MAY 8273564
15CLIP, SPRING
