AER5630BAS0 04 – CHASSIS PARTS

AER5630BAS0 04 – CHASSIS PARTS

Written by

in

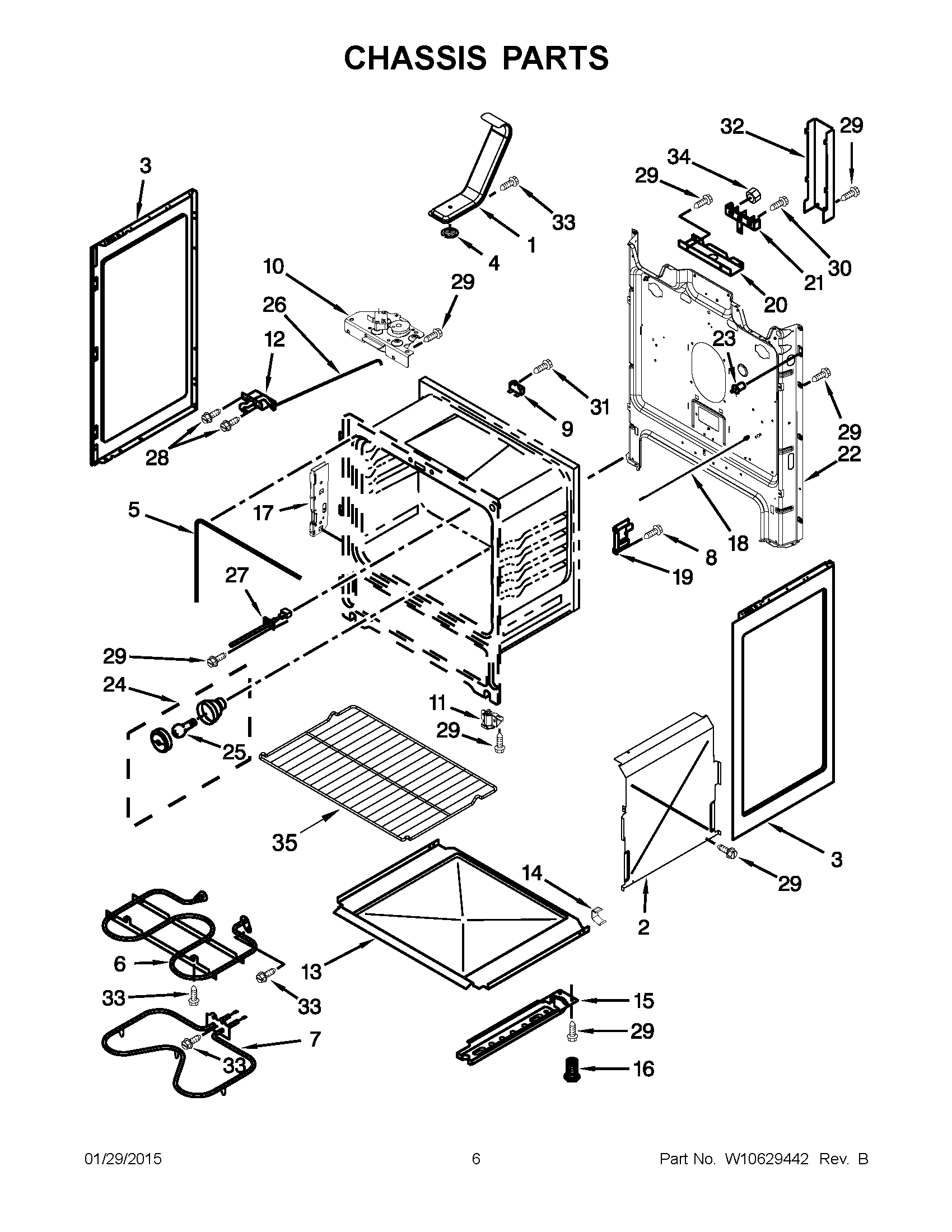

AER5630BAS0 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY W10208653
NI	INSULATION, BACK
NI	INSULATION, FLUE
1	TUBE, VENT
2	MAY W10450380
3A	PANEL, SIDE (BLACK)
3	PANEL, SIDE (WHITE)
4	MAY 9761301
5	SEAL, DOOR
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	SCREW
9	FUSE, THERMAL
10	ASSEMBLY, DOOR LATCH (REAR)
11	ASSEMBLY, FRONT FOOT
12	ASSEMBLY, DOOR LATCH (FRONT)
13	RETAINER, INSULATION
14	CLIP, PANEL
15	ASSEMBLY, BASE RAIL (LEFT)
15A	ASSEMBLY, BASE RAIL (RIGHT)
16	FOOT, LEVELING
17	RECEIVER, HINGE
18	ROD, DOOR SWITCH
19	CLIP, OVEN SUPPORT
20	BRACKET, SERVICE
21	BLOCK, TERMINAL
22	BACK, MAIN
23	SWITCH, DOOR
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
26	ROD, LATCH
27	SENSOR, OVEN
28	SCREW
29	SCREW
30	SCREW
31	SCREW
32	COVER, TERMINAL BLOCK
33	SCREW
34	WP7103P027-60 Whirlpool Nut
35	RACK, OVEN
