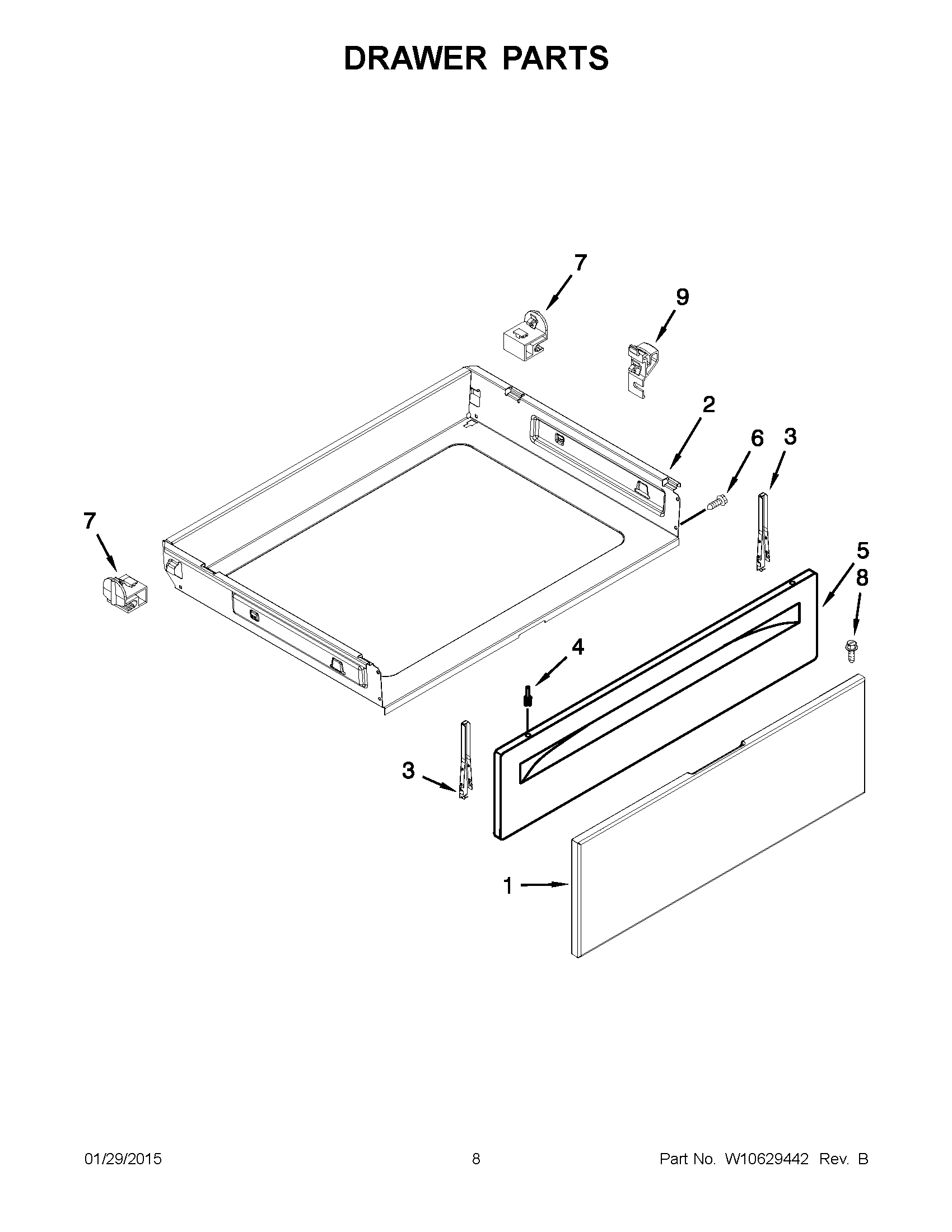

AER5630BAS0 05 – DRAWER PARTS

Written by

Products

Position	Product
1	PANEL, DRAWER FRONT (STAINLESS)
2	MAY W10663433
3A	BRACKET, MOUNTING DRAWER
3	BRACKET, MOUNTING DRAWER
4A	RIVET, PUSH (BLACK)
4	RIVET, PUSH (WHITE)
5	PANEL, DRAWER FRONT (WHITE)
5A	PANEL, DRAWER FRONT (BLACK)
6	SCREW
7	GLIDE, REAR DRAWER
8	SCREW
9	GLIDE, DRAWER
