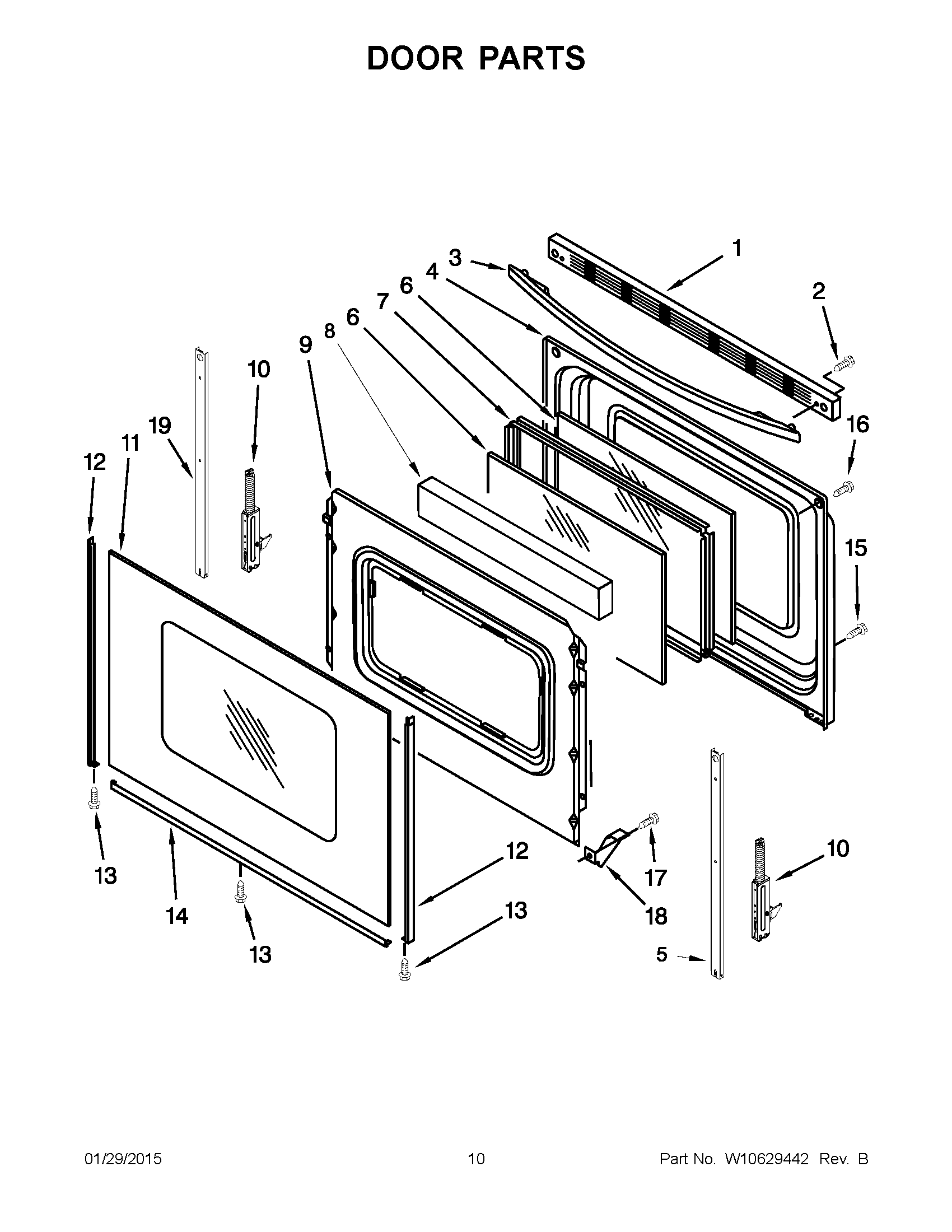

AER5630BAS0 06 – DOOR PARTS

Products

PositionProduct
1ATRIM, TOP (BLACK)
1TRIM, TOP (WHITE)
2SCREW
3BHANDLE, DOOR (STAINLESS)
3HANDLE, DOOR (WHITE)
3AHANDLE, DOOR (BLACK)
4LINER, DOOR
5STRAP, DOOR
6GLASS, INNER
7FRAME, GLASS
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10AHINGE, DOOR (PASSIVE)
10HINGE, ACTIVE (WITH SPRING)
11Glass, Outer (White)
11BGLASS, OUTER (STAINLESS)
11AGlass, Outer (Black)
12ATRIM, SIDE (WHITE (RIGHT))
12BTRIM, SIDE (BLACK, LEFT HAND)
12TRIM, SIDE (WHITE (LEFT))
12CTRIM, SIDE (BLACK, RIGHT HAND)
13SCREW
14ATRIM, LOWER (BLACK)
14TRIM, LOWER (WHITE)
15SCREW
16MAY W10031780
17SCREW
18CLIP, PANEL
