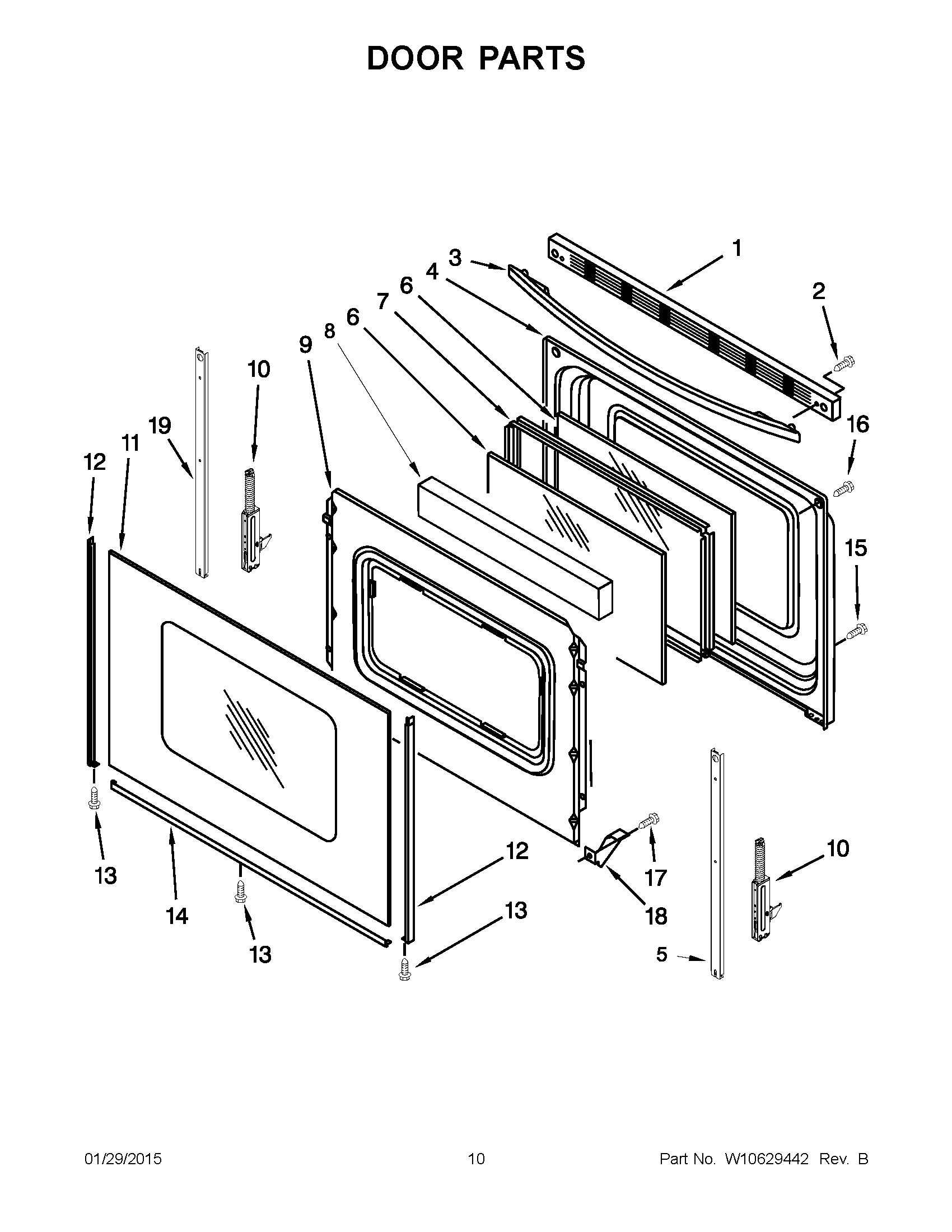

AER5630BAW0 06 – DOOR PARTS

Products

Position	Product
1A	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	SCREW
3B	HANDLE, DOOR (STAINLESS)
3	HANDLE, DOOR (WHITE)
3A	HANDLE, DOOR (BLACK)
4	LINER, DOOR
5	STRAP, DOOR
6	GLASS, INNER
7	FRAME, GLASS
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10A	HINGE, DOOR (PASSIVE)
10	HINGE, ACTIVE (WITH SPRING)
11	Glass, Outer (White)
11B	GLASS, OUTER (STAINLESS)
11A	Glass, Outer (Black)
12A	TRIM, SIDE (WHITE (RIGHT))
12B	TRIM, SIDE (BLACK, LEFT HAND)
12	TRIM, SIDE (WHITE (LEFT))
12C	TRIM, SIDE (BLACK, RIGHT HAND)
13	SCREW
14A	TRIM, LOWER (BLACK)
14	TRIM, LOWER (WHITE)
15	SCREW
16	MAY W10031780
17	SCREW
18	CLIP, PANEL
