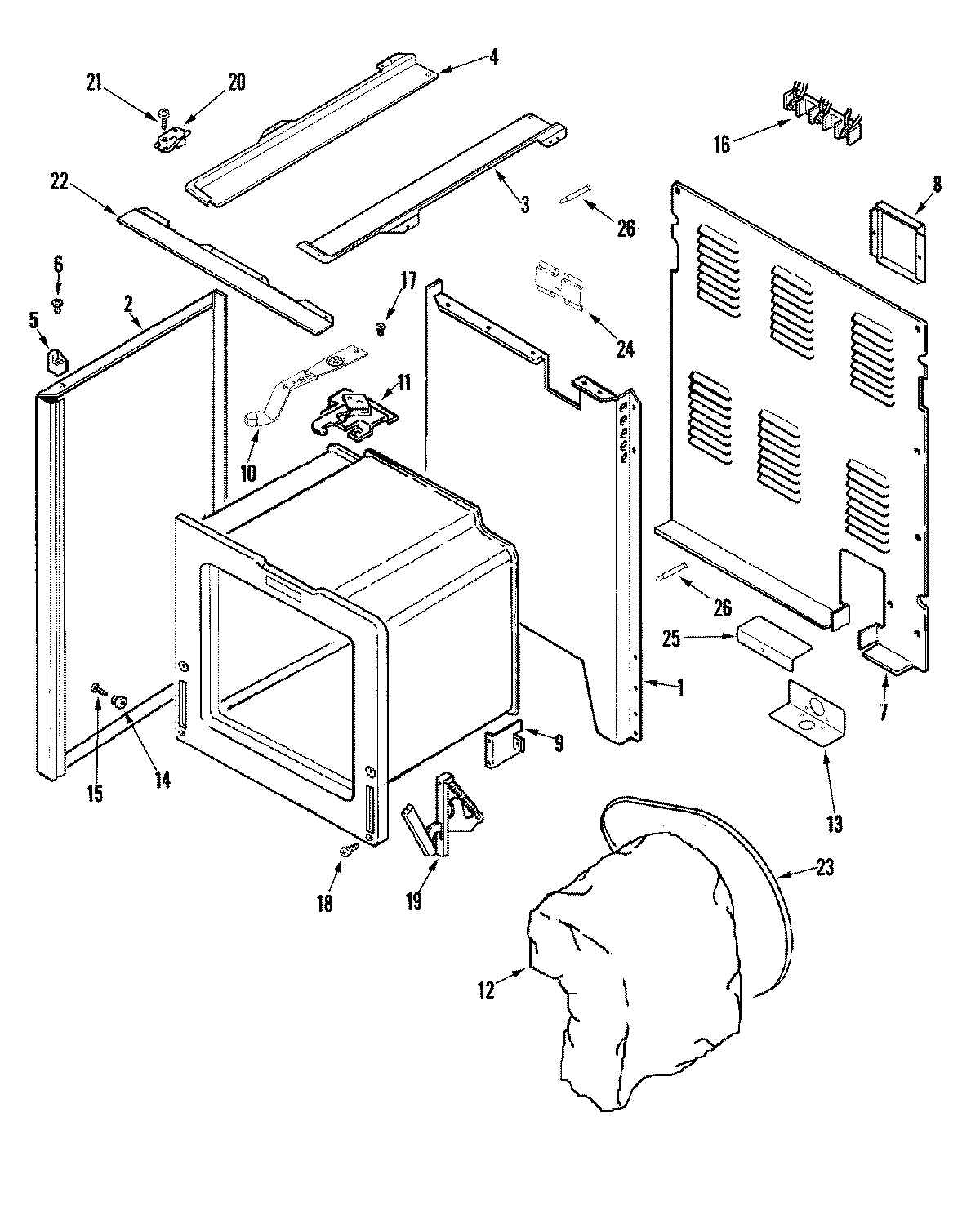

AER5710BAH 01 – BODY

Products

Position	Product
1	MAY 74011304
2	MAY 74003236
3	MAY 74003378
4	MAY 74003379
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	SCREW (8BX3/8-NI)
7	MAY 74009744
8	MAY 74010256
9	SUPPORT,OVEN REAR
10	MAY 74010243
11	MAY 74009710
11	SCREW
12	MAY 74009201
12	WP74010942 Whirlpool Insulation
13	W10190166 Whirlpool Service Bracket
13	MAY 71001394
13	SCREW, GROUND (GRN)
14	MAY 8004P024-60
15	W11693756 Whirlpool Screw Assembly
15	MAY 74007476
16	WPW10245259 Whirlpool Terminal Block
16	SCREW (10ABX1.0-ZN)
16	WP7103P027-60 Whirlpool Nut
17	SCREW, LEVER
18	SCREW (10-24X5/16-NI)
19	WP74011140 Whirlpool Oven Hinge
20	MAY 74009591
21	MAY 7101P330-60
22	MAY 74003384
23	MAY 74003385
24	MAY 74004532
25	MAY 74011046
26	MAY 7101P337-60
