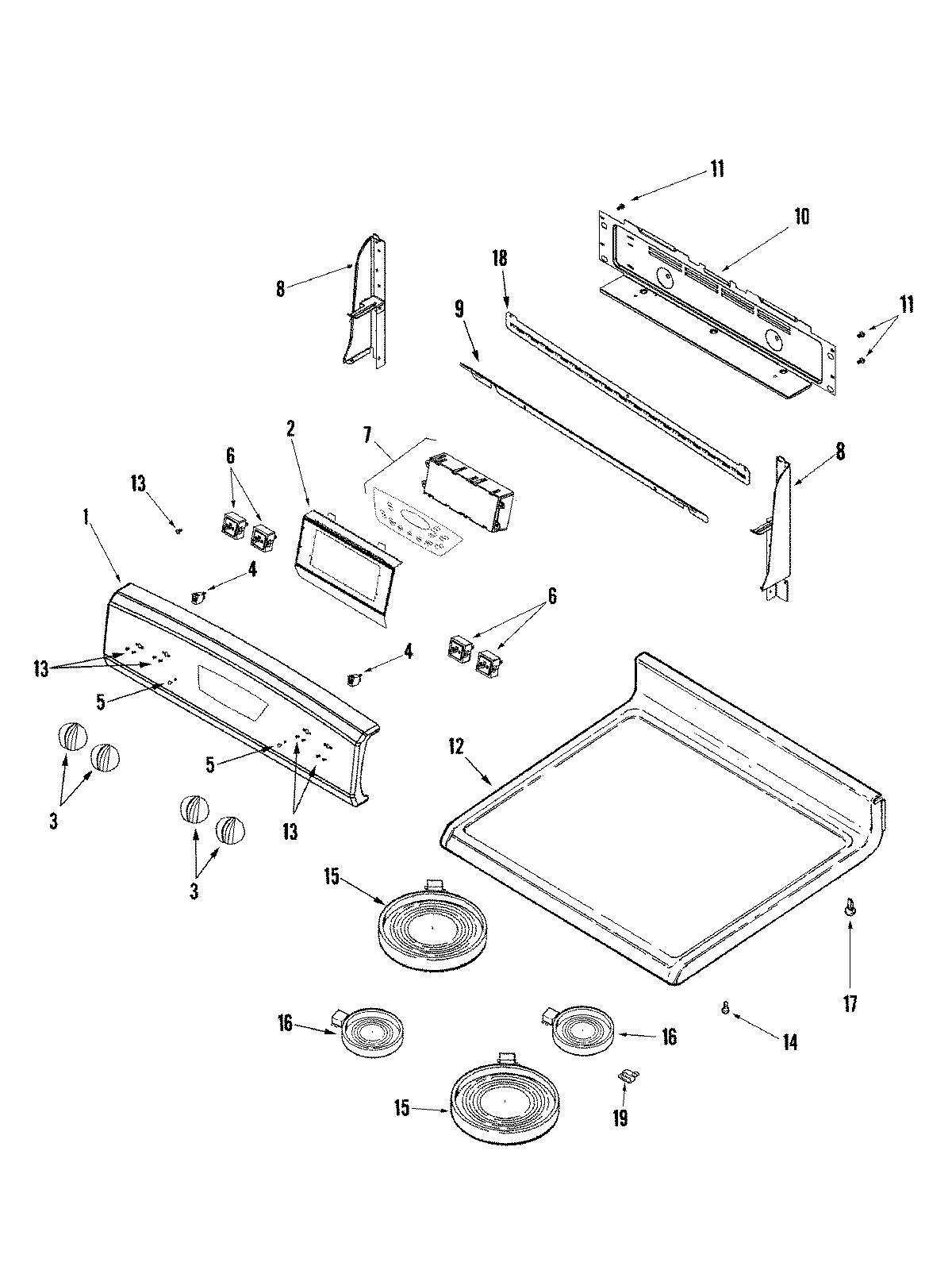

AER5710BAH 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74011448
2	MAY 74008716
3	MAY 74008731
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P239-60 Whirlpool Oven Switch
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	5701M760-60 Whirlpool Electronic Control Board
8	WP98008545 Whirlpool Screw
8	MAY 74010201
8	MAY 74010202
8	WP74003976 Whirlpool Screw
9	MAY 74009978
10	WP90767 Whirlpool Screw
10	MAY 74010983
11	MAY 71001394
11	SCREW (10ABX1.0-ZN)
12	MAY 74011447
13	SCREW
14	SCREW (6ABX.25-ZN)
15	W10823715 Whirlpool Radiant Surface Element
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	W11189172 Whirlpool Glide Drawer
18	MAY 74009701
19	8004P093-60 Whirlpool Support C
