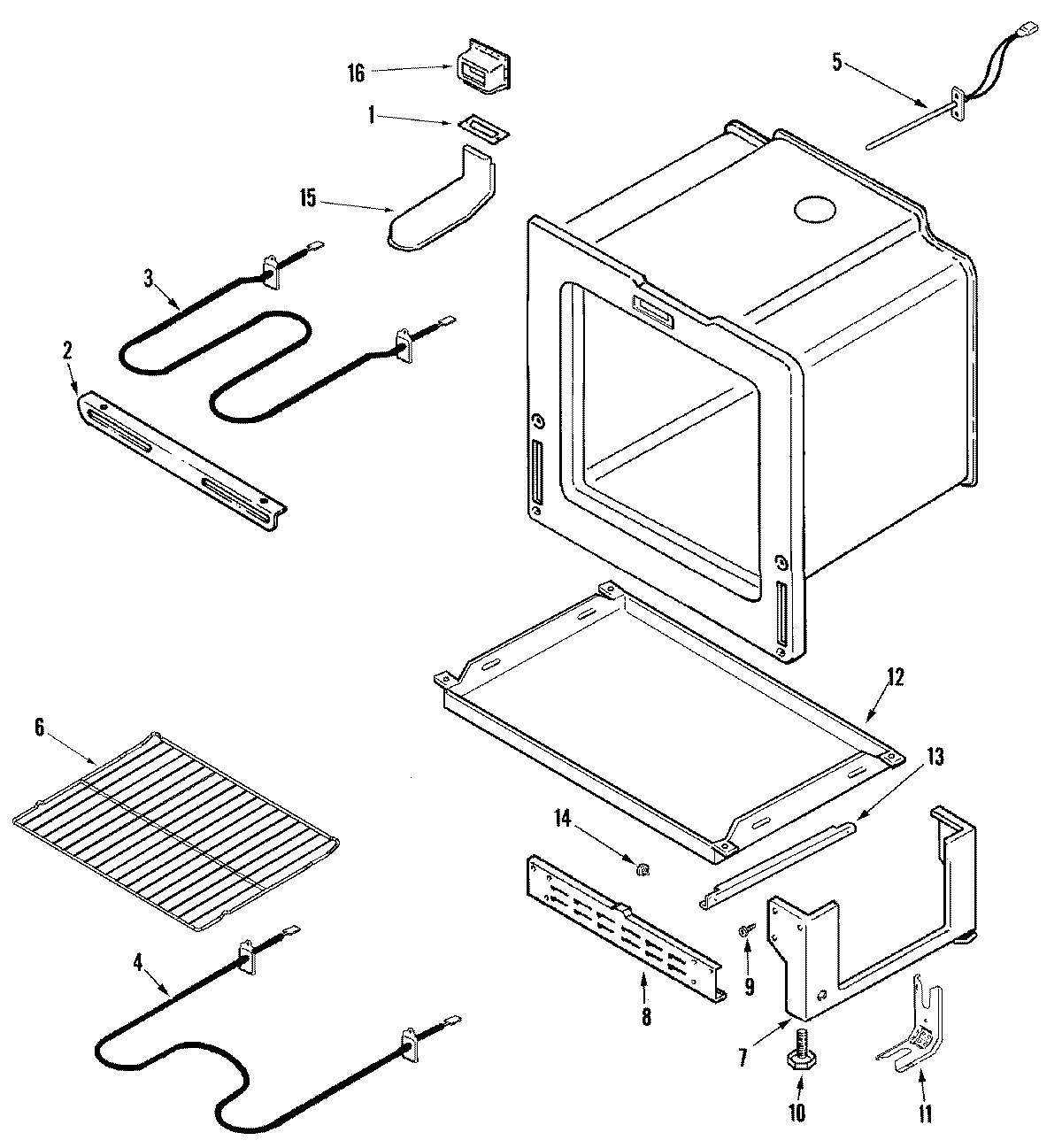

AER5710BAH 04 – OVEN/BASE

Products

PositionProduct
1MAY 74003285
2SUPPORT, BROIL ELEMENT
3WPW10310249 Whirlpool Broil Element
4WP74010750 Whirlpool Oven Bake Element
512001656 Whirlpool Range Oven Temperature Sensor
6WPW10282492 Whirlpool Oven Rack
7MAY 74006325
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP7101P485-60 Whirlpool Anchor Tip
11WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12RETAINER, INSULATION (BOTTOM)
13RUNNER, DRAWER
14SHAFT, STORAGE DRAWER ROLLER
14WP74004078 Whirlpool Door Roller
15MAY 74003394
15SCREEN, SMOKE ELIMINATOR
15SCREW
16MAY 74004534
