AER5712AAQ 01 – BODY

AER5712AAQ 01 – BODY

Written by

in

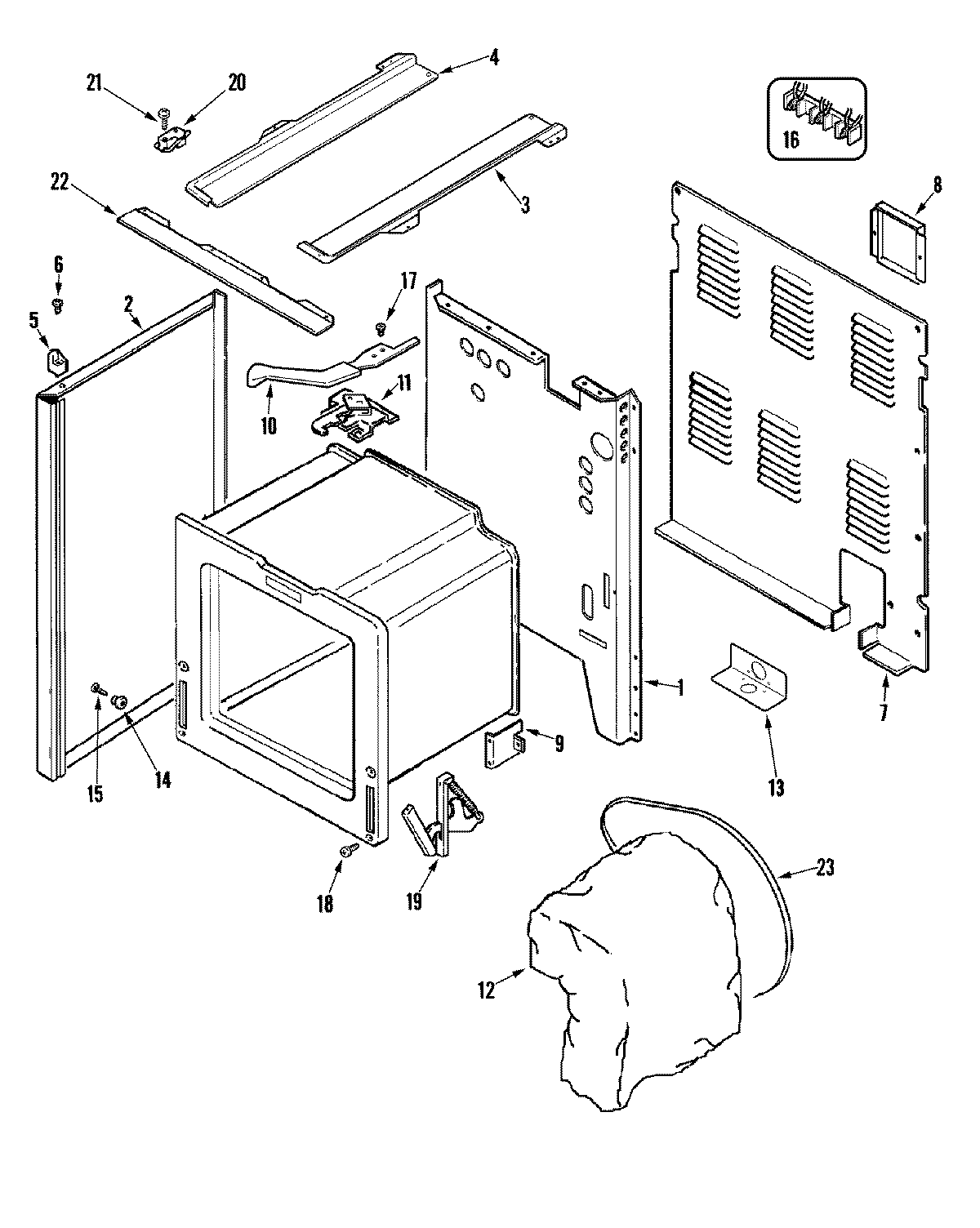

AER5712AAQ 01 – BODY

Products

PositionProduct
1MAY 74009677
1MAY 7101P337-60
2MAY 74004965
3MAY 74003378
4MAY 74003379
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6SCREW (8BX3/8-NI)
7MAY 74009744
8MAY 74010256
9SUPPORT,OVEN REAR
10MAY 74001057
1174003975 Whirlpool Screw P1 (8ABX3/8-BLK)
11MAY 74009710
11SCREW
12MAY 74009201
12WP74010942 Whirlpool Insulation
13MAY 71001394
13W10190166 Whirlpool Service Bracket
13SCREW, GROUND (GRN)
14MAY 8004P024-60
15MAY 74007476
15W11693756 Whirlpool Screw Assembly
16WPW10245259 Whirlpool Terminal Block
17SCREW, LEVER
18SCREW (10-24X5/16-NI)
19HINGE-OVEN DOOR
20MAY 74009591
21MAY 7101P330-60
22MAY 74003384
23MAY 74003385
