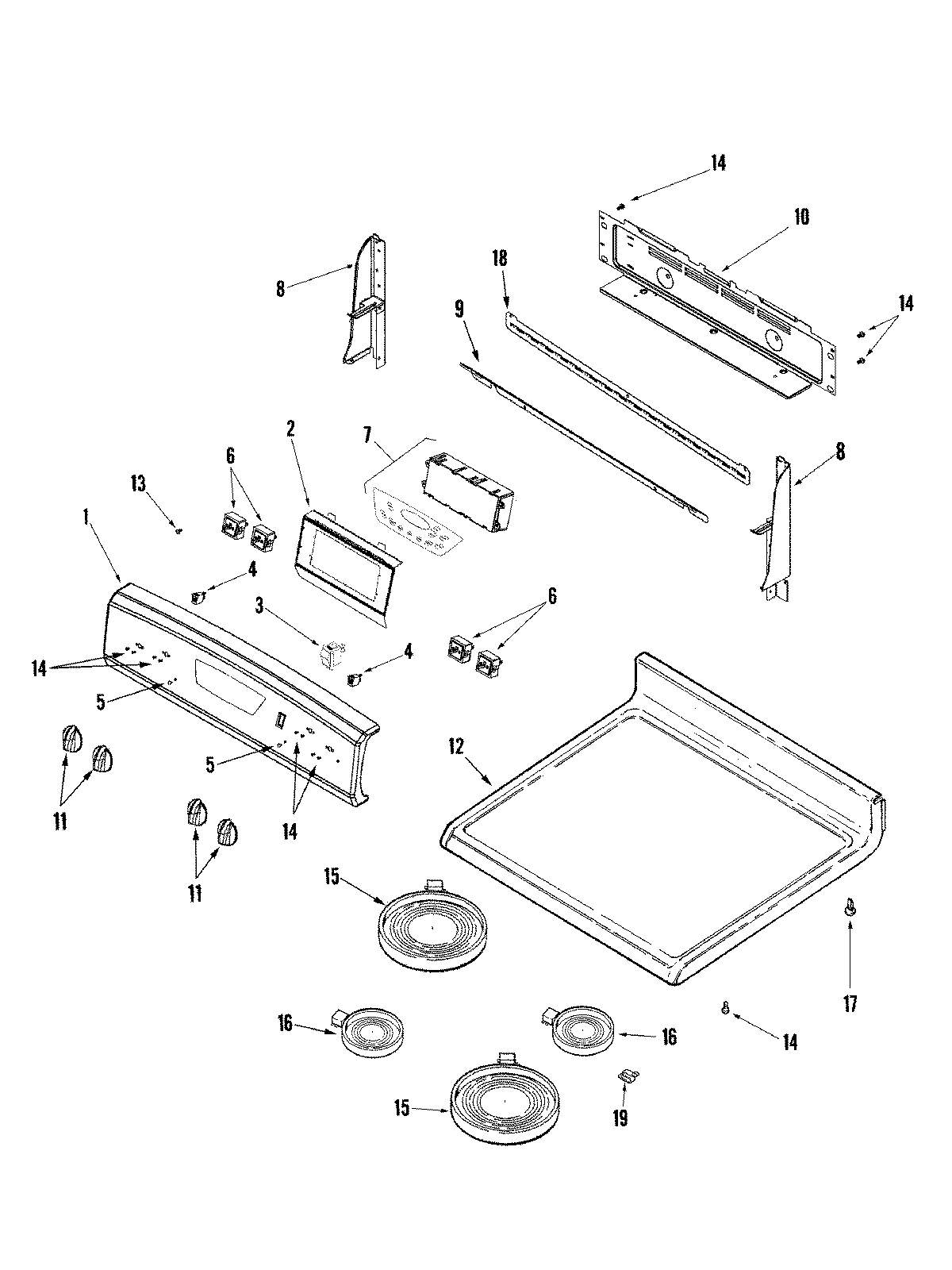

AER5712AAQ 02 – CONTROL PANEL/TOP ASSEMBLY

AER5712AAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AER5712AAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74008714
2MAY 74008716
374008765 Whirlpool Range Oven Rocker Switch Bisque
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
7MAY 74010294
8MAY 74010213
8MAY 74010214
8WP74009541 Whirlpool Screw Assembly
8WP74003976 Whirlpool Screw
9MAY 74009978
10MAY 74009943
10WP90767 Whirlpool Screw
11MAY 74008732
12MAY 74010302
13SCREW
14SCREW (6ABX.25-ZN)
15W10823715 Whirlpool Radiant Surface Element
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18MAY 74009701
198004P093-60 Whirlpool Support C
20MAY 71001394
20SCREW (10ABX1.0-ZN)
