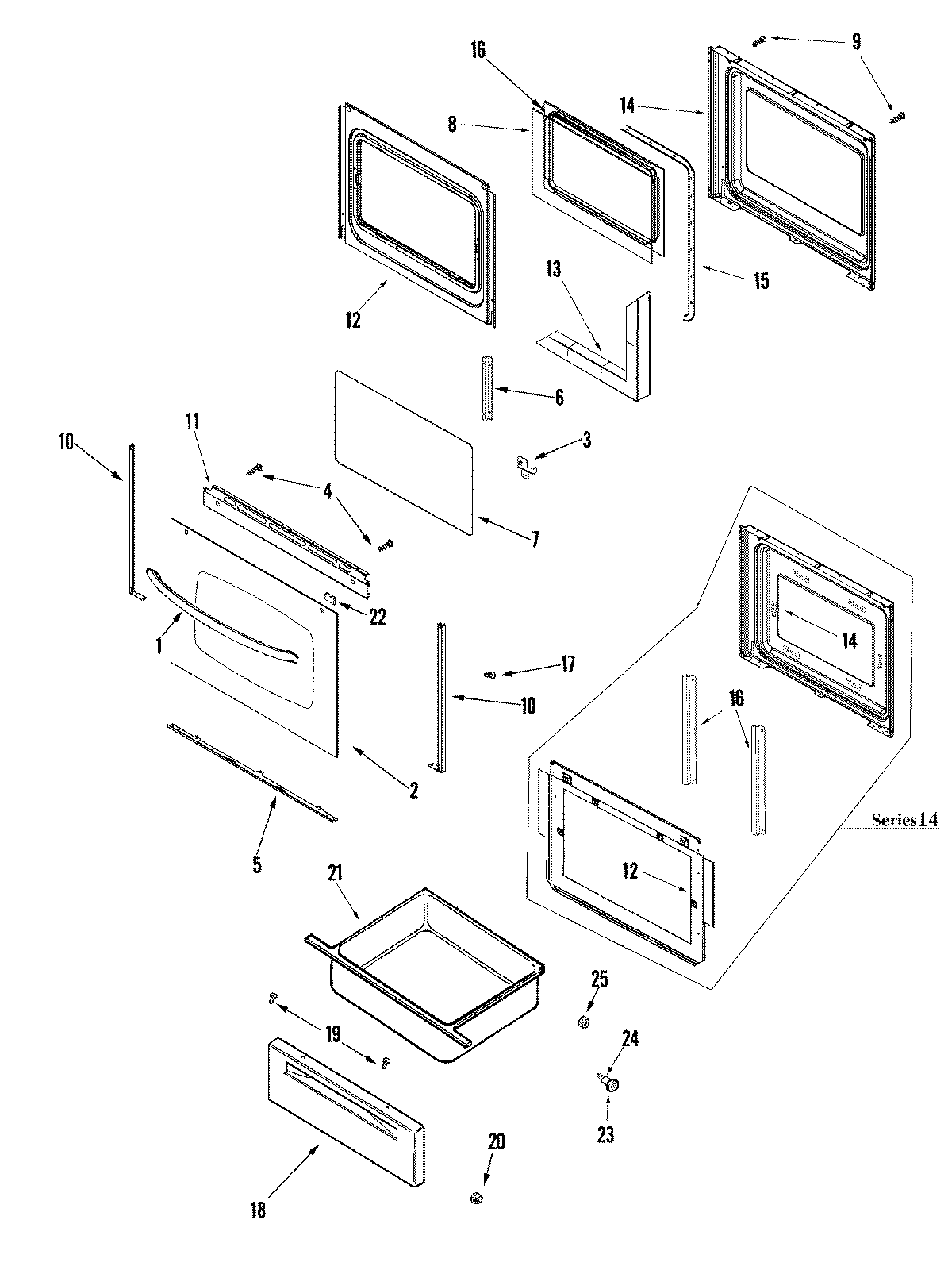

AER5712AAQ 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008323
212002397 Whirlpool Oven Door Glass Kit (Bisque)
33801F831-45 Whirlpool Bracket Assembly
33801F832-45 Whirlpool Bracket
4WP74006515 Whirlpool Washer Screw
5SUPPORT, GLASS (BSQ)
6MAY 74003650
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
10TRIM, DOOR (BSQ-RT)
10TRIM, DOOR (BSQ-LT)
10WP74004224 Whirlpool Tape
11MAY 74009691
123601F373-51 Whirlpool Baffle
12MAY 74009502
12MAY 7101P356-60
12SCREW
13INSULATION, OVEN DOOR
14MAY 74003642
14LINING, DOOR
15GASKT-DOOR OVEN
16SCREW, 8 X 1/2
163801F886-51 Whirlpool Mounting Bracket
16FRAME, GLASS
17WP74009541 Whirlpool Screw Assembly
18MAY 74005055
20WPW10131078 Whirlpool Nut Assembly
21MAY 74008337
22WP74005546 Whirlpool RU Spacer
23WP74004078 Whirlpool Door Roller
24SHAFT, STORAGE DRAWER ROLLER
25WP488130 Whirlpool Air Conditioner Nut
