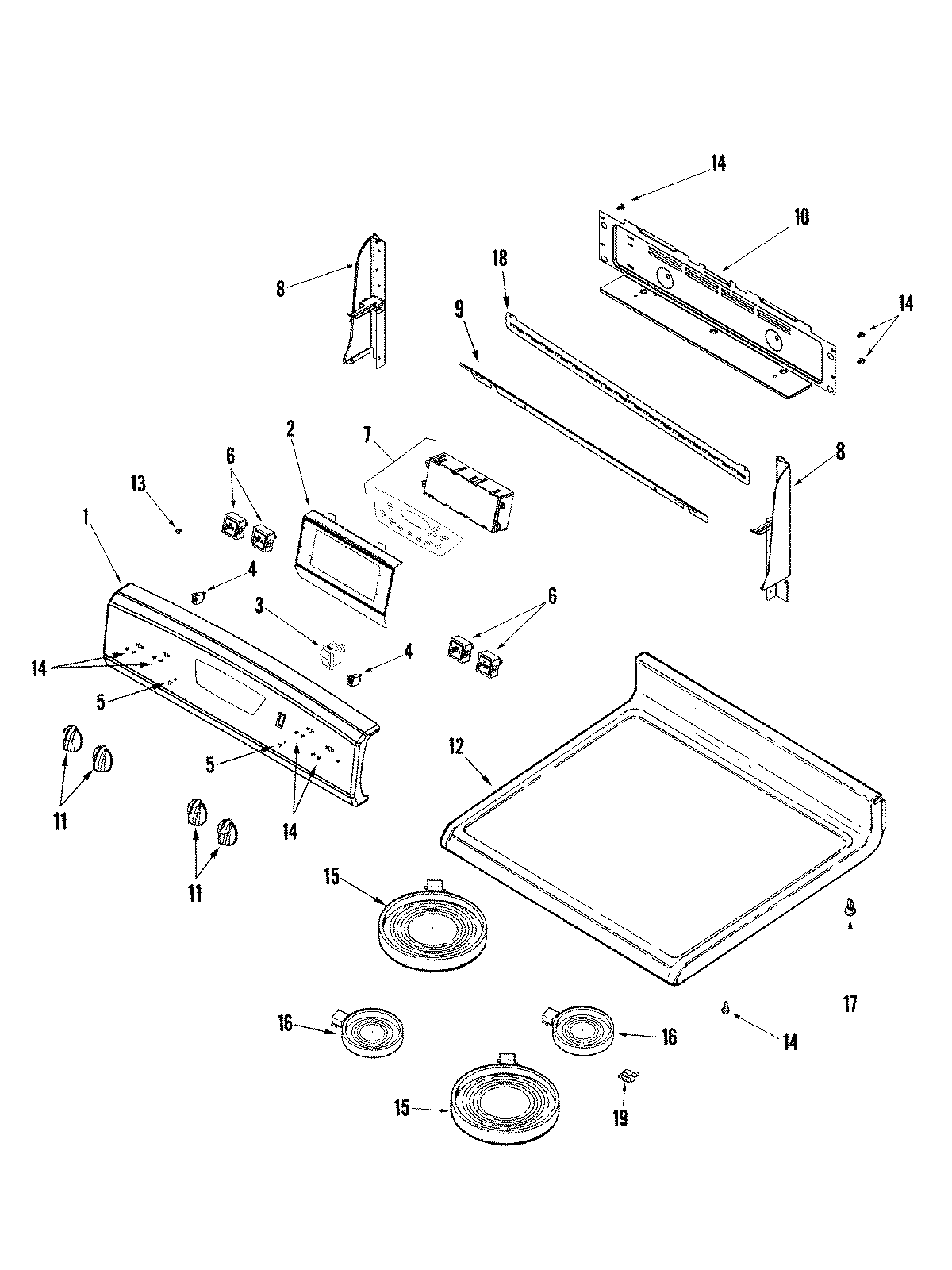

AER5712AAS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74008672
3	SWITCH, ROCKER (BLK)
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP7403P239-60 Whirlpool Oven Switch
7	5701M760-60 Whirlpool Electronic Control Board
8	MAY 74010202
8	MAY 74010201
8	WP98008545 Whirlpool Screw
8	WP74003976 Whirlpool Screw
9	MAY 74009978
10	MAY 74009943
10	WP90767 Whirlpool Screw
11	MAY 74008731
12	MAY 74010300
13	SCREW
14	SCREW (6ABX.25-ZN)
15	W10823715 Whirlpool Radiant Surface Element
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	W11189172 Whirlpool Glide Drawer
18	MAY 74009701
19	8004P093-60 Whirlpool Support C
20	MAY 71001394
20	SCREW (10ABX1.0-ZN)
