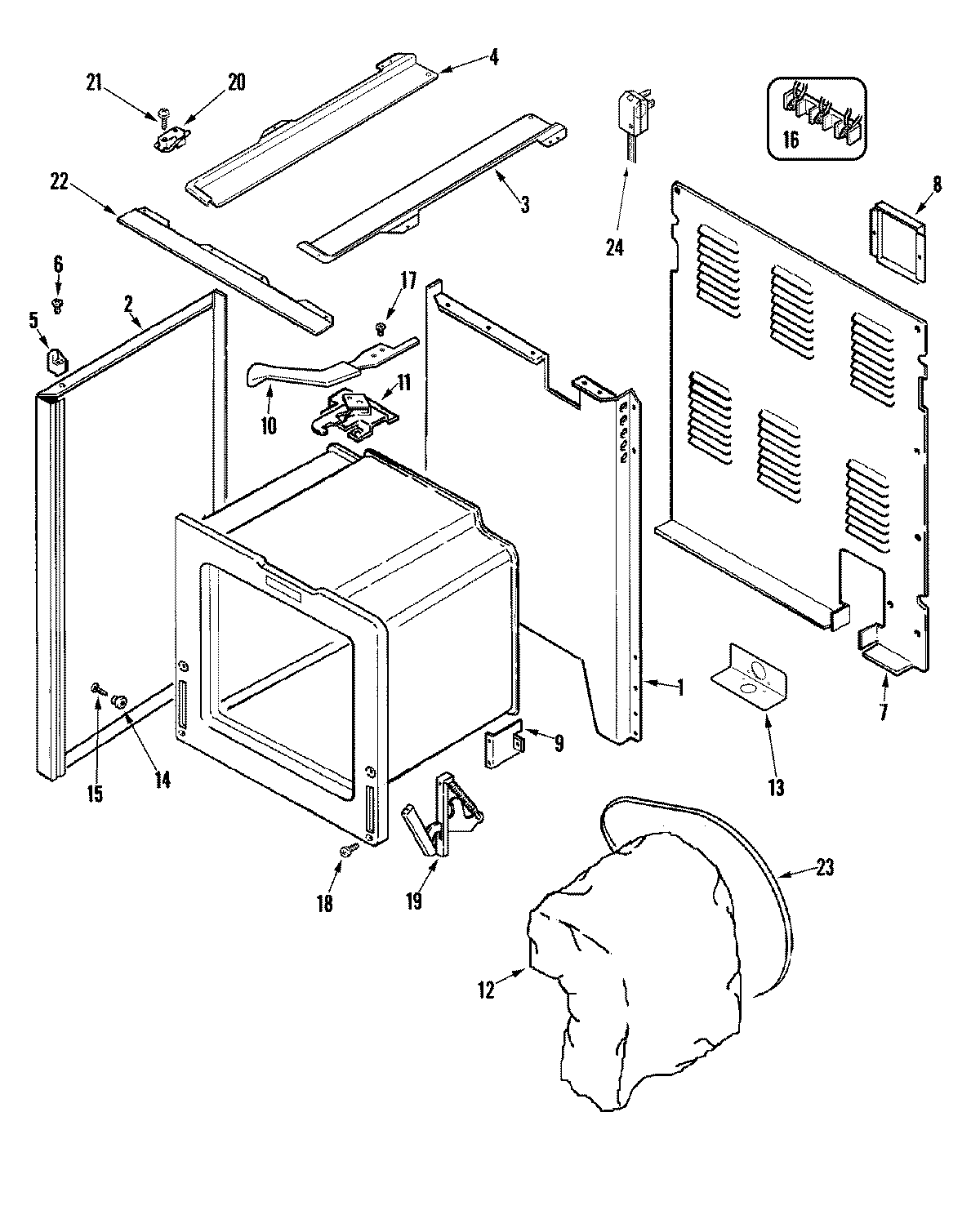

| 1 | MAY 74009677 |
| 1 | MAY 7101P337-60 |
| 2 | MAY 74003236 |
| 3 | MAY 74003378 |
| 4 | MAY 74003379 |
| 5 | SPACER, MAIN TOP (LT) |
| 5 | SPACER, MAIN TOP (RT) |
| 6 | SCREW (8BX3/8-NI) |
| 7 | MAY 74009744 |
| 8 | MAY 71001394 |
| 8 | MAY 74010256 |
| 9 | SUPPORT,OVEN REAR |
| 10 | MAY 74002973 |
| 11 | 74003975 Whirlpool Screw P1 (8ABX3/8-BLK) |
| 11 | MAY 74009710 |
| 11 | SCREW |
| 12 | WP74010942 Whirlpool Insulation |
| 12 | MAY 74009201 |
| 13 | W10190166 Whirlpool Service Bracket |
| 13 | SCREW, GROUND (GRN) |
| 14 | MAY 8004P024-60 |
| 15 | W11693756 Whirlpool Screw Assembly |
| 15 | MAY 74007476 |
| 16 | WPW10245259 Whirlpool Terminal Block |
| 17 | SCREW, LEVER |
| 18 | SCREW (10-24X5/16-NI) |
| 19 | HINGE-OVEN DOOR |
| 19 | 74011142 Whirlpool Stove Range Oven Door Hinge and Spring |
| 20 | MAY 74009591 |
| 21 | MAY 7101P330-60 |
| 22 | MAY 74003384 |
| 23 | MAY 74003385 |
| 24 | MAY 7402P050-60 |
