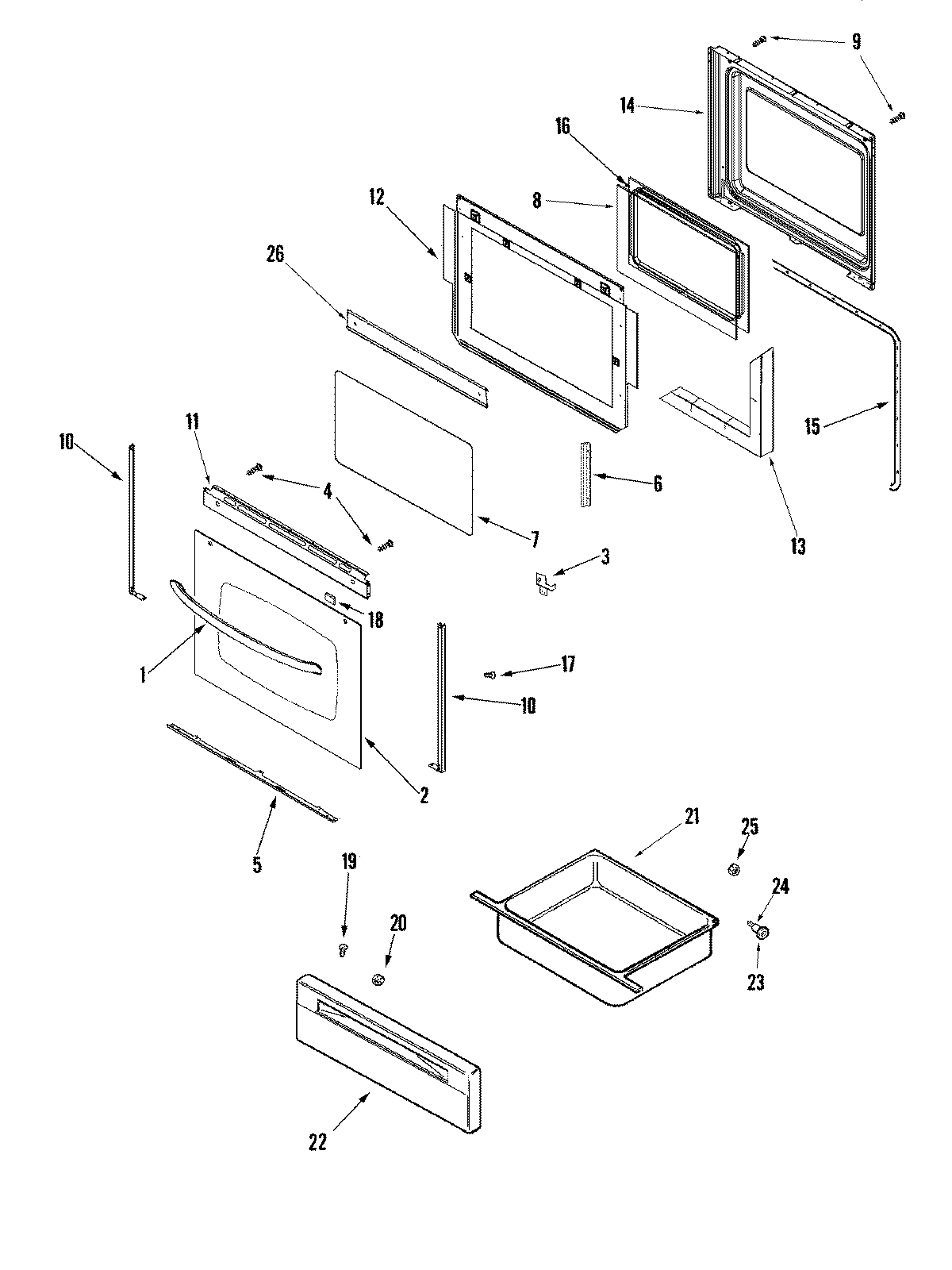

AER5712ACZ 02 – DOOR/DRAWER (SLV)

Products

PositionProduct
1HANDLE, DOOR (BLK)
2MAY 74011344
33801F832-45 Whirlpool Bracket
3SPACER, RUBBER (BLK-SQUARE)
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
5SUPPORT, GLASS (BLK)
5WP74004224 Whirlpool Tape
6MAY 74003650
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
10WP3608F116-70 Whirlpool Door Trim
10WP3608F117-70 Whirlpool Door Trim
11MAY 74009689
12MAY 7101P356-60
12MAY 74011339
123601F373-51 Whirlpool Baffle
13INSULATION, OVEN DOOR
14LINING, DOOR
14NUT, SNAP (ROUND-BLK)
14MAY 74003642
15GASKT-DOOR OVEN
16SCREW, 8 X 1/2
163801F886-51 Whirlpool Mounting Bracket
16FRAME, GLASS
17WP98008545 Whirlpool Screw
18WP74005546 Whirlpool RU Spacer
21MAY 74008337
22MAY 74010881
22WPW10131078 Whirlpool Nut Assembly
23WP74004078 Whirlpool Door Roller
24SHAFT, STORAGE DRAWER ROLLER
25WP488130 Whirlpool Air Conditioner Nut
26SCREW
26MAY 74010837
