AER5712BAB 04 – OVEN/BASE

AER5712BAB 04 – OVEN/BASE

Written by

in

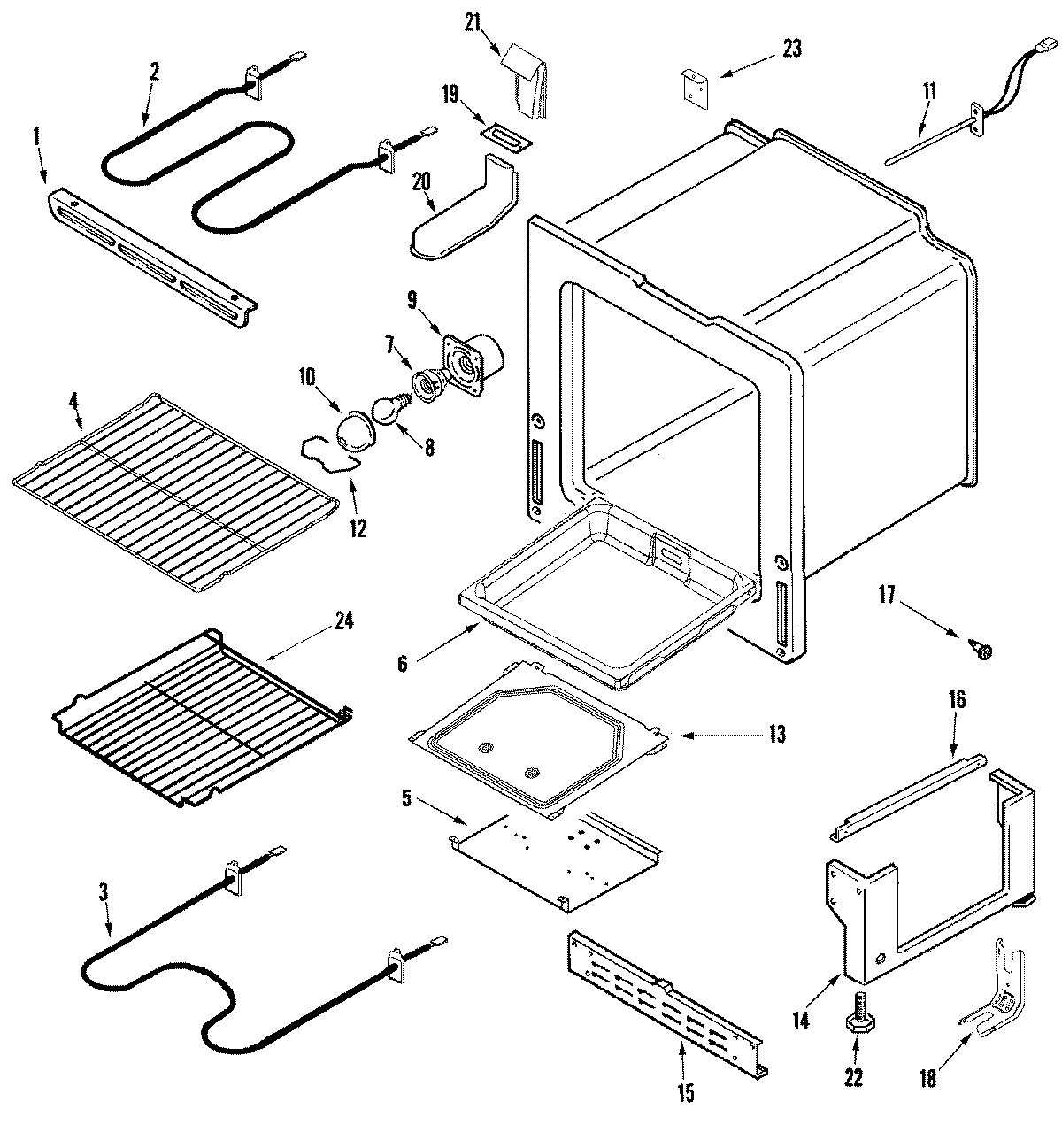

AER5712BAB 04 – OVEN/BASE

Products

PositionProduct
1SUPPORT, BROIL ELEMENT
2WPW10310249 Whirlpool Broil Element
3WP7406P438-60 Whirlpool Bake Element
4WPW10282492 Whirlpool Oven Rack
5MAY 74006591
6BOTTOM, DUTCH OVEN
7MAY 74003388
8RANGE ONLY 40W 120V APPL BULB
9MAY 74003387
10MAY 74003389
1112001656 Whirlpool Range Oven Temperature Sensor
12MAY 74003391
13RETAINER, INSULATION (BOTTOM)
14MAY 74006325
15MAY 4020F001-80
16RUNNER, DRAWER
17SHAFT, STORAGE DRAWER ROLLER
17WP74004078 Whirlpool Door Roller
1774005230 Whirlpool Oven Lock Nut (8-32)
18WP3801F656-51 Whirlpool Range Anti-Tip Bracket
18WP7101P485-60 Whirlpool Anchor Tip
19MAY 74003285
20MAY 74003394
20SCREEN, SMOKE ELIMINATOR
21SCREW
21MAY 71001394
21MAY 74009987
22W11665456 Whirlpool Range Level Foot
23MAY 74009988
24MAY 74008410
