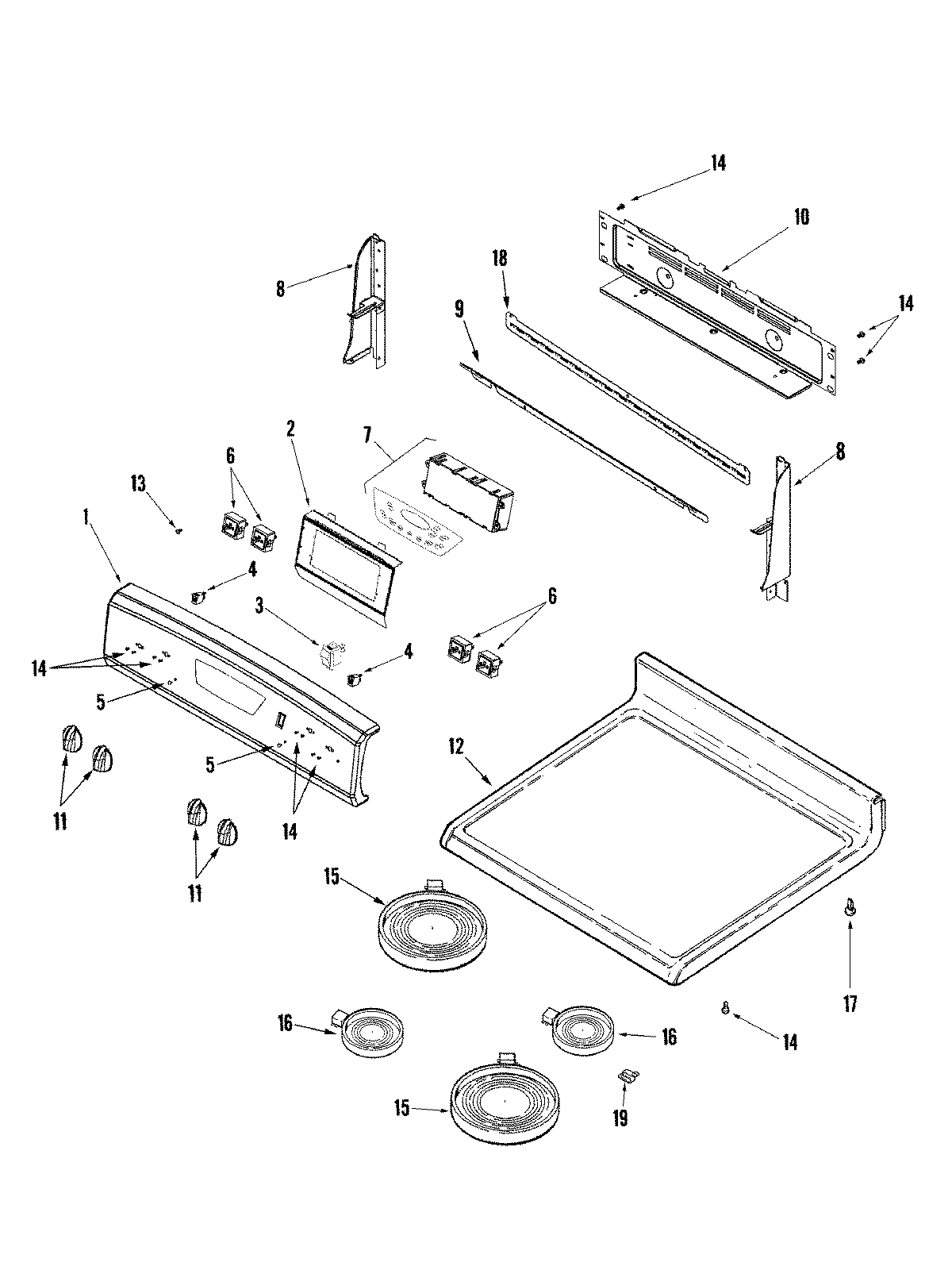

AER5712BAW 02 – CONTROL PANEL/TOP ASSEMBLY

AER5712BAW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AER5712BAW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74008713
2MAY 74008716
374008717 Whirlpool White Rocker Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
75701M760-60 Whirlpool Electronic Control Board
8MAY 74010212
8MAY 74010211
8WP74003976 Whirlpool Screw
8WP98008544 Whirlpool Screw Assembly
9MAY 74009978
10WP90767 Whirlpool Screw
10MAY 74009943
12MAY 74010301
13SCREW
14SCREW (6ABX.25-ZN)
15W10823715 Whirlpool Radiant Surface Element
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18MAY 74009701
198004P093-60 Whirlpool Support C
20MAY 71001394
20SCREW (10ABX1.0-ZN)
