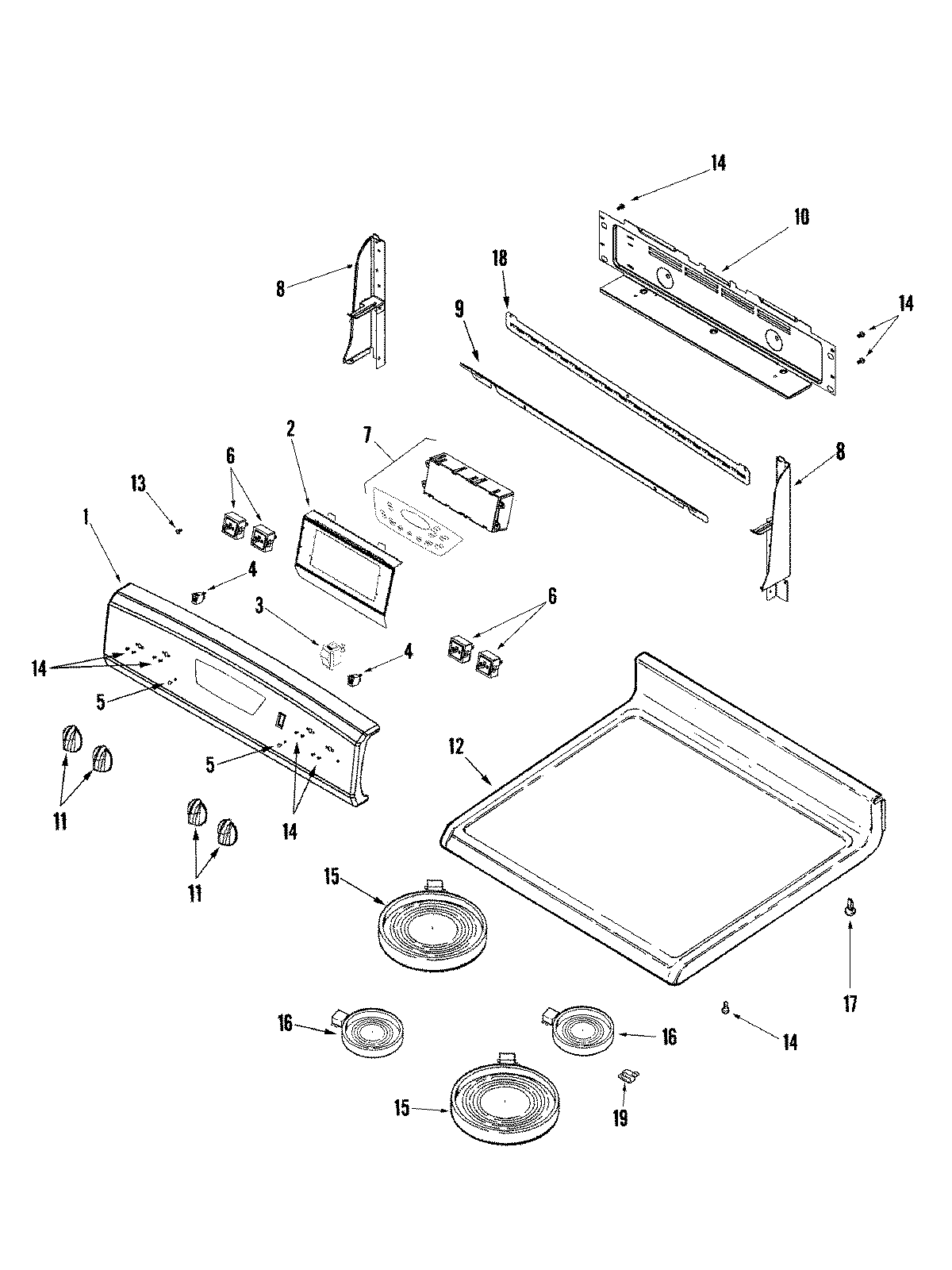

AER5712BAZ 02 – CONTROL PANEL/TOP ASSEMBLY

AER5712BAZ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AER5712BAZ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011340
2MAY 74008716
3SWITCH, ROCKER (BLK)
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
75701M760-60 Whirlpool Electronic Control Board
8WP74003976 Whirlpool Screw
8MAY 74010202
8MAY 74010201
8WP98008545 Whirlpool Screw
9MAY 74009978
10MAY 74009943
10WP90767 Whirlpool Screw
11MAY 74008731
12MAY 74010300
13SCREW
14SCREW (6ABX.25-ZN)
15W10823715 Whirlpool Radiant Surface Element
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18MAY 74009701
198004P093-60 Whirlpool Support C
20SCREW (10ABX1.0-ZN)
20MAY 71001394
