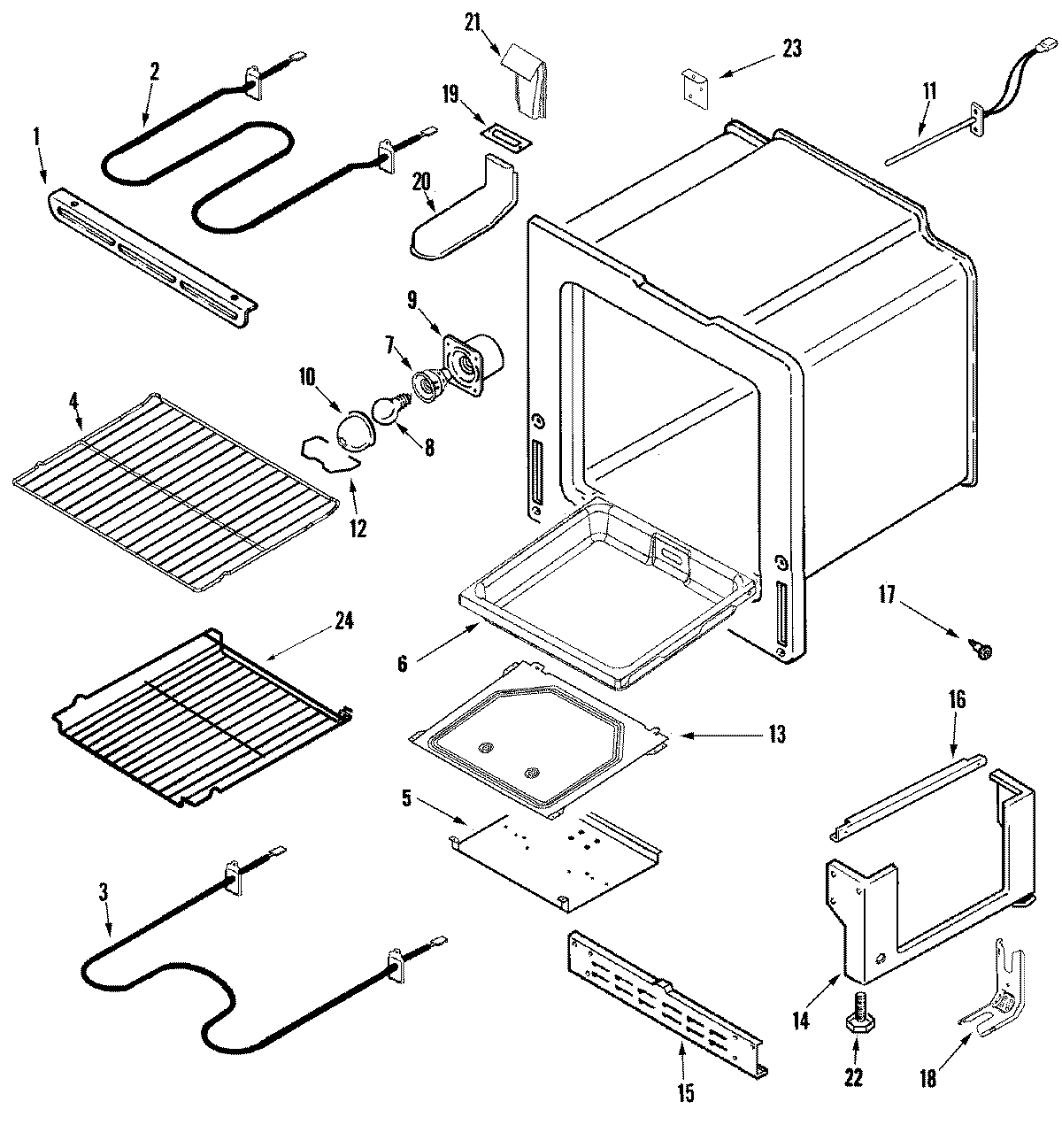

AER5712BAZ 04 – OVEN/BASE

Products

Position	Product
1	SUPPORT, BROIL ELEMENT
2	WPW10310249 Whirlpool Broil Element
3	WP7406P438-60 Whirlpool Bake Element
4	WPW10282492 Whirlpool Oven Rack
5	MAY 74006591
6	BOTTOM, DUTCH OVEN
7	MAY 74003388
8	RANGE ONLY 40W 120V APPL BULB
9	MAY 74003387
10	MAY 74003389
11	12001656 Whirlpool Range Oven Temperature Sensor
12	MAY 74003391
13	RETAINER, INSULATION (BOTTOM)
14	MAY 74006325
15	MAY 4020F001-80
16	RUNNER, DRAWER
17	SHAFT, STORAGE DRAWER ROLLER
17	WP74004078 Whirlpool Door Roller
17	74005230 Whirlpool Oven Lock Nut (8-32)
18	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
18	WP7101P485-60 Whirlpool Anchor Tip
19	MAY 74003285
20	MAY 74003394
20	SCREEN, SMOKE ELIMINATOR
21	SCREW
21	MAY 71001394
21	MAY 74009987
22	W11665456 Whirlpool Range Level Foot
23	MAY 74009988
24	MAY 74008410
