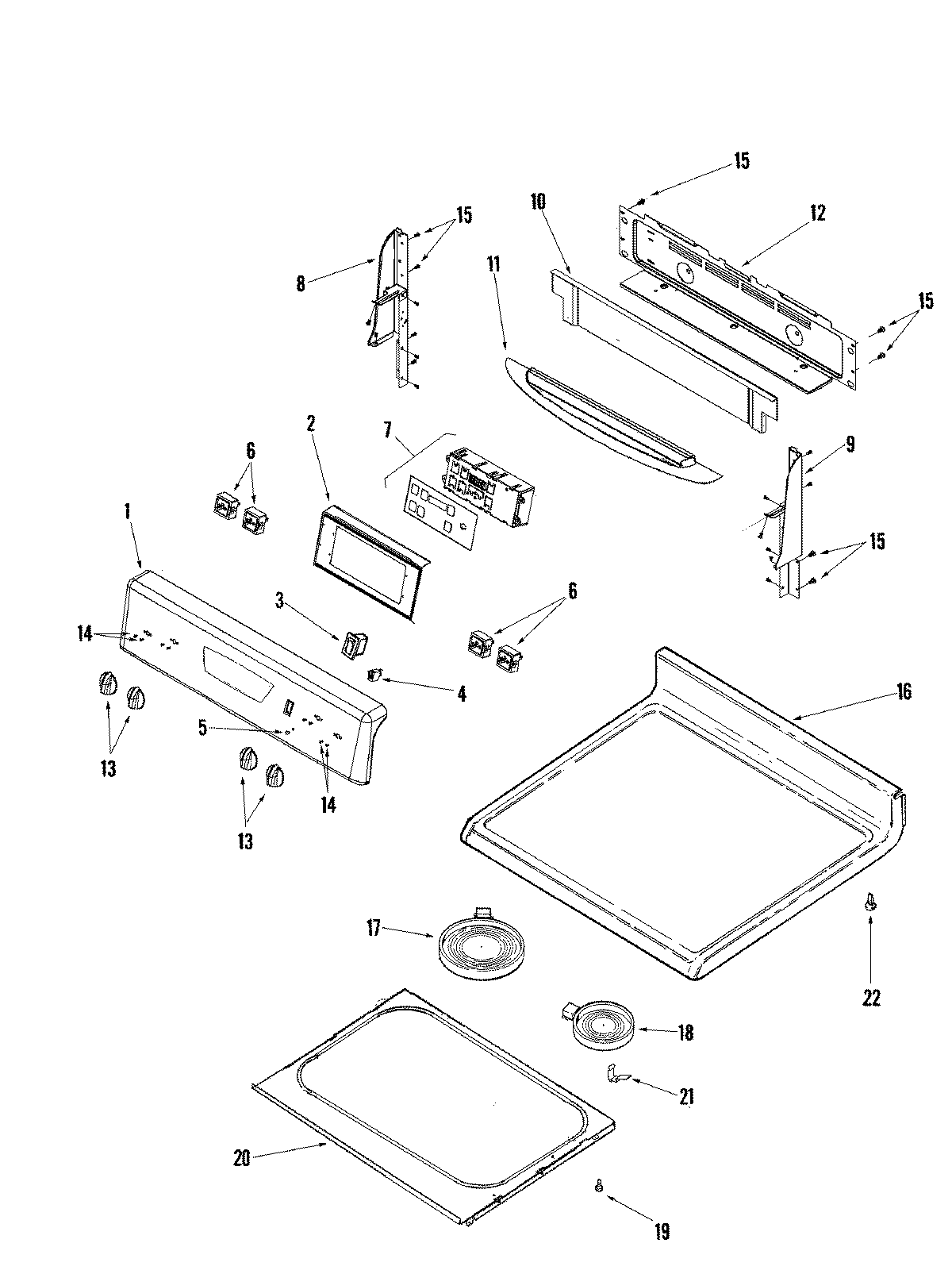

AER5715QAS 03 – CONTROL PANEL/TOP ASSEMBLY

AER5715QAS 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AER5715QAS 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74008672
2MAY 74008716
3SWITCH, ROCKER (BLK)
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
7WP5701M719-60 Whirlpool Electronic Control Board
7MAY 74008634
8MAY 74008719
9MAY 74008722
10MAY 74009205
10MAY 74008725
11MAY 74008891
11MAY 74009202
12MAY 74008730
12MAY 74008836
12MAY 74006536
13MAY 74008731
14SCREW
16MAY 74008528
17W10823696 Whirlpool Radiant Surface Element
18W10823711 Whirlpool Surface Element Left Front and Right Rear
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
