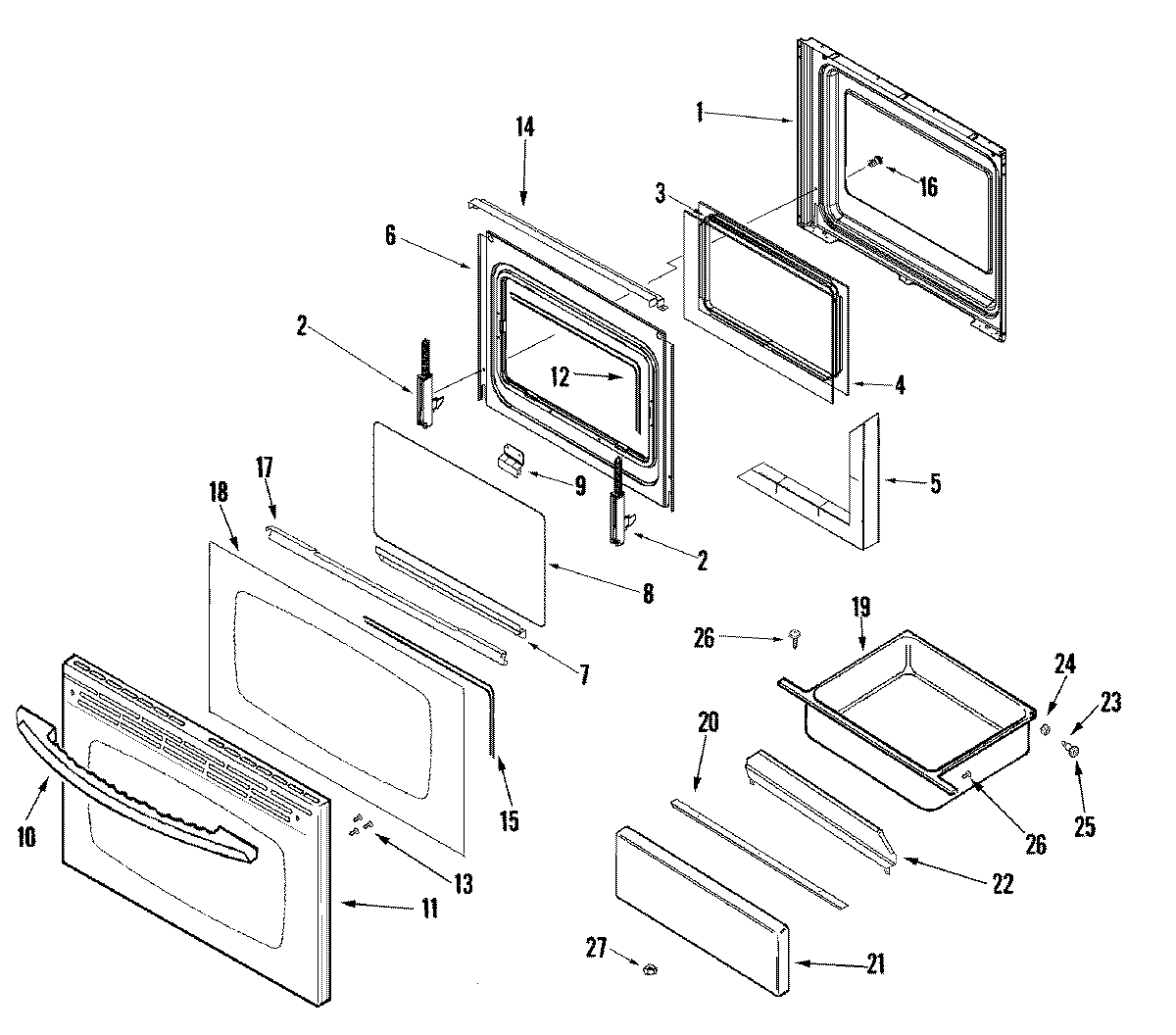

AER5715QAS 04 – DOOR/DRAWER (STL)

AER5715QAS 04 – DOOR/DRAWER (STL)

Written by

in

AER5715QAS 04 – DOOR/DRAWER (STL)

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74008745
8GLASS, DOOR
9Trim, Door Top (Black)
10MAY 74008324
11MAY 74008913
12Gasket, Window
13WP74006515 Whirlpool Washer Screw
14Baffel, Door
15WP74009029 Whirlpool Door Gasket
16SCREW (10-24X5/16-NI)
17Bracket, Glass
18MAY 74008855
19MAY 74008337
20MAY 74008909
2112002306 Whirlpool Air Conditioner Drawer Panel Kit
21MAY 74008912
22WP3604F390-51 Whirlpool Shield
22MAY 74009105
22SCREW
23SHAFT, STORAGE DRAWER ROLLER
24WP488130 Whirlpool Air Conditioner Nut
25WP74004078 Whirlpool Door Roller
26WP7101P072-60 Whirlpool Screw
27WPW10131078 Whirlpool Nut Assembly
