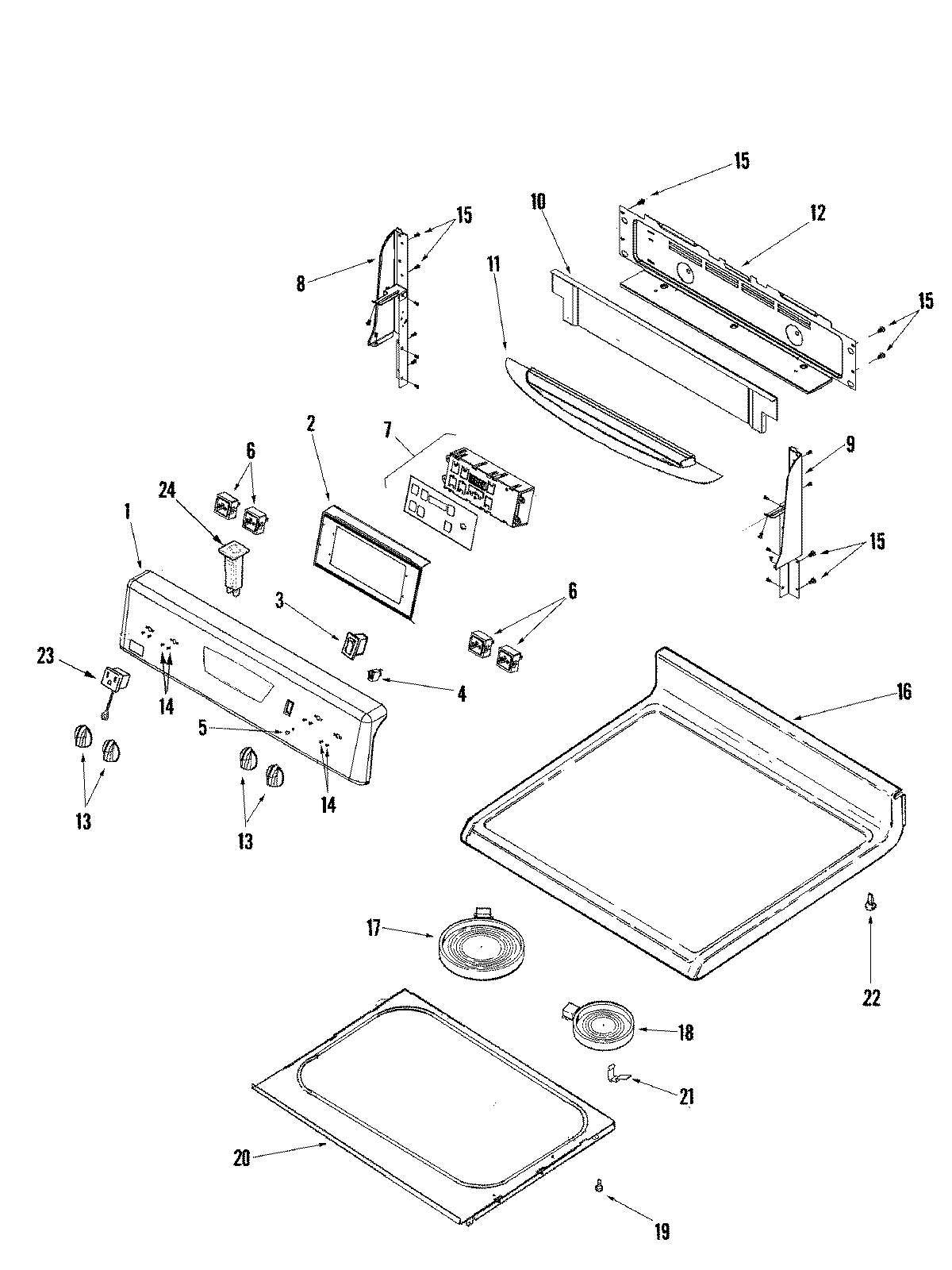

AER5715QCS 03 – CONTROL PANEL/TOP ASSEMBLY

AER5715QCS 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AER5715QCS 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009323
2MAY 74008716
3SWITCH, ROCKER (BLK)
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7WP5701M719-60 Whirlpool Electronic Control Board
8End Cap (Right Black)
9End Cap (Left Black)
10MAY 74009205
11MAY 74009202
12MAY 74008730
12MAY 74008836
13MAY 74008731
14SCREW
16MAY 74008528
17W10823696 Whirlpool Radiant Surface Element
18W10823711 Whirlpool Surface Element Left Front and Right Rear
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23MAY 71003068
24MAY 71003070
