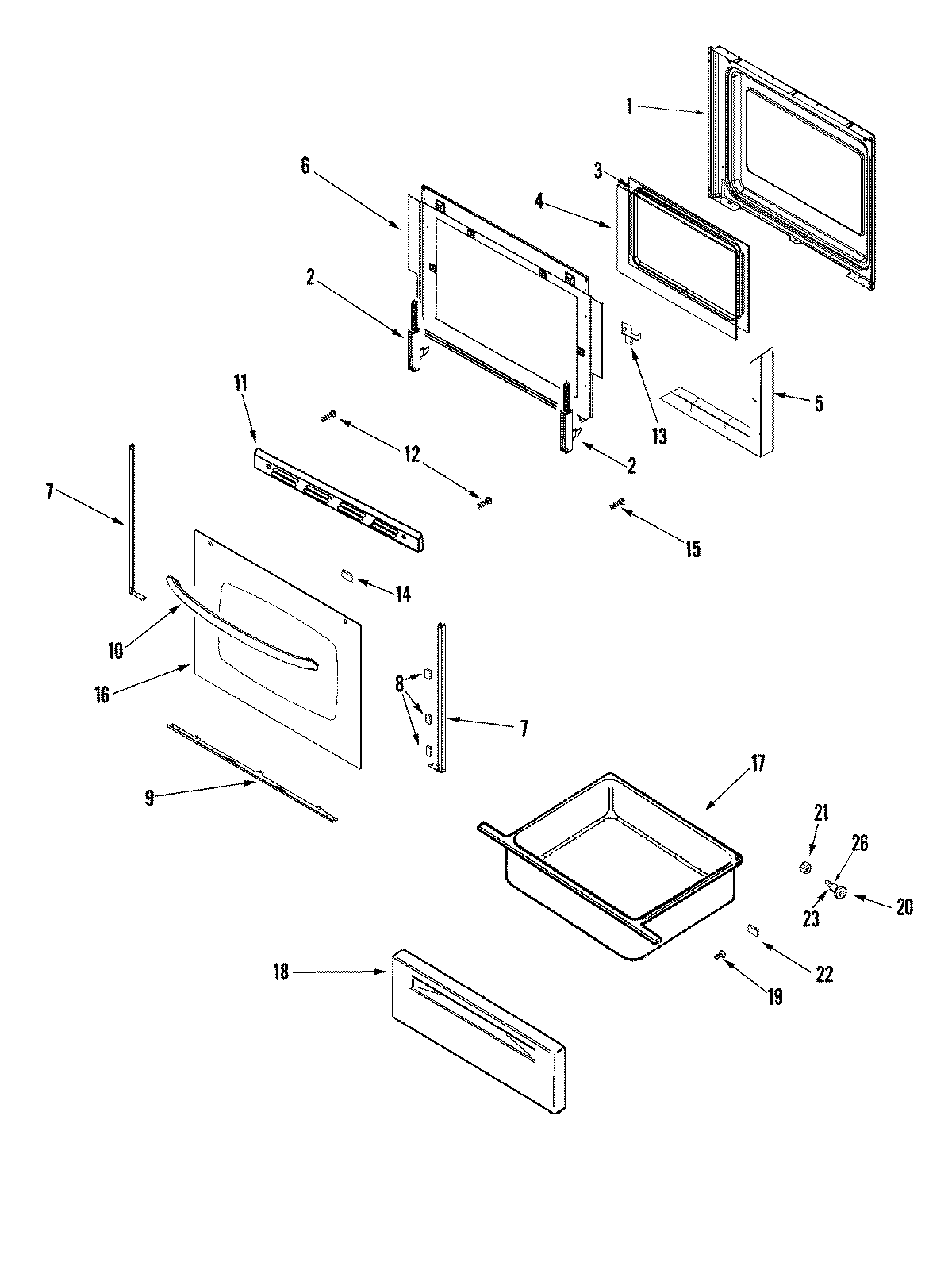

AER5715RCB 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5MAY 74010564
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74010560
8WP74009025 Whirlpool Double Sided Tape
9TRIM, BOTTOM (BLK)
10HANDLE, DOOR (BLK)
11WP98008545 Whirlpool Screw
11MAY 74008890
12WP74006515 Whirlpool Washer Screw
13BRACKET, DOOR HANDLE (RT)
13BRACKET, DOOR HANDLE (LT)
14WP74004224 Whirlpool Tape
15SCREW (10-24X5/16-NI)
16TAPE, FOIL (3“ WIDE)
16Glass, Door (Black (Order Item 15 When Replacing Door Glass))
17DRAWER, STORAGE
17MAY 3405F037-80
18MAY W10163038
18Panel, Drawer (Black)
18PLATE, PANEL MTG.
18WPW10131078 Whirlpool Nut Assembly
19SCREW
20WP74004078 Whirlpool Door Roller
21WP488130 Whirlpool Air Conditioner Nut
22WP74005546 Whirlpool RU Spacer
23SHAFT, STORAGE DRAWER ROLLER
