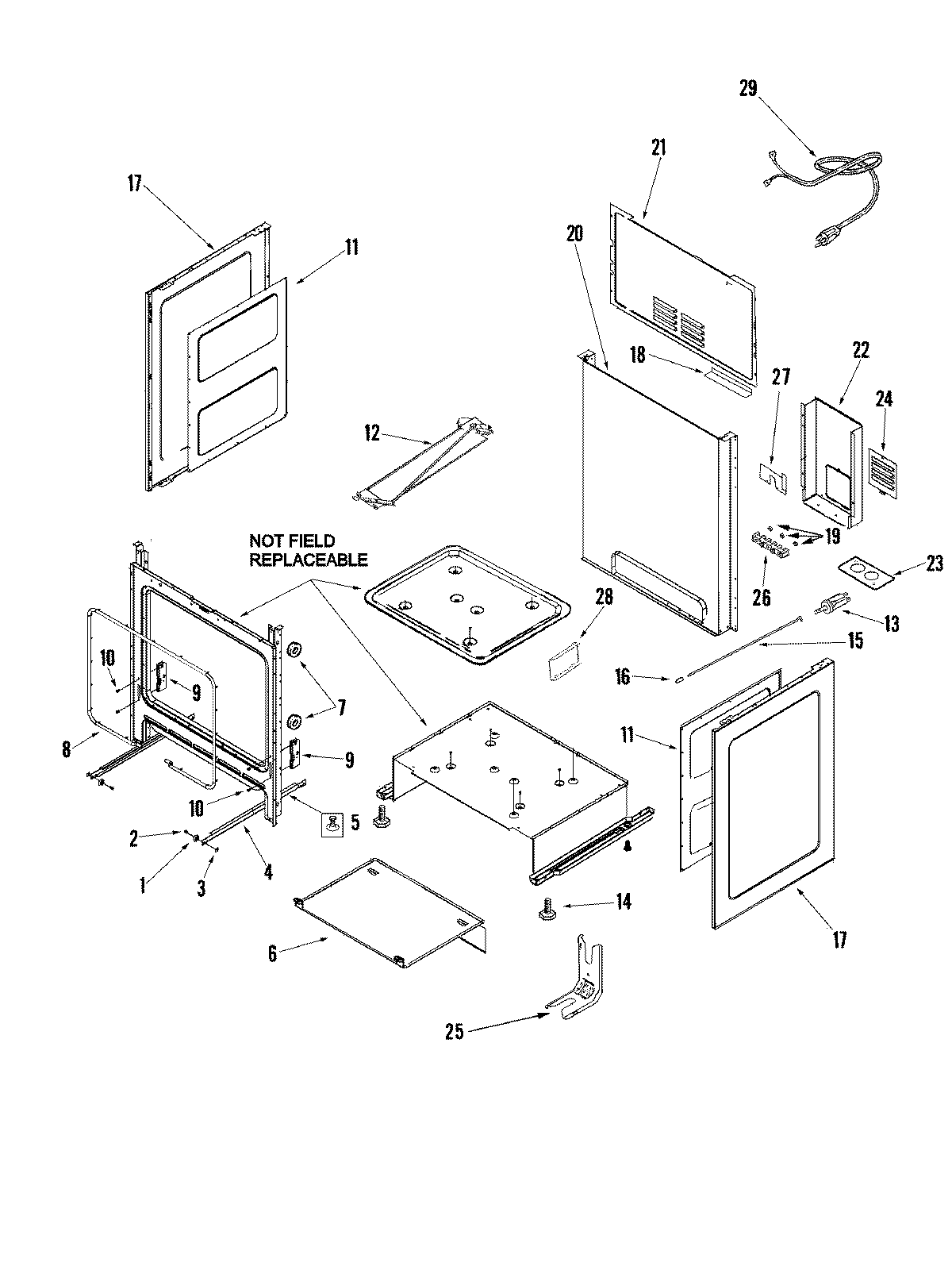

AER5715RCS 01 – CABINET

AER5715RCS 01 – CABINET

Written by

in

AER5715RCS 01 – CABINET

Products

PositionProduct
1WP74004078 Whirlpool Door Roller
2SHAFT, STORAGE DRAWER ROLLER
374005230 Whirlpool Oven Lock Nut (8-32)
4RUNNER, SERVICE DRAWER
5MAY 74008688
6MAY 74008689
7SCREW W/SHOULDER (No.8)
7SPACER, SIDE PANEL
8W11562931 Whirlpool Door Gasket
9WP74010551 Whirlpool Receiver
10WP4159193 Whirlpool Screw
11MAY 74008701
11MAY 7002P494-60
11MAY 3804F316-51
12MAY 74008702
12MAY 740011896
12MAY 8002P104-60
1274003975 Whirlpool Screw P1 (8ABX3/8-BLK)
1374008703 Whirlpool Door Switch
13MAY 74008704
1474008835 Whirlpool Clip Retainer
14W11665456 Whirlpool Range Level Foot
15SLEEVE, ROD TUBE
15MAY 74008706
1674008707 Whirlpool Oven Bumper
17MAY 74008710
18SCREW
18BOTTOM, WIRE COVER
19WP7103P027-60 Whirlpool Nut
20MAY 74009675
21COVER, MAIN WIRE (ELE)
22MAY 74008760
23PLATE, CONDUIT REINFORCEMENT
24MAY 74008340
25WP7101P485-60 Whirlpool Anchor Tip
25WP3801F656-51 Whirlpool Range Anti-Tip Bracket
26WPW10245259 Whirlpool Terminal Block
27INSULATOR, POWER CORD
28BRACKET, OVEN SUPPORT
29MAY 7402P050-60
