AER5715RCS 04 – DOOR/DRAWER (STL)

AER5715RCS 04 – DOOR/DRAWER (STL)

Written by

in

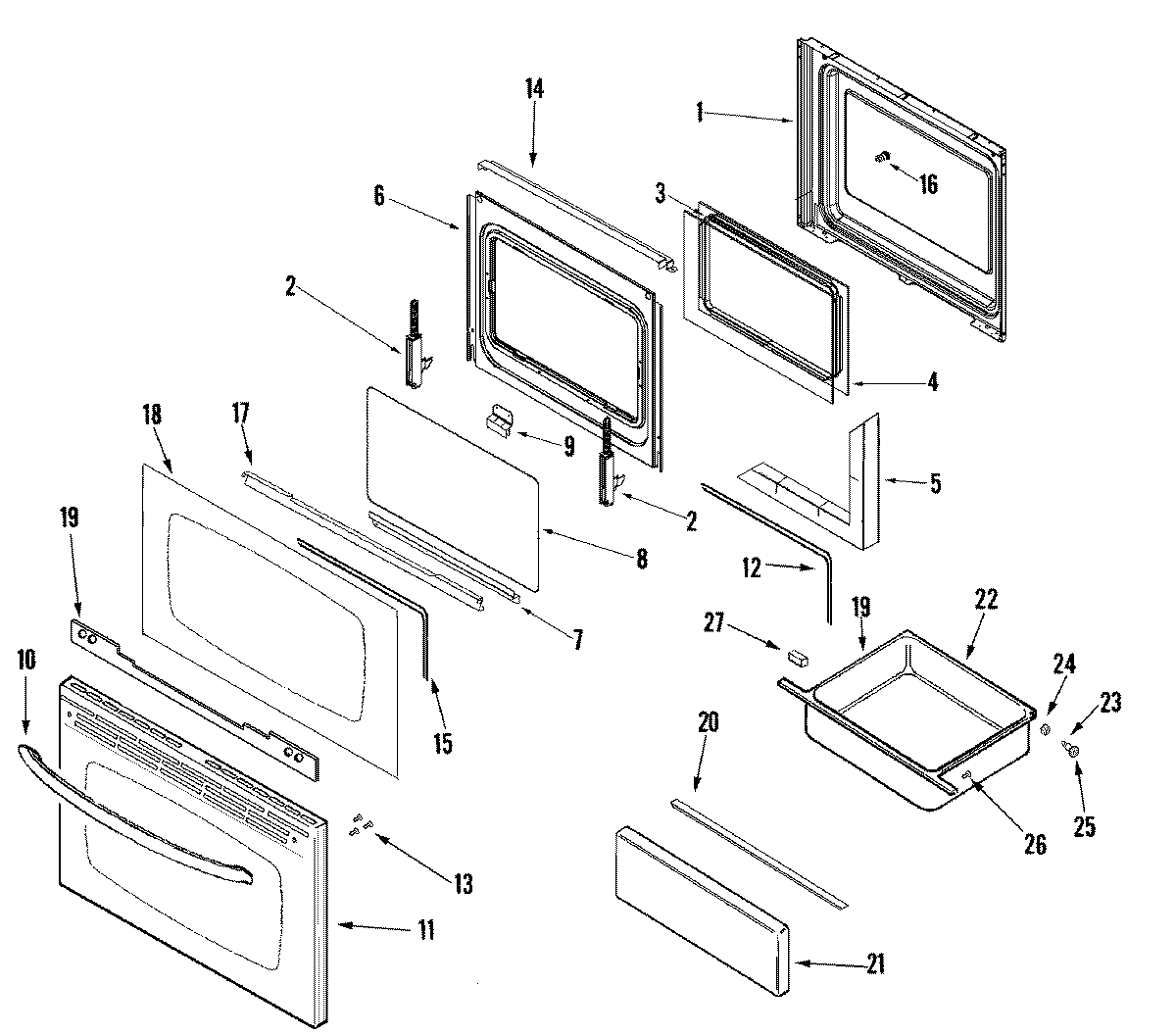

AER5715RCS 04 – DOOR/DRAWER (STL)

Products

PositionProduct
1MAY 74008926
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74008745
8GLASS, DOOR
9Trim, Door Top (Black)
10MAY 74010924
11MAY 74008913
11SCREW
12Gasket, Window
14Baffel, Door
15WP74009029 Whirlpool Door Gasket
16SCREW (10-24X5/16-NI)
17Bracket, Glass
18MAY 74008855
19MAY 74010563
20HANDLE, DRAWER
20WP74006515 Whirlpool Washer Screw
20MAY 74008909
2112002306 Whirlpool Air Conditioner Drawer Panel Kit
21PLATE, PANEL MTG.
21PANEL, DRAWER (STL-ELEC)
22MAY 3405F037-80
22MAY 74008337
23SHAFT, STORAGE DRAWER ROLLER
24WP488130 Whirlpool Air Conditioner Nut
25WP74004078 Whirlpool Door Roller
27WP74005546 Whirlpool RU Spacer
