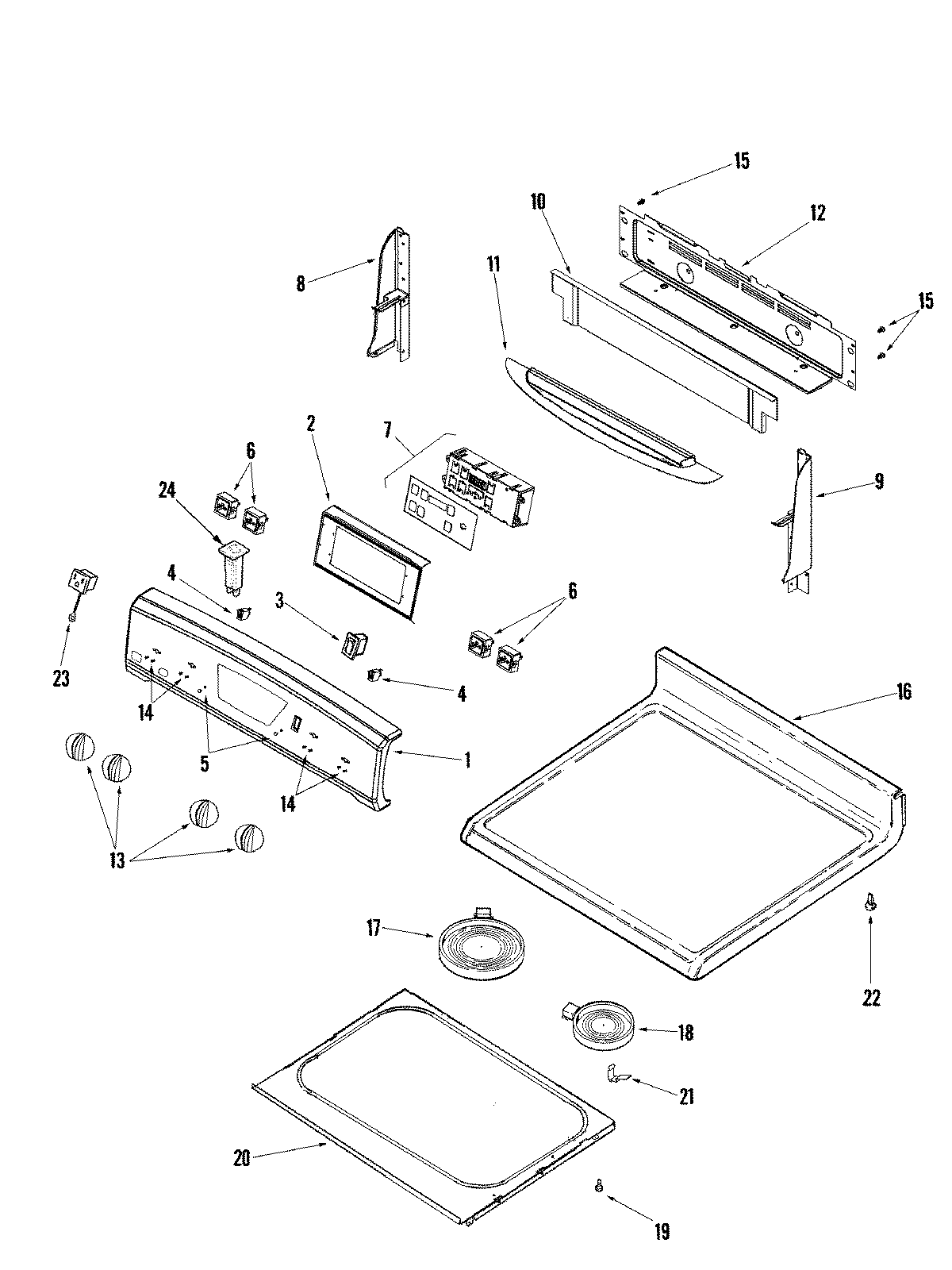

AER5715RCW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009325
2	MAY 74008716
3	74008717 Whirlpool White Rocker Switch
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP7403P239-60 Whirlpool Oven Switch
7	WP5701M719-60 Whirlpool Electronic Control Board
8	End Cap (Right White)
9	End Cap (Left White)
10	MAY 74009444
11	MAY 74009203
12	MAY 7002P361-60
12	MAY 74008836
12	MAY 74010983
14	SCREW
16	MAY 74008530
17	W10823696 Whirlpool Radiant Surface Element
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	MAY 71003069
24	MAY 74009322
