AER5715RCW 04 – DOOR/DRAWER

AER5715RCW 04 – DOOR/DRAWER

Written by

in

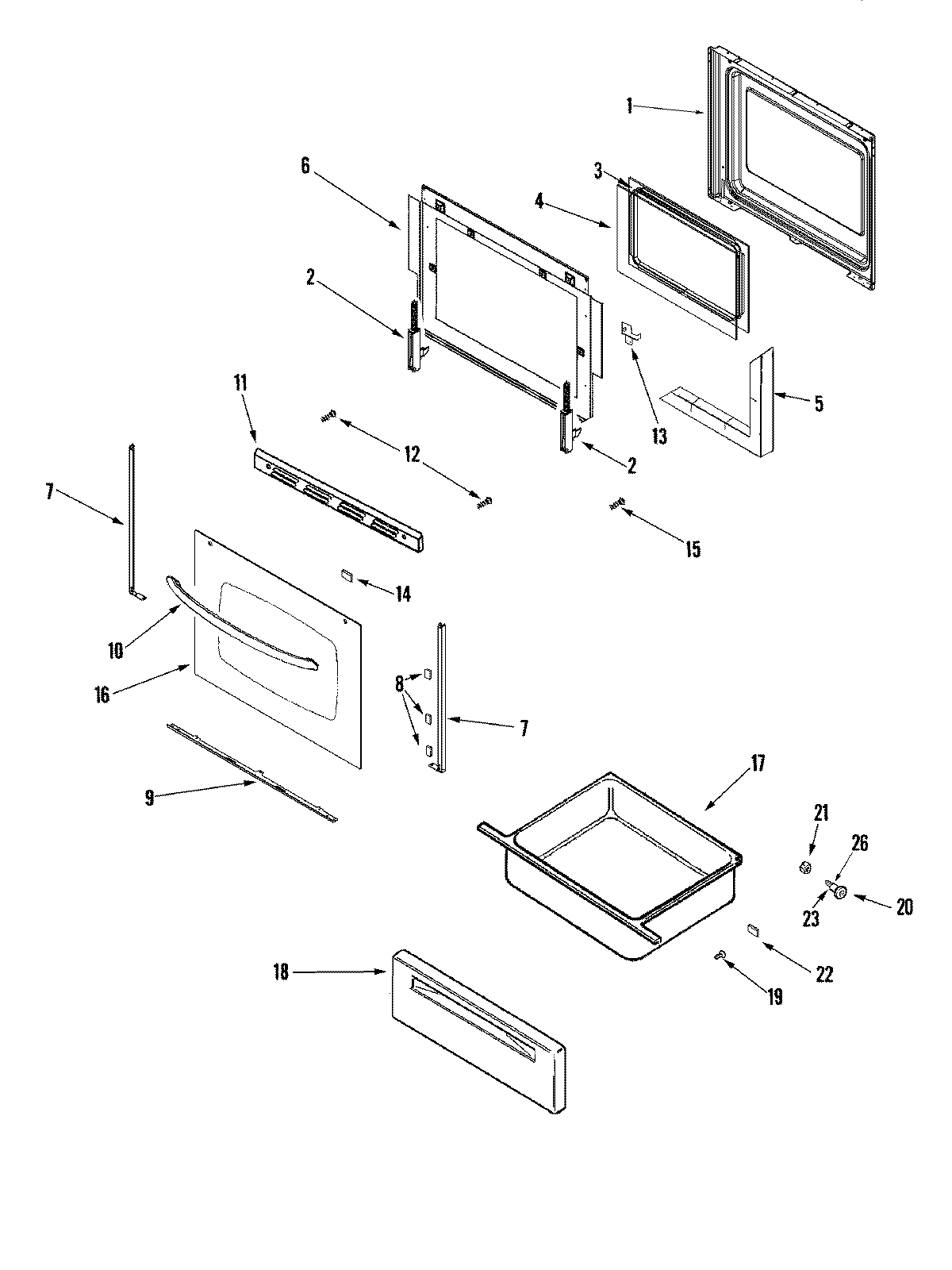

AER5715RCW 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5MAY 74010564
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74010561
8WP74009014 Whirlpool Double Tape
9WP3608F092-71 Whirlpool Bottom Trim
10HANDLE, DOOR (WHT)
11WP98008544 Whirlpool Screw Assembly
11MAY 74008747
12WP74006515 Whirlpool Washer Screw
13BRACKET, DOOR HANDLE (RT)
13BRACKET, DOOR HANDLE (LT)
14WP74004224 Whirlpool Tape
15SCREW (10-24X5/16-NI)
16TAPE, FOIL (3“ WIDE)
16Glass, Door (White)
17WP3405F037-80 Whirlpool Utility Drawer
17MAY 3405F037-80
18MAY W10163040
18Panel, Drawer (White)
18PLATE, PANEL MTG.
18WPW10131078 Whirlpool Nut Assembly
19SCREW
20WP74004078 Whirlpool Door Roller
21WP488130 Whirlpool Air Conditioner Nut
22WP74005546 Whirlpool RU Spacer
23SHAFT, STORAGE DRAWER ROLLER
