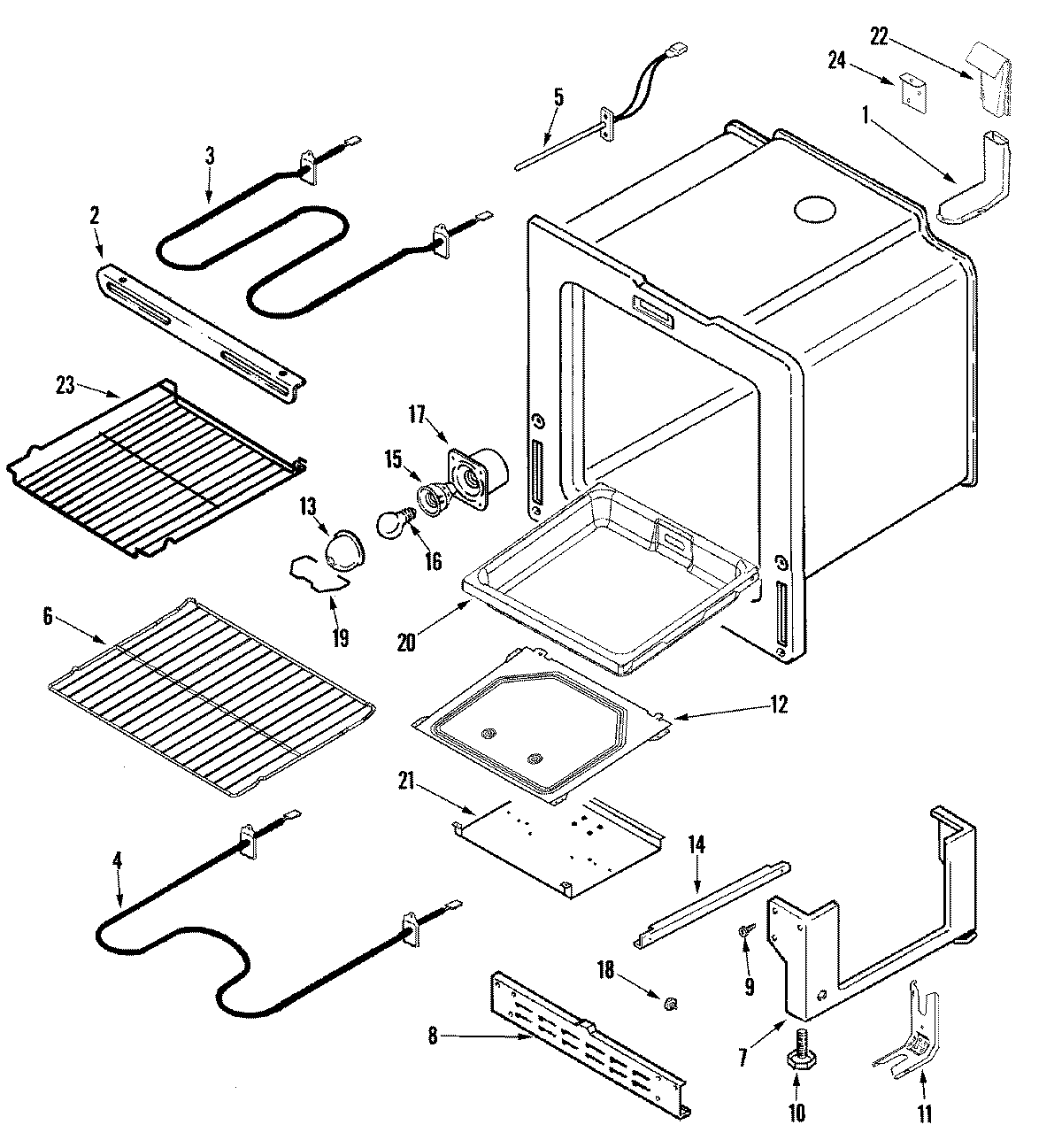

AER5722BAB 04 – OVEN/BASE

Products

Position	Product
1	MAY 74003394
2	SUPPORT, BROIL ELEMENT
3	WPW10310249 Whirlpool Broil Element
4	WP7406P438-60 Whirlpool Bake Element
5	12001656 Whirlpool Range Oven Temperature Sensor
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74006325
8	MAY 4020F001-80
10	W11665456 Whirlpool Range Level Foot
11	WP7101P485-60 Whirlpool Anchor Tip
11	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12	RETAINER, INSULATION (BOTTOM)
13	MAY 74003389
14	LINING, DOOR
14	WP74005546 Whirlpool RU Spacer
14	SCREW
14	RUNNER, DRAWER
15	GASKT-DOOR OVEN
15	MAY 74003387
16	FRAME, GLASS
16	3801F886-51 Whirlpool Mounting Bracket
16	SCREW, 8 X 1/2
16	RANGE ONLY 40W 120V APPL BULB
17	WP98008545 Whirlpool Screw
17	MAY 74003388
18	MAY 74009685
20	WPW10131078 Whirlpool Nut Assembly
21	MAY 74008337
25	WP488130 Whirlpool Air Conditioner Nut
