AER5722BAQ 01 – BODY

AER5722BAQ 01 – BODY

Written by

in

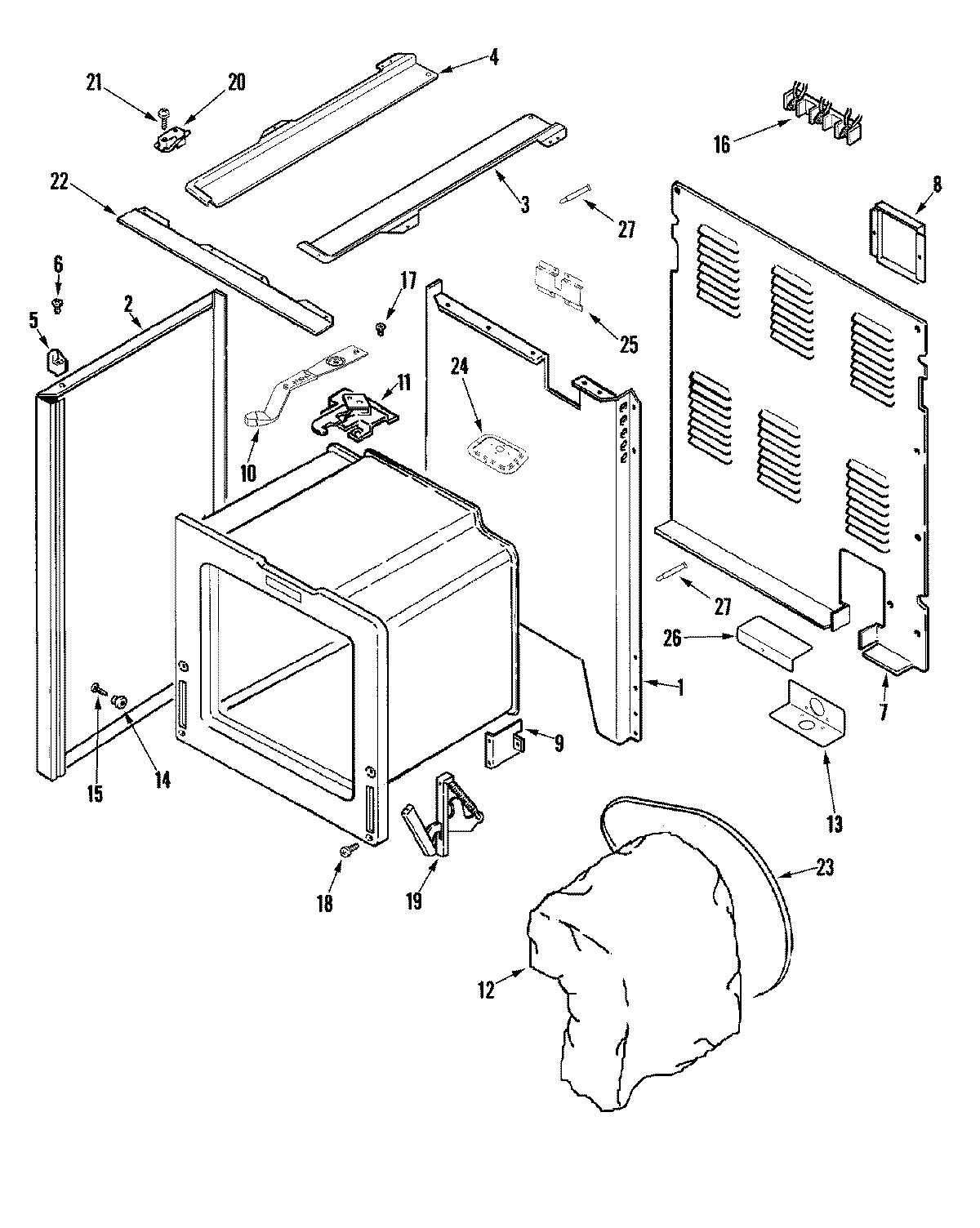

AER5722BAQ 01 – BODY

Products

PositionProduct
1MAY 74011304
2MAY 74004965
3MAY 74003378
4MAY 74003379
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6SCREW (8BX3/8-NI)
7MAY 74009744
8MAY 74010256
9SUPPORT,OVEN REAR
1174003975 Whirlpool Screw P1 (8ABX3/8-BLK)
11SCREW
11MAY 74009764
12MAY 74009201
12WP74010942 Whirlpool Insulation
13SCREW, GROUND (GRN)
13W10190166 Whirlpool Service Bracket
13MAY 71001394
14MAY 8004P024-60
15W11693756 Whirlpool Screw Assembly
16WP7103P027-60 Whirlpool Nut
16SCREW (10ABX1.0-ZN)
16WPW10245259 Whirlpool Terminal Block
17SCREW, LEVER
18SCREW (10-24X5/16-NI)
1974011142 Whirlpool Stove Range Oven Door Hinge and Spring
19HINGE-OVEN DOOR
20MAY 74009591
21MAY 7101P330-60
22MAY 74003384
23MAY 74003385
24MAY 74007476
24MAY 74011044
25MAY 74004532
26MAY 74011046
27MAY 7101P337-60
