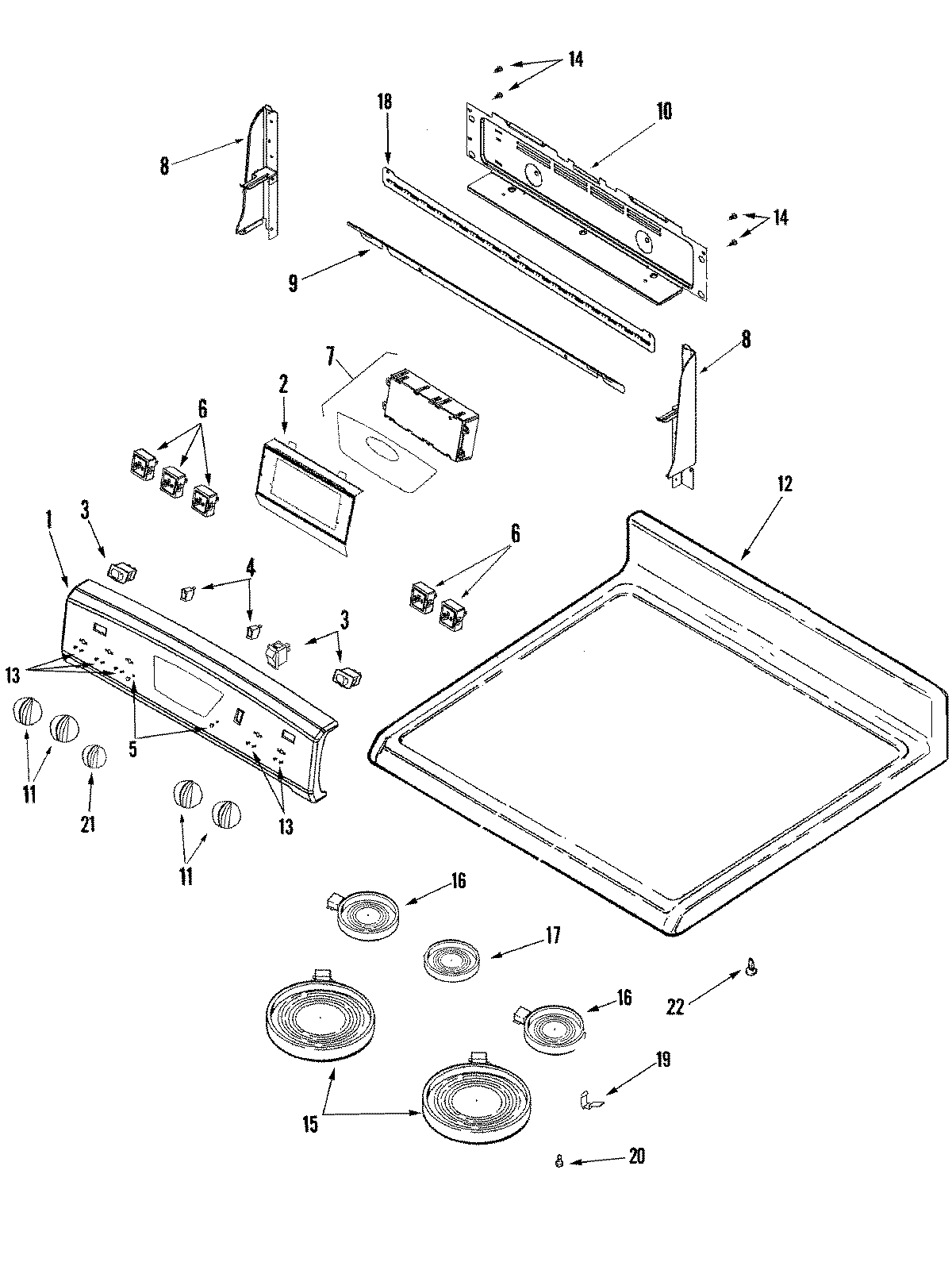

AER5722BAQ 02 – CONTROL PANEL/TOP ASSEMBLY

AER5722BAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AER5722BAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009112
2MAY 74008716
374008765 Whirlpool Range Oven Rocker Switch Bisque
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
674011070 Whirlpool Infinite Switch
6MAY 74006589
7MAY 74010294
8MAY 74010214
8WP74003976 Whirlpool Screw
8MAY 74010213
8WP74009541 Whirlpool Screw Assembly
9MAY 74009978
10WP90767 Whirlpool Screw
10MAY 74010983
11MAY 74008732
12MAY 74011406
13SCREW
14SCREW (6ABX.25-ZN)
15MAY 74009898
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17MAY 74011676
17MAY 74008571
18MAY 74009701
198004P093-60 Whirlpool Support C
20MAY 71001394
20SCREW (10ABX1.0-ZN)
21MAY 74008910
22W11189172 Whirlpool Glide Drawer
