AER5722BAQ 04 – OVEN/BASE

AER5722BAQ 04 – OVEN/BASE

Written by

in

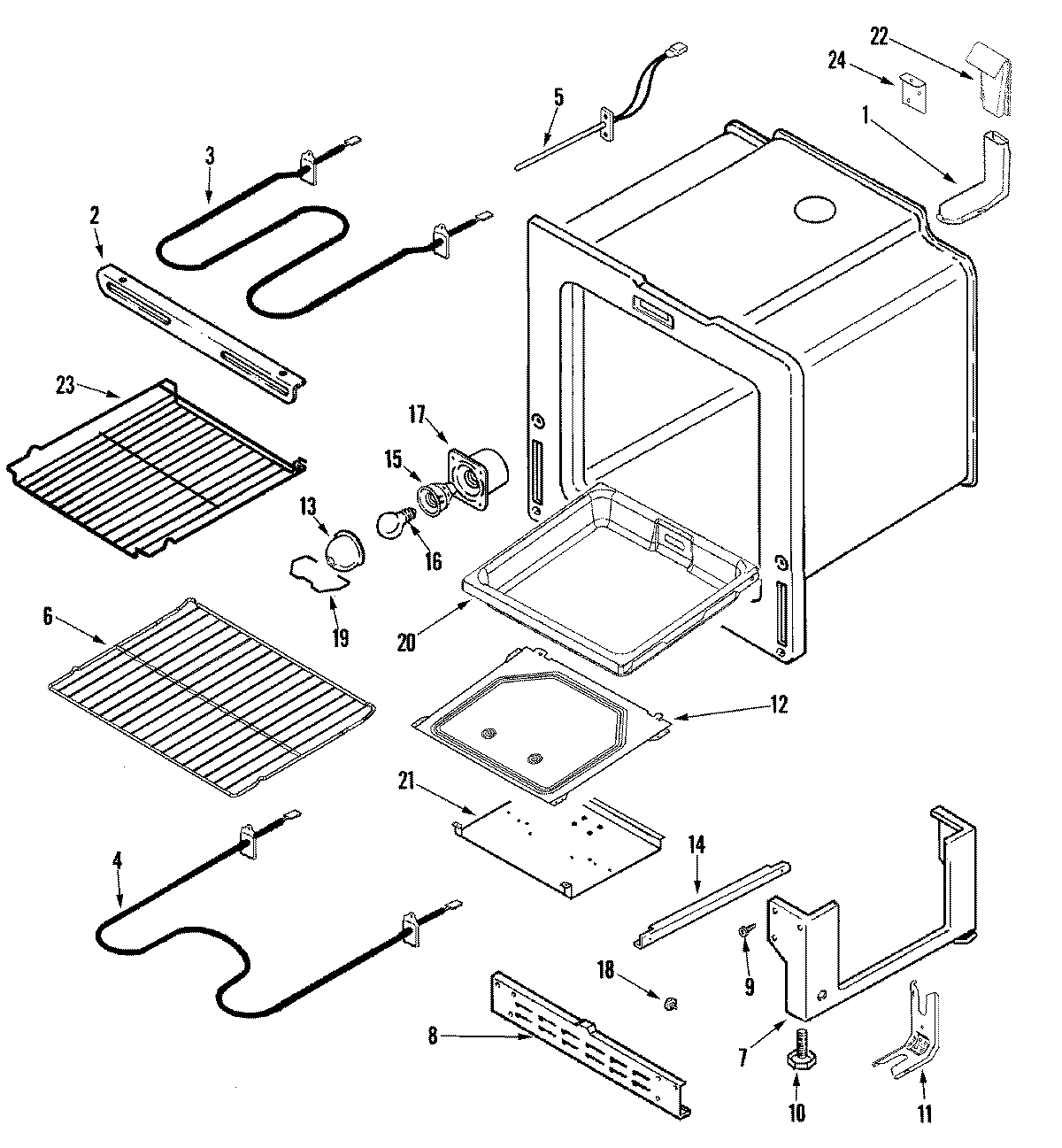

AER5722BAQ 04 – OVEN/BASE

Products

PositionProduct
1MAY 74003394
2SUPPORT, BROIL ELEMENT
3WPW10310249 Whirlpool Broil Element
4WP7406P438-60 Whirlpool Bake Element
512001656 Whirlpool Range Oven Temperature Sensor
6WPW10282492 Whirlpool Oven Rack
7MAY 74006325
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP3801F656-51 Whirlpool Range Anti-Tip Bracket
11WP7101P485-60 Whirlpool Anchor Tip
12RETAINER, INSULATION (BOTTOM)
13MAY 74003389
14RUNNER, DRAWER
15MAY 74003387
16RANGE ONLY 40W 120V APPL BULB
17MAY 74003388
18SHAFT, STORAGE DRAWER ROLLER
1874005230 Whirlpool Oven Lock Nut (8-32)
19MAY 74003391
20BOTTOM, DUTCH OVEN
21MAY 74006591
22MAY 74009987
22SPACER, RUBBER (BLK-SQUARE)
22SCREEN, SMOKE ELIMINATOR
22SCREW
23WP74004078 Whirlpool Door Roller
25WP488130 Whirlpool Air Conditioner Nut
