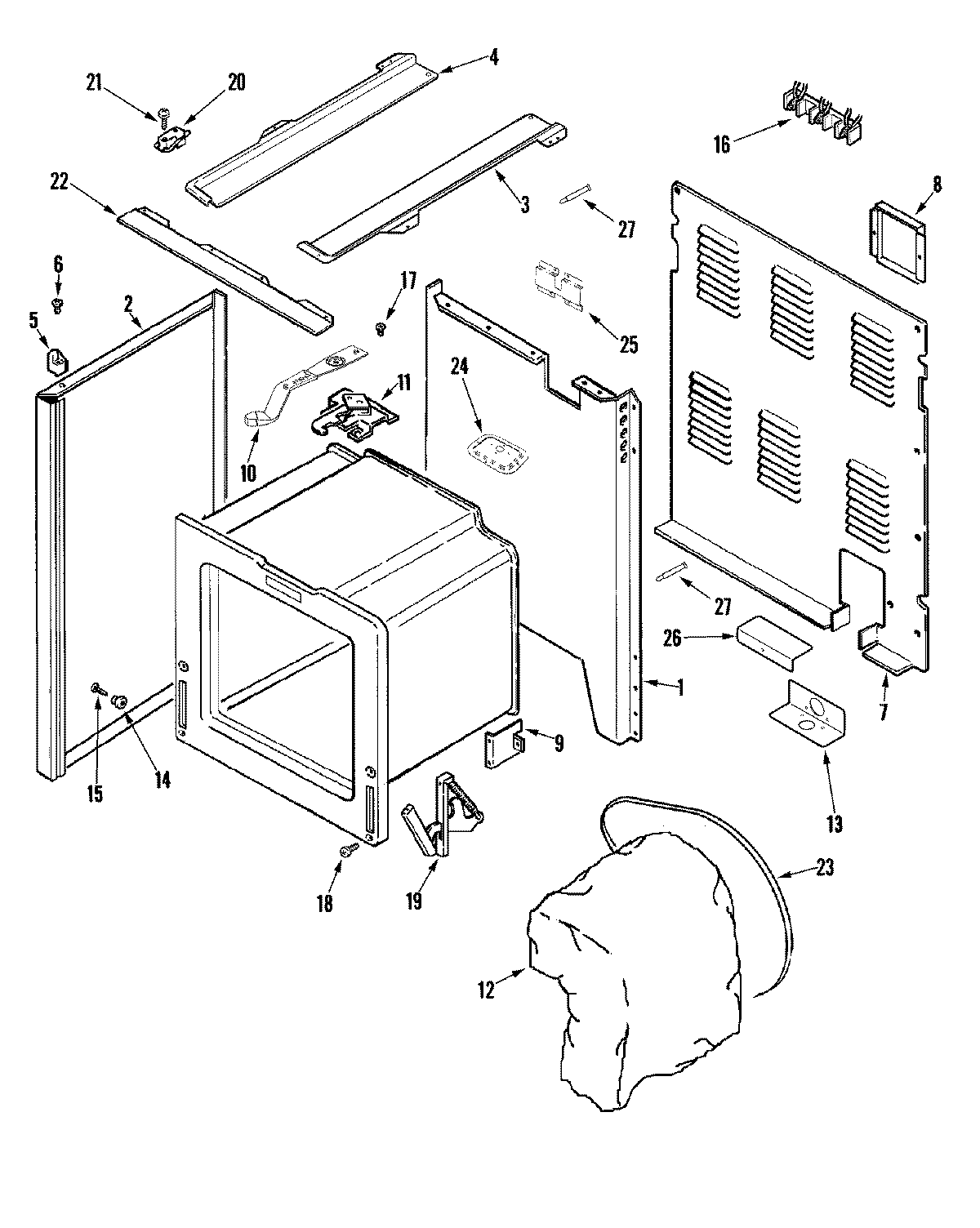

AER5722BAS 01 – BODY

Products

Position	Product
1	MAY 74011304
2	MAY 74003283
3	MAY 74003378
4	MAY 74003379
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	SCREW (8BX3/8-NI)
7	MAY 74009744
8	MAY 74010256
9	SUPPORT,OVEN REAR
10	MAY 74010244
11	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
11	SCREW
11	MAY 74009764
12	MAY 74009201
12	WP74010942 Whirlpool Insulation
13	MAY 71001394
13	W10190166 Whirlpool Service Bracket
13	SCREW, GROUND (GRN)
14	MAY 8004P024-60
15	W11693756 Whirlpool Screw Assembly
16	SCREW (10ABX1.0-ZN)
16	WP7103P027-60 Whirlpool Nut
16	WPW10245259 Whirlpool Terminal Block
17	SCREW, LEVER
18	SCREW (10-24X5/16-NI)
19	HINGE-OVEN DOOR
20	MAY 74009591
21	MAY 7101P330-60
22	MAY 74003384
23	MAY 74003385
24	MAY 74007476
24	MAY 74011044
25	MAY 74004532
26	MAY 74011046
27	MAY 7101P337-60
